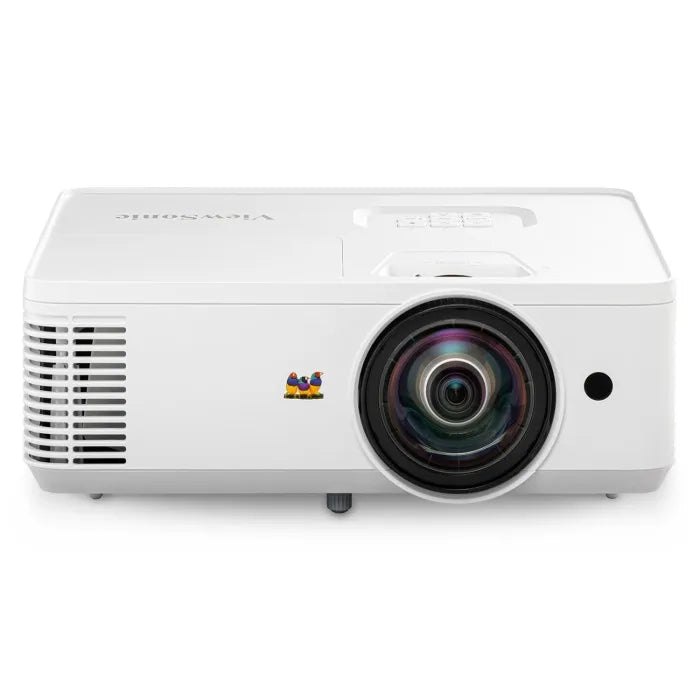

ViewSonic PS502W 4,000 ANSI Lumens WXGA Short Throw DLP Projector

Product Overview

The ViewSonic PS502W is a 4,000 ANSI lumen WXGA short-throw DLP projector designed for classrooms, training rooms, and small conference rooms where installation depth is limited and shadow-free presenter interaction is required. The 0.52:1 throw ratio delivers a 100" image from just 4.5 feet, placing the unit close to the screen and eliminating the presenter shadow problem endemic to standard-throw projectors. SuperColor technology, 15,000:1 dynamic contrast, and a 16W integrated speaker make it a complete, low-complexity solution for education and corporate training environments.

Product Description

The PS502W uses a DLP lamp-based engine with a fixed short-throw lens at 0.52:1, which means a 100" WXGA image requires only 4.5 feet of throw distance. This is the defining feature for wall-proximate ceiling mount installations in classrooms and training rooms where standard-throw projectors would require positioning over the first row of seating. The 4,000 ANSI lumen output handles most ambient-lit classroom environments. SuperColor technology delivers accurate, wide-gamut colors important for educational content including charts, maps, and scientific imagery. Dynamic contrast of 15,000:1 produces adequate depth for mixed presentation and video use. The lamp-based engine has a 12,000-hour Dynamic Eco rated life — shorter than laser alternatives but at a lower upfront cost point. Vertical keystone ±19° with auto keystone allows quick distortion correction without manual adjustment. Dual HDMI 1.4 inputs support simultaneous connection of two sources. The USB-A port at 5V/1.5A powers wireless display dongles for cable-free laptop presentations. The 16W speaker integrates adequately for classrooms up to medium size. A VGA input and output maintain backward compatibility with legacy AV infrastructure. At 6.3 lbs, ceiling mount handling is straightforward.

Key Features

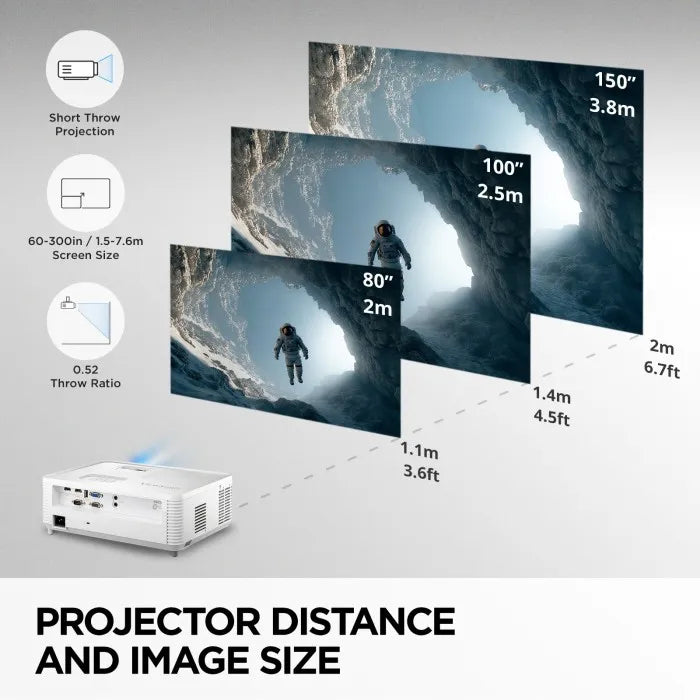

• 0.52:1 Short Throw Ratio — 100" image from 4.5 feet; eliminates presenter shadow in classroom and training room installations.
• 4,000 ANSI Lumens — Usable image quality in ambient-lit educational and corporate environments.
• SuperColor Technology — Wide color gamut for accurate reproduction of educational and presentation content.
• 15,000:1 Dynamic Contrast — Adequate depth for mixed slide and video content.
• Dual HDMI 1.4 + USB-A Dongle Power — Two HDMI sources plus wireless dongle capability without a separate power supply.
• Auto Keystone ±19° — Automatic distortion correction for quick setup without manual adjustment.
• 16W Integrated Speaker — Sufficient audio for medium-sized classrooms and training rooms.
• 12,000-Hour Lamp Life (Dynamic Eco) — Extended lamp life reduces replacement frequency in institutional use.

Typical Applications

• Classrooms and K-12 educational installations
• Corporate training rooms with interactive whiteboard integration
• Small to medium conference rooms
• Government training and briefing spaces
• Houses of worship with limited stage-to-screen depth

Technical Specifications

Frequently Asked Questions
