ViewSonic PA503X 4,000 ANSI Lumens XGA DLP Projector

Product Overview

The ViewSonic PA503X is a 4,000 ANSI lumen XGA DLP projector targeting classrooms, training rooms, and small conference rooms where legacy 4:3 content workflows and VGA source connectivity are still in active use. Native 1024x768 XGA resolution matches the output of legacy presentation laptops and document cameras, while SuperColor technology and 22,000:1 dynamic contrast ensure adequate image quality for mixed text-and-video educational content. The SuperEco lamp mode extends rated life to 15,000 hours and reduces power consumption by up to 70%, making it a cost-effective projection solution for budget-constrained institutional deployments.

Product Description

XGA (1024x768) remains relevant in K-12 and higher education environments where legacy classroom computers, document cameras, and VGA-based AV infrastructure are still commonplace. The PA503X is built around that use case: dual VGA inputs and a composite video input handle the full range of legacy source devices, while the single HDMI 1.4 port covers modern laptop and media player connections. SuperColor technology delivers accurate colors for educational content including maps, scientific imagery, and presentation slides. The 22,000:1 dynamic contrast ratio provides adequate depth for mixed content. SuperEco mode reduces power consumption by up to 70% from the rated 190W, which at the scale of a school district with dozens of projectors represents meaningful energy cost savings. The 15,000-hour SuperEco lamp life reduces service calls; lamp replacements remain straightforward for in-house facilities teams familiar with lamp projector maintenance. Vertical keystone ±40° and 1.1x optical zoom cover standard ceiling-mount geometry adjustments. The cTUVus safety certification is relevant for K-12 procurement processes with specific certification requirements. At 4.9 lbs, it is among the lighter projectors in its class for single-person installation. Quick power-off without a cool-down cycle reduces transition time between uses.

Key Features

• XGA 1024x768 Native Resolution — Matches legacy classroom computers and document cameras without scaling overhead.
• 4,000 ANSI Lumens — Bright enough for ambient-lit classrooms and small conference rooms up to 300".
• SuperEco Mode, 15,000-Hour Lamp / 70% Power Reduction — Lowest operating cost in the PA503 series for budget-constrained institutional deployments.
• 22,000:1 Dynamic Contrast — Adequate depth for text, data, and video content.
• 16ms Input Lag at 120Hz — Smooth playback for fast-moving content and interactive presentations.

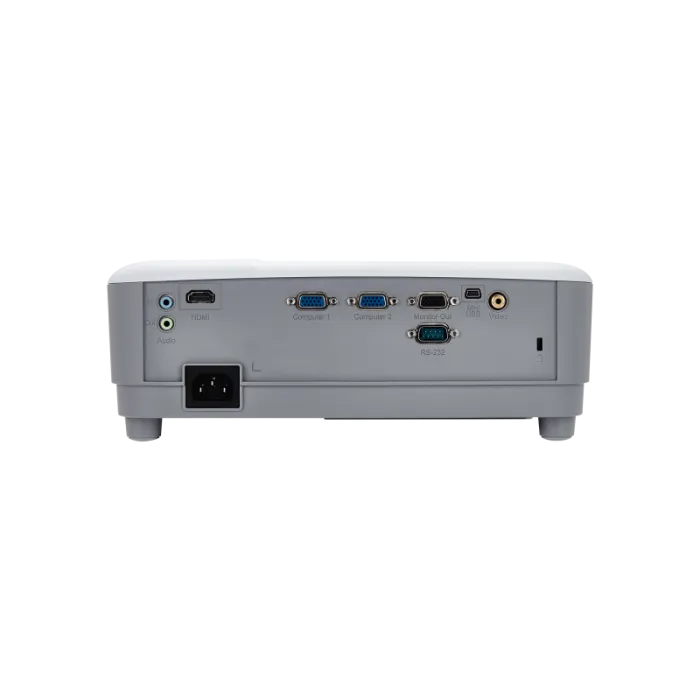

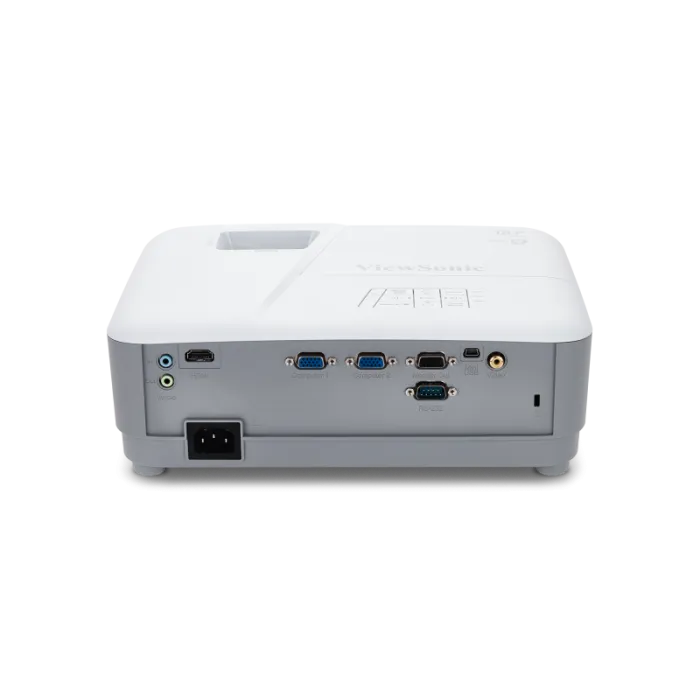

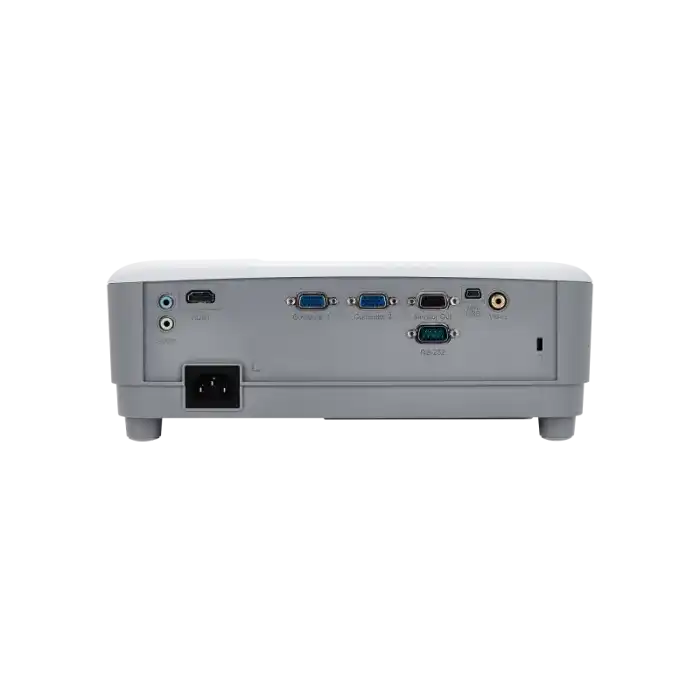

• Dual VGA In + HDMI 1.4 + Composite — Full legacy and modern source connectivity in one unit.
• cTUVus Certified — Safety certification relevant for K-12 and institutional procurement compliance.
• 4.9 lbs Lightweight — Easy single-person ceiling mount installation.

Typical Applications

• K-12 classrooms with legacy VGA AV infrastructure
• University and community college lecture rooms
• Corporate training rooms with mixed legacy and modern source devices
• Government briefing and training spaces
• Small conference rooms with document camera workflows

Technical Specifications
