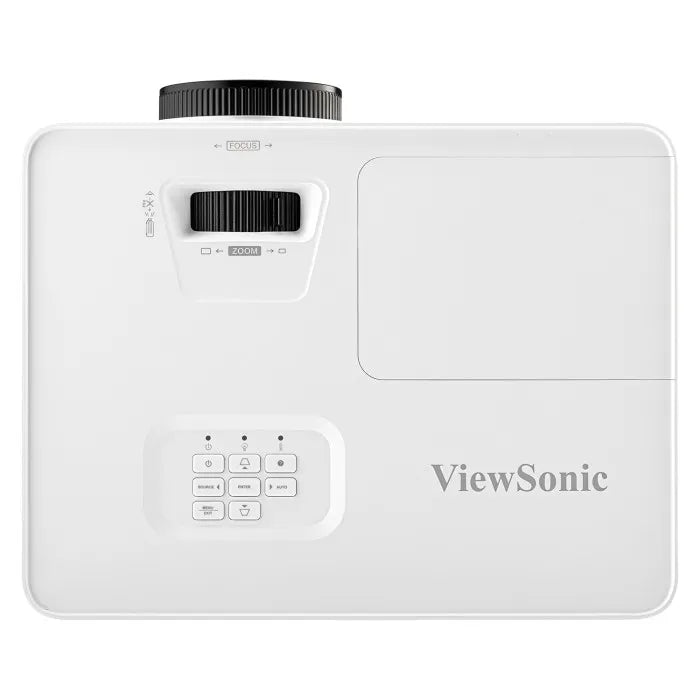

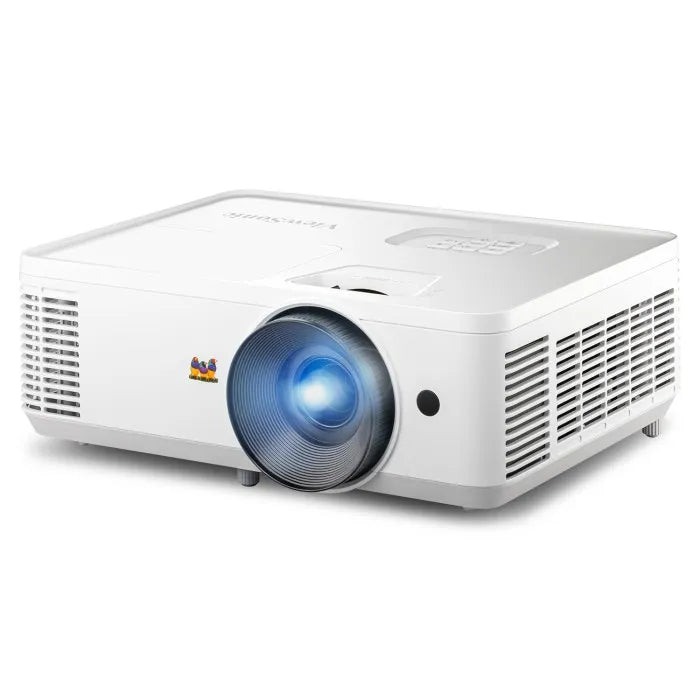

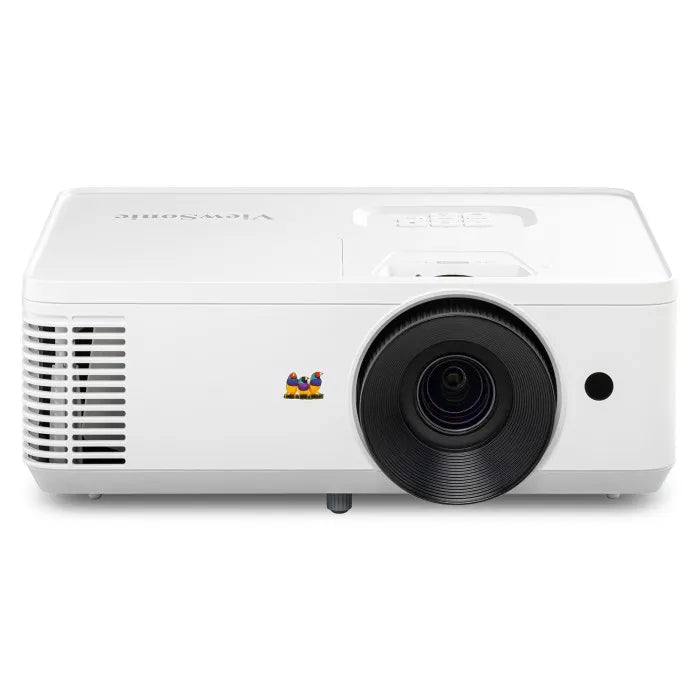

ViewSonic PA503HD 4,000 ANSI Lumens 1080p Home/Business DLP Projector

Product Overview

The ViewSonic PA503HD is a 4,000 ANSI lumen 1080p DLP projector positioned as an entry-level full HD option for small conference rooms, classrooms, and training environments where native 1920x1080 resolution is required at a competitive price point. The 0.65" DMD chip and 22,000:1 dynamic contrast ratio deliver sharp text and adequate depth for mixed presentation and video use, while the 16ms input lag and 120Hz refresh rate keep motion smooth for video-heavy content. Dual HDMI 1.4 inputs and a USB-A dongle power port cover standard commercial connectivity requirements without additional hardware.

Product Description

The PA503HD fills the entry-level 1080p DLP segment for commercial AV buyers who need native Full HD resolution without paying for laser light source or short-throw optics. At 4,000 ANSI lumens with a 22,000:1 dynamic contrast ratio and a 0.65" DMD, it renders 1920x1080 content with the text sharpness and color accuracy expected in corporate and educational AV deployments. The 1.48–1.62:1 throw ratio with 1.1x optical zoom is a standard configuration: at 12 feet of throw, a 100" screen is achievable. The 16ms input lag at 120Hz refresh makes it responsive enough for video playback and presenter-driven interactive content. The 240W lamp in Dynamic Eco mode runs to 15,000 hours, reducing the annual lamp replacement burden in high-use classrooms and training rooms. Dual HDMI 1.4 inputs handle two simultaneous sources, and the USB-A port (5V/1.5A) powers wireless HDMI dongles without a wall outlet at the mount. Auto keystone correction with 1.1x zoom simplifies ceiling mount setup. RS-232 enables serial control system integration. The 3W integrated speaker handles small room audio in a pinch; external audio is recommended for rooms with more than 15 attendees. Ceiling mountable with the PJ-WMK-007 accessory.

Key Features

• 1080p Full HD (1920x1080) — Native full HD DLP resolution via 0.65" DMD chip for sharp text and video in commercial settings.
• 4,000 ANSI Lumens — Sufficient brightness for ambient-lit small-to-medium conference rooms and classrooms.
• 22,000:1 Dynamic Contrast — Deep blacks and bright highlights for mixed presentation and video content.
• 16ms Input Lag at 120Hz — Smooth, responsive playback for video content and interactive presentations.
• 15,000-Hour Lamp Life (Dynamic Eco) — Reduces lamp replacement frequency in high-use institutional deployments.

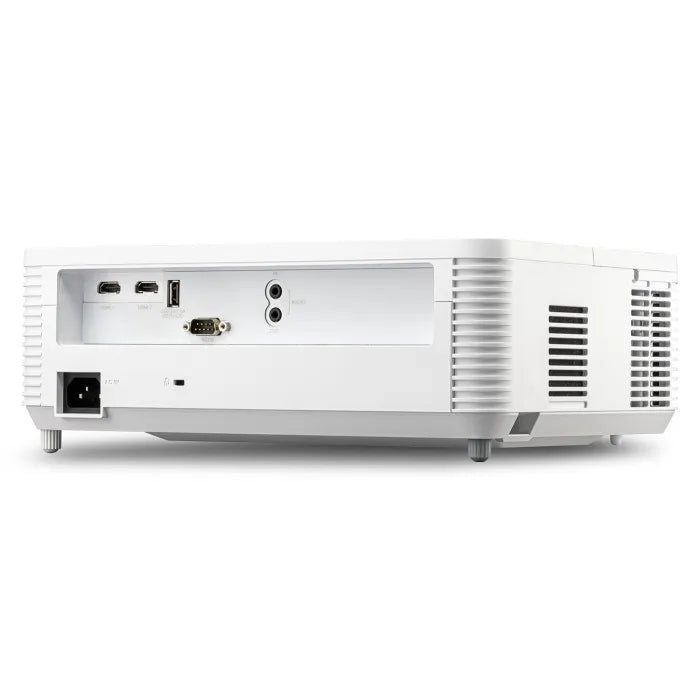

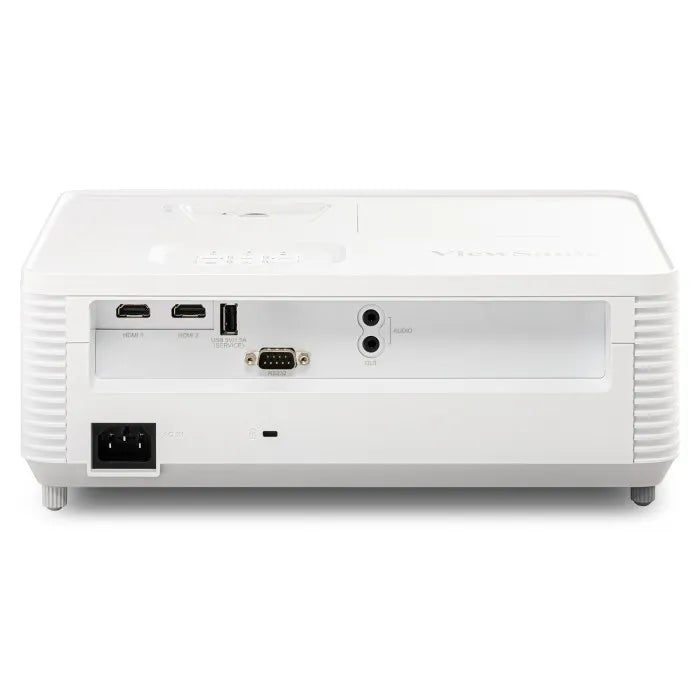

• Dual HDMI 1.4 + USB-A Dongle Power — Two source inputs plus wireless dongle capability without additional power runs.
• 1.1x Optical Zoom + Auto Keystone — Installation flexibility with minimal manual geometric correction.
• RS-232 Control Interface — Serial integration for Crestron, AMX, and third-party AV control systems.

Typical Applications

• Small to medium conference rooms requiring 1080p projection
• Classrooms and training rooms with full HD content workflows
• Corporate boardrooms at entry-level price points
• Government briefing spaces with basic AV integration needs

Technical Specifications

Frequently Asked Questions
