ViewSonic LSD400HD-ST 4, 000 ANSI lumens, 0.65" 1080p DLP Laser Projector

Product Overview

The ViewSonic LSD400HD-ST is a 4,000 ANSI lumen 1080p short-throw DLP laser projector designed for professional AV environments where installation depth is constrained. Utilizing a 0.65" DMD chip and 3rd-generation laser phosphor technology, it delivers full HD images from a 0.5 throw ratio — projecting a 100" screen from just 3.6 feet — while maintaining a 30,000-hour maintenance-free light source. Its IP6X-rated sealed optical engine and support for 360° projection, portrait mode, and LAN control make it a practical choice for corporate boardrooms, training rooms, and digital signage installations.

Product Description

The LSD400HD-ST addresses a common integration challenge: achieving large-screen 1080p projection in rooms where throw distance is limited by architectural constraints. At a 0.5:1 throw ratio, it can fill a 100" screen from approximately 1.1 meters (3.6 feet), eliminating presenter shadow and hotspot issues common with standard-throw units mounted close to the screen. The 0.65" DMD chip delivers high-contrast DLP performance at full HD resolution. 3rd-generation laser phosphor technology rated at 30,000 hours removes the lamp replacement variable from service contracts and maintenance schedules, making it a strong TCO argument for managed AV environments. The IP6X-sealed optical engine protects against dust ingress for reliable 24/7 operation in commercial spaces. Power consumption is reduced by up to 49% compared to equivalent lamp-based projectors. The unit supports 360° projection including 90° portrait mode for vertically-oriented digital signage, and H/V keystone correction with 4-corner adjustment covers off-axis setups. Centralized LAN control supports PJ-Link and RS-232 integration for enterprise AV management. The mercury-free design simplifies disposal compliance for institutional buyers.

Key Features

• 0.5 Short Throw Ratio — 100" image from 3.6 feet; eliminates shadow and glare in tight installations.
• 0.65" DMD Chip — High-contrast DLP optics at native 1920x1080 resolution.
• 3rd-Gen Laser Phosphor, 30,000-Hour Life — No lamp replacements; maintenance-free operation for managed deployments.
• IP6X Sealed Optical Engine — Dust-proof rating for reliable 24/7 commercial operation.
• 360° Projection + 90° Portrait Mode — Flexible orientation for digital signage and non-standard installations.
• Up to 49% Lower Power Consumption — Compared to equivalent lamp-based projectors; mercury-free design.

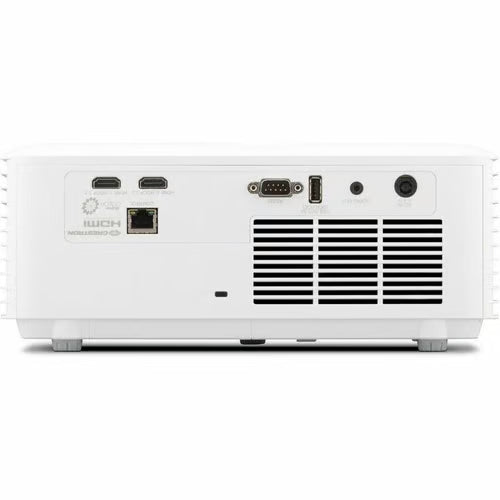

• LAN Control (PJ-Link) + RS-232 — Centralized management for multi-room AV deployments.
• H/V Keystone + 4-Corner Correction — Handles off-axis projection geometry precisely.

Typical Applications

• Corporate boardrooms and executive conference rooms with limited throw depth
• Training rooms and classrooms with instructor-proximity projector placement
• Government briefing spaces with fixed short-throw installations
• Digital signage in retail corridors and lobby environments
• Houses of worship with shallow stage-to-screen projection distances

Technical Specifications
