ViewSonic LS832WU 5,000L WUXGA Ultra Short Throw Laser Projector
Product Overview
The ViewSonic LS832WU combines 5,000 ANSI lumens of WUXGA (1920x1200) resolution with a 0.23:1 ultra short throw ratio, projecting a 120" image from just 13.8 inches. Its 20,000-hour laser phosphor source, IP5X dust rating, and HDR/HLG support make it the premium choice for immersive collaboration walls, executive boardrooms, and large interactive installations.
Key Features
- 0.23:1 Ultra Short Throw — Projects 120" from 13.8 inches, wall-mounted virtually shadow-free.
- 5,000 ANSI Lumens WUXGA — High-resolution laser brightness for large screens in lit rooms.
- 20,000-Hour Laser Phosphor — Maintenance-free light source for demanding permanent installs.
- HDR10 + HLG — Enhanced dynamic range for video, simulation, and creative content.
- IP5X Dust Resistance — Sealed engine for industrial and challenging environments.
- LAN / RS232 / RJ45 — Full enterprise AV control suite (Crestron, AMX, PJ-Link, ATEN).
Typical Applications
- Executive Boardrooms — Ultra short throw enables wall-flush installation for premium visual impact.
- Simulation Rooms — WUXGA resolution and UST ratio for edge-blended or single large-format displays.
- Interactive Classrooms — Project 120" from desk height without shadows during interactive sessions.
- Digital Signage — 5,000 lumens and laser reliability support high-cycle commercial applications.
Technical Specifications
| Resolution | WUXGA (1920x1200) |
| Brightness | 5,000 ANSI Lumens |
| Light Source | Laser Phosphor, 20,000 hours |
| Throw Ratio | 0.23:1 |
| Contrast Ratio | 3,000,000:1 |
| HDR Support | HDR10, HLG |

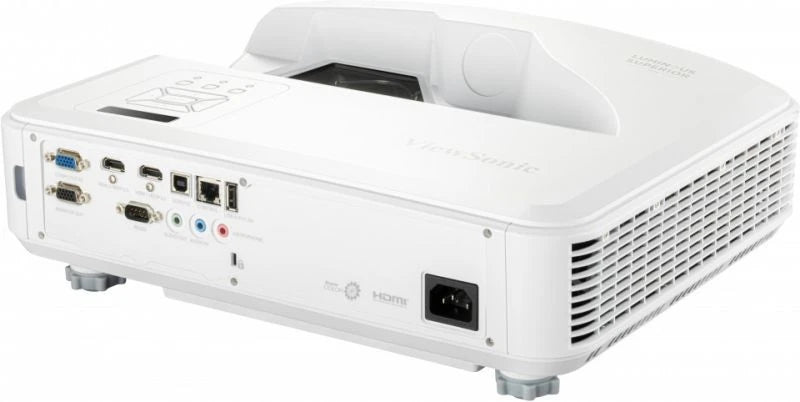

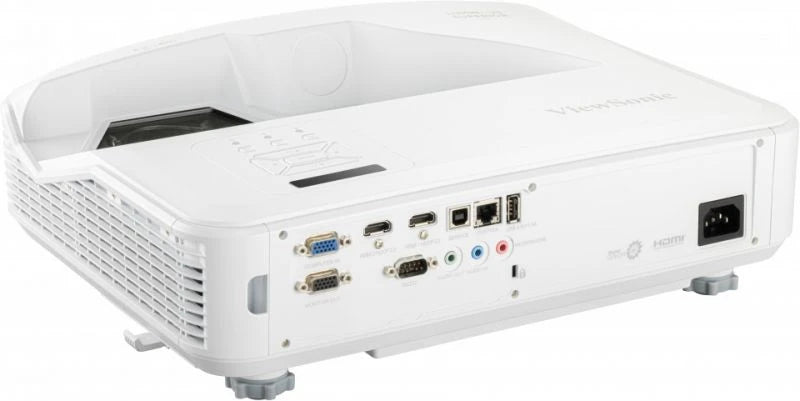

| Inputs | 3x HDMI 2.0, VGA, RJ45, RS232, USB-A |
| Dust Resistance | IP5X |
| Warranty | 3-Year Limited (incl. light source) |
Frequently Asked Questions
- How close to the wall does the LS832WU need to be for a 120" image?
- The LS832WU projects a 120" image from approximately 13.8 inches (35 cm), making it ideal for flush or near-wall mounting.
- Is the LS832WU compatible with touch-overlay interactive systems?
- Yes. The ultra short throw design pairs well with IR or optical touch overlays for wall-mounted interactive displays.
- What control systems does the LS832WU support?
- It supports Crestron, AMX, PJ-Link, and ATEN via the RJ45 and RS232 ports.
