ViewSonic LS630W 4,500 ANSI Lumens WXGA Laser Business/Education Projector

Product Overview

The ViewSonic LS630W is a 4,500 ANSI lumen WXGA laser projector from the Luminous Superior Series, designed for classrooms, conference rooms, and corporate training environments that require lamp-free reliability at a mid-range price point. Powered by 3rd-generation laser phosphor technology with a 30,000-hour rated lifespan, it delivers consistent brightness at 1280x800 native resolution without the maintenance cycle of traditional lamp projectors. A sealed optical engine, LAN control via PJ-Link, and 32% smaller chassis compared to prior generations make it well-suited for permanent installation in managed multi-room AV environments.

Product Description

The LS630W occupies a practical middle ground in ViewSonic's laser lineup: more lumens than entry-level LED units, lamp-free reliability, and a compact white chassis suited for classroom ceiling mounts and conference room installations. At 4,500 ANSI lumens with 3,000,000:1 dynamic contrast, it handles ambient light without pulling room blinds. WXGA (1280x800) resolution matches the native aspect ratio of most Windows laptops and presentation software, reducing letterboxing on common content. The 3rd-generation laser phosphor source is rated to 30,000 hours in eco mode — at 8 hours per day, that is over a decade of operation without a lamp replacement, a significant factor in institutional TCO calculations. The sealed optical engine resists dust accumulation, supporting 24/7 operation typical of digital signage or always-on classroom use. The 1.3x optical zoom and H/V keystone ±30° with 4-corner adjustment provide sufficient geometric flexibility for typical ceiling-mount installations. An RS-232 port and RJ45 Ethernet with PJ-Link support enable control system integration for Crestron, AMX, and similar platforms. Two HDMI inputs plus USB-A (5V/1.5A for wireless dongle power) cover the majority of source connectivity scenarios. The built-in 15W speaker is adequate for medium-sized classrooms and conference rooms. At 6.83 lbs, single-person ceiling mount installation is straightforward.

Key Features

• 4,500 ANSI Lumens — Usable image quality in ambient-lit classrooms and conference rooms up to 300".
• 3rd-Gen Laser Phosphor, 30,000-Hour Life — Eco-mode rated; eliminates lamp replacement in institutional deployments.
• WXGA 1280x800 Native Resolution — Matches laptop and presentation software aspect ratio natively.
• Sealed Optical Engine — Dust-resistant for 24/7 continuous operation and digital signage applications.

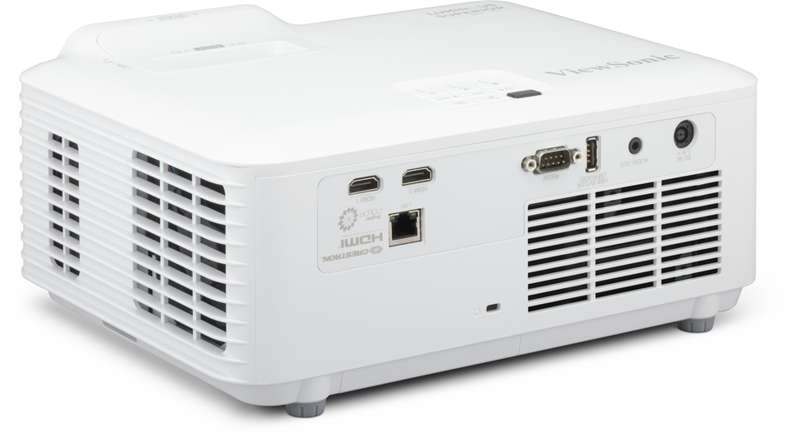

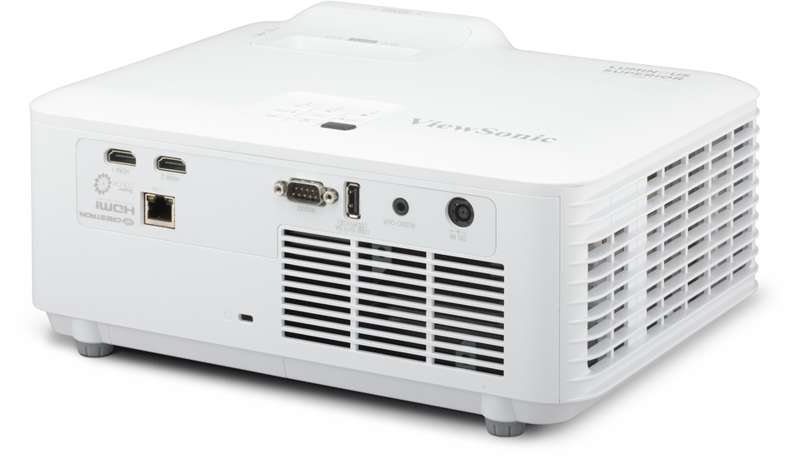

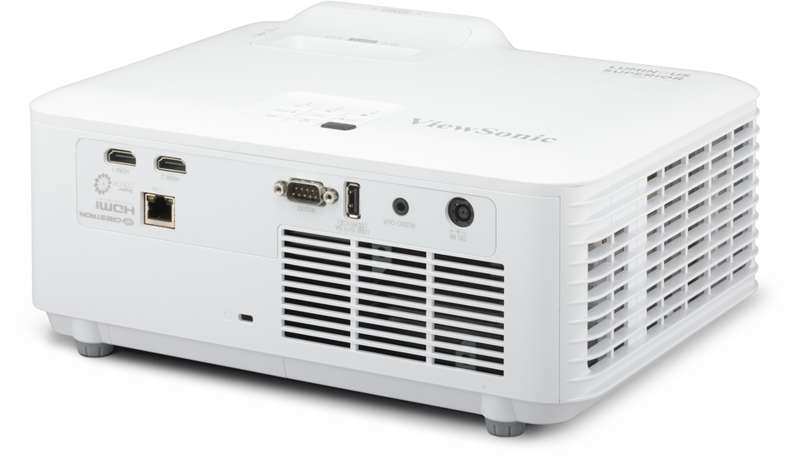

• LAN Control (PJ-Link) + RS-232 — Integrates with Crestron, AMX, and enterprise AV management platforms.
• 1.3x Optical Zoom + H/V Keystone ±30° — Standard installation flexibility with 4-corner correction.
• 32% Smaller Chassis vs. Prior Gen — Compact form factor simplifies ceiling-mount integration.
• 15W Integrated Speaker — Adequate audio for medium-sized rooms without external amplification.
• Up to 49% Lower Power Consumption — Compared to equivalent lamp-based projectors; instant on/off.

Typical Applications

• Classroom and university lecture hall permanent installations
• Corporate conference rooms and training rooms
• Government briefing spaces requiring managed AV infrastructure
• House of worship with fixed ceiling projection
• 24/7 digital signage in retail and corporate lobbies
