ViewSonic LS560WH 3,000L WXGA Short Throw LED Projector
ViewSonic LS560WH 3,000L WXGA Short Throw LED Projector is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
ViewSonic LS560WH 3,000L WXGA Short Throw LED Projector
Product Overview
The ViewSonic LS560WH upgrades the short-throw LED classroom experience with 3,000 ANSI lumens, WXGA (1280x800) resolution, and an enhanced 0.69:1 throw ratio for an even closer install. Auto V-keystone, zoom, and a 30,000-hour LED light source make it a maintenance-free, feature-rich solution for education and corporate environments.
Key Features
- 0.69:1 Ultra Short Throw — Projects 100" from just 4.8 ft for near shadow-free collaboration.
- 30,000-Hour LED Source — No lamp costs or replacements over the product's useful life.
- Auto V-Keystone + 1.07x Zoom — Instant alignment and flexible positioning without repositioning.
- 3,000 ANSI Lumens WXGA — Bright widescreen images in ambient classroom and office light.
- Dual HDMI 1.4 — Simultaneous two-source connectivity for presentations and demos.
- USB-A for Media Playback — Displays documents, photos, and video direct from USB.
Typical Applications
- K-12 Classrooms — Short throw, 30K-hour LED, and auto-keystone minimize setup time and maintenance costs.
- Corporate Training — Dual HDMI and zoom adapt to different room setups without reinstallation.
- Permanent Installations — LED longevity and sealed engine make it ideal for fixed-install environments.
- Interactive Boards — Close throw distance reduces shadow interference during board interaction.
Technical Specifications
| Resolution | WXGA (1280x800) |
| Brightness | 3,000 ANSI Lumens |
| Light Source Life | 30,000 hours LED |
| Throw Ratio | 0.69:1 |
| Contrast Ratio | 3,000,000:1 Dynamic |

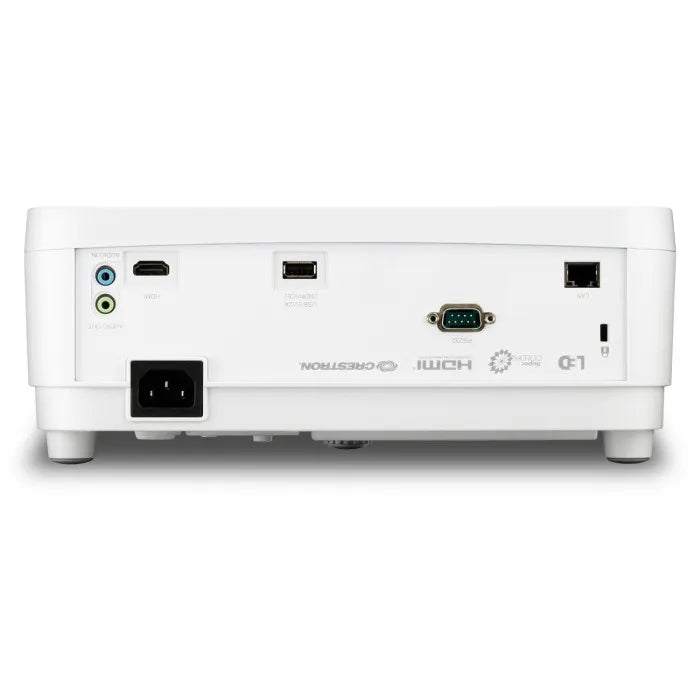

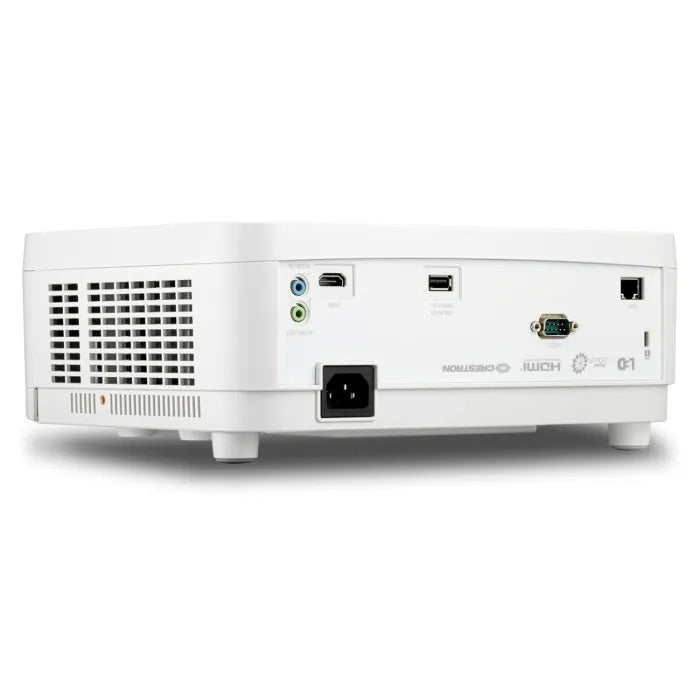

| Inputs | 2x HDMI 1.4, USB-A, Audio In/Out, RS232 |
| Speaker | 10W x1 |
| Zoom | 1.07x Optical |
| Warranty | 3-Year Limited, No Lamp Replacement |
Frequently Asked Questions
- What is the difference between LS500WH and LS560WH?
- The LS560WH has a slightly closer throw ratio (0.69 vs 0.72), adds auto V-keystone, dual HDMI, and RS232 control, making it better suited for permanent managed installations.
- Does the LS560WH require filter cleaning?
- No. The sealed optical engine is filter-free, making it suitable for dusty classroom and construction environments.
- Can I control the LS560WH via a control system?
- Yes. The RS232 port enables control via Crestron, AMX, and other serial control systems.
