ViewSonic LDS138-151 Foldable 138" All-in-One Mobile Direct View LED Display

Product Overview

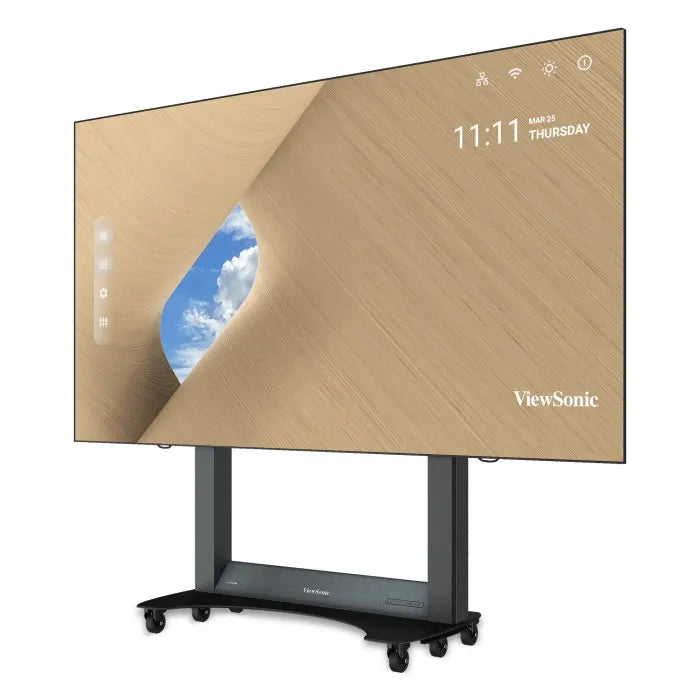

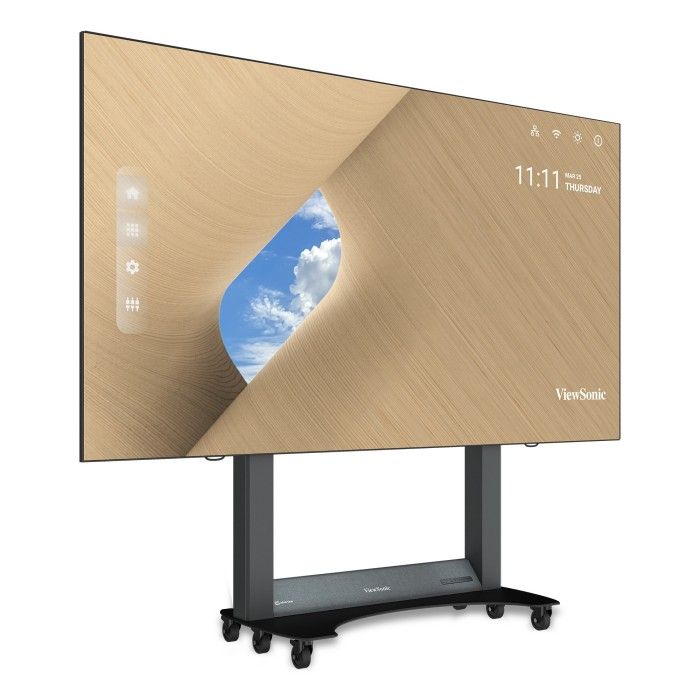

The ViewSonic LDS138-151 is a 138-inch foldable mobile direct view LED display engineered for organizations that require large-format, high-impact visuals without a permanent installation. Mounted on 360-degree silent caster wheels with a motorized height-adjustable stand, this commercial-grade direct view LED display deploys in minutes — unfold, connect a standard 20-amp outlet, and the display is operational. Its Glue-on-Board (GOB) LED surface treatment delivers IP54 dust and moisture resistance and IK06 impact protection, making it suitable for high-traffic trade show floors, touring events, pop-up activations, and multi-room enterprise deployments requiring a reusable large-format solution.

Product Description

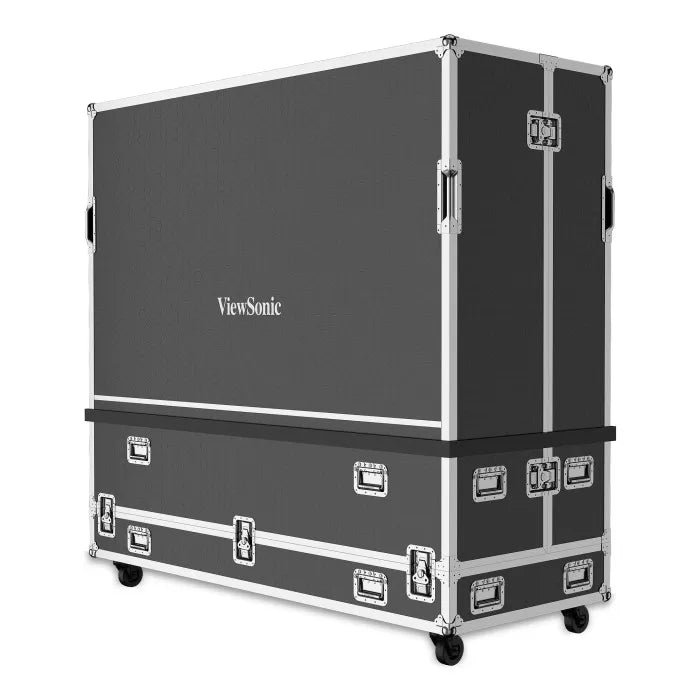

Unlike wall-mounted or fixed LED displays, the LDS138-151 arrives pre-assembled in a durable custom flight case for protected transport between venues. The foldable hinge design allows the display to fit into most standard elevators, enabling multi-floor deployment within buildings without disassembly. When fully extended on the motorized stand, the display reaches a maximum height of 8.5 feet from floor to top edge, accommodating a variety of room layouts and sightline requirements. Minimum height from floor to the bottom of the display is 8.6 inches, allowing the screen to be positioned near floor level for immersive presentations.

The LDS138-151 delivers Full HD (1920 x 1080) resolution at a 1.588 mm pixel pitch with 600 nits brightness, a 120% Rec. 709 wide color gamut, a 3,840 Hz refresh rate, and a 6,500:1 static contrast ratio. Onboard Android 9.0 (RK3399 CPU, 4 GB DDR4, 32 GB storage) enables standalone media playback without an external player. The integrated control bar is built into the floor stand to keep the screen face unobstructed, with a front-facing HDMI 2.0 input for quick source connections. Sloped dual 30W speakers direct audio toward the audience for enhanced clarity in open spaces. The display supports Picture-by-Picture (PBP) from up to four HDMI inputs and Picture-in-Picture (PIP) for simultaneous multi-source display. Remote management integrates with Q-SYS via a verified plugin and is compatible with Crestron, Extron, and AMX control systems. LED modules are front-accessible and hot-swappable using the included vacuum maintenance tool. The LDS138-151 received a rAVe Publications Best New Mobile dvLED Product award at InfoComm 2025 and is rated for 100,000-hour LED lifetime with a 3-year limited warranty including on-site service.

Key Features

• Foldable 138-Inch Display with Flight Case — Pre-assembled unit ships in a protective flight case and deploys in minutes, eliminating the installation labor and lead time of fixed LED walls.
• 360-Degree Silent Caster Wheels — Motorized stand with omnidirectional wheels enables easy repositioning between rooms, floors, and venues without disassembly.

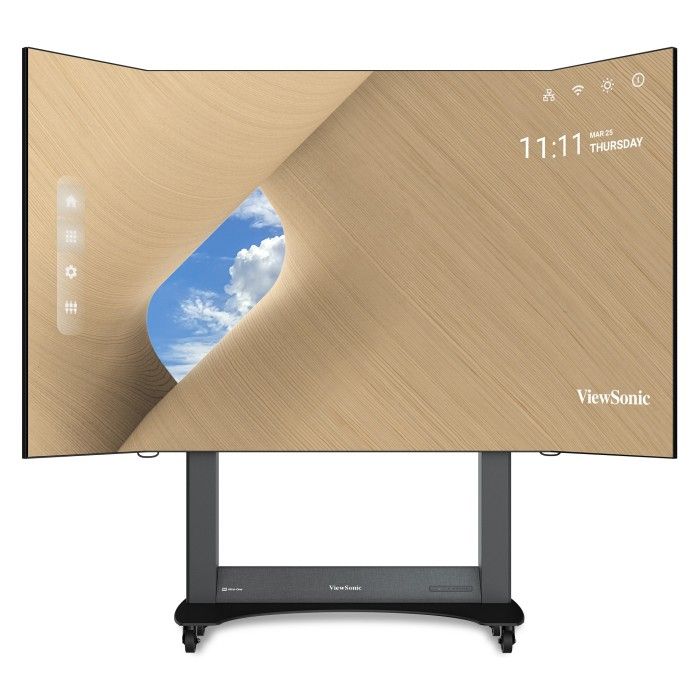

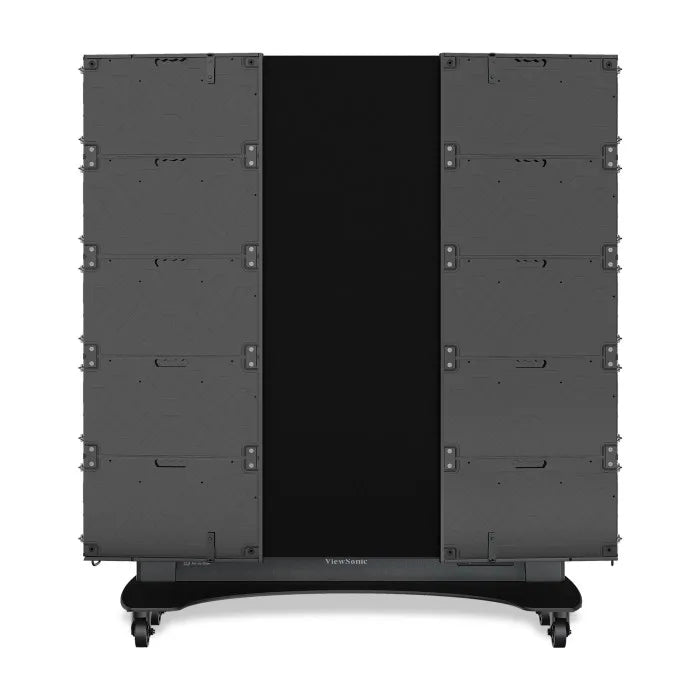

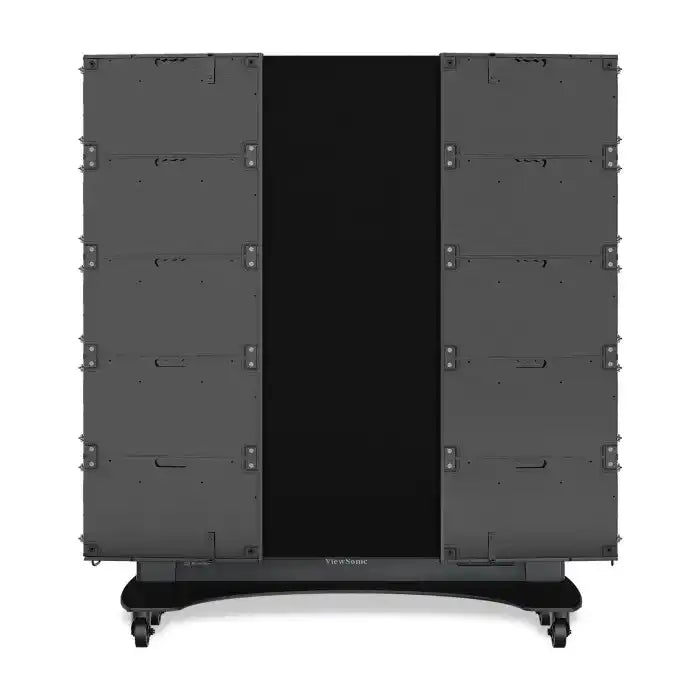

• Elevator-Compatible Foldable Design — Hinged screen folds to fit most standard elevators for multi-floor deployment within buildings or convention centers.
• GOB LED Technology — IP54 / IK06 Rated — Glue-on-Board surface treatment protects LEDs from dust, moisture, and physical impact, supporting 24/7 operation in high-traffic environments.

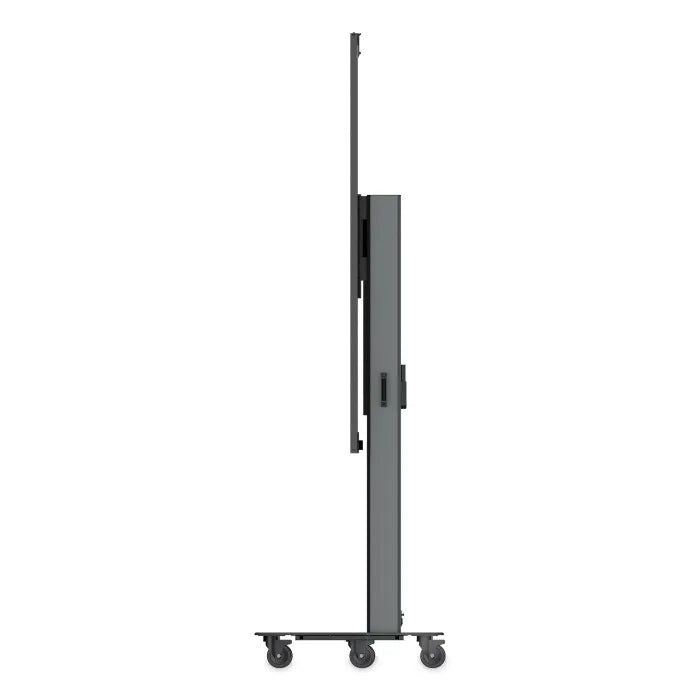

• Motorized Height-Adjustable Stand — Adjusts from 8.6 inches to 8.5 feet from floor to bottom/top of display for flexible audience sightline accommodation.
• 1.588 mm Pixel Pitch / 600 Nits / 3,840 Hz — Fine pixel pitch delivers sharp imagery for moderate-distance audiences; high refresh rate ensures flicker-free video and live content.
• Integrated Control Bar in Stand — Clean screen face with controls and HDMI input integrated into the stand for a professional appearance in client-facing environments.
• Dual 30W Sloped Speakers — Angled speaker design directs audio toward the audience for improved clarity in open event and presentation spaces.
• PBP / PIP Multi-Source Display — Supports up to four simultaneous HDMI sources in Picture-by-Picture mode or a Picture-in-Picture overlay configuration.
• Q-SYS / Crestron / Extron / AMX Compatible — Integrates with existing AV control infrastructure for centralized management of power, volume, and input selection.

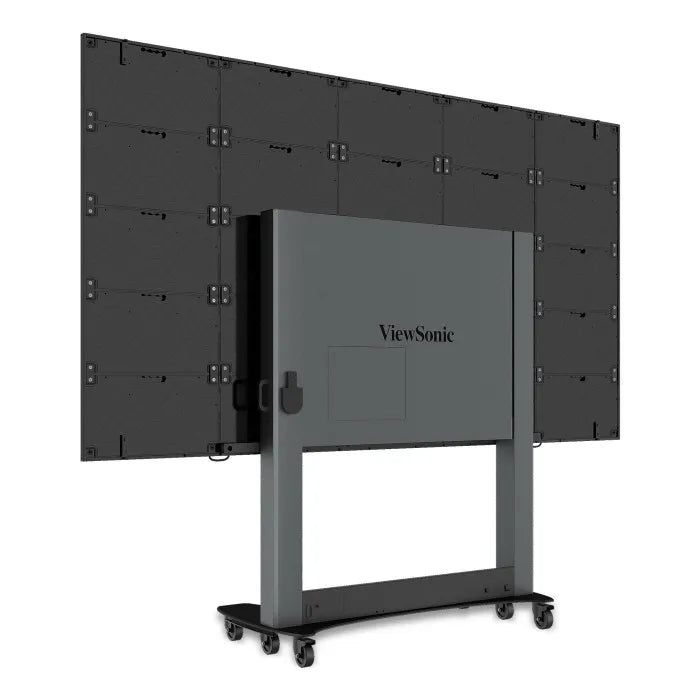

• Front-Serviceable Hot-Swap Modules — LED tiles accessible from the display face allow rapid field replacement with the included vacuum tool, minimizing event downtime.
• rAVe Best New Mobile dvLED — InfoComm 2025 — Industry recognition confirming the LDS138-151 as a leading mobile direct view LED solution for the commercial AV market.

Typical Applications

• Trade show booths and exhibition halls
• Touring events and roadshow presentations
• Pop-up retail activations and experiential marketing
• Multi-room enterprise campus deployments (shared between conference rooms)
• Auditorium and house of worship temporary stage displays
• Hotel ballroom and event space feature presentations
• Government space and military base portable briefing displays
