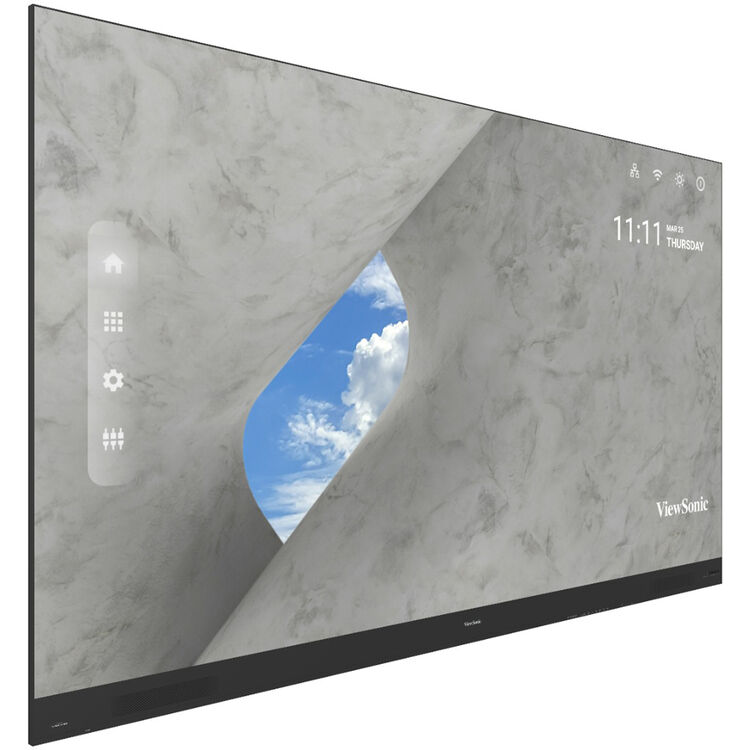

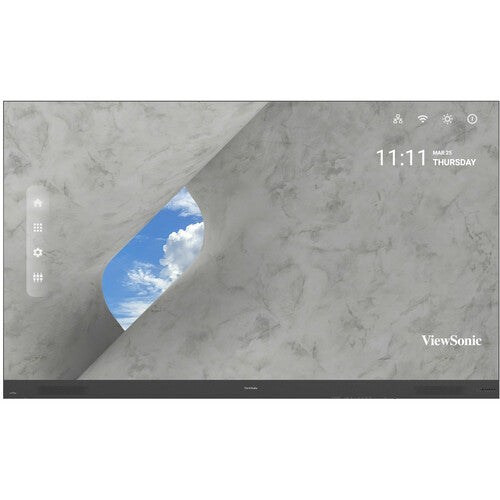

ViewSonic LDP163‑181 163″ All‑in‑One Direct View LED Display
Product Overview
The ViewSonic LDP163-181 is a 163-inch all-in-one direct view LED display designed for permanent commercial installations in corporate lobbies, auditoriums, conference centers, and large-format digital signage deployments. Featuring a 1.8 mm pixel pitch, Full HD (1920 x 1080) resolution, 600 nits brightness, and a 120% Rec. 709 wide color gamut, this commercial-grade direct view LED display delivers precise, vivid imagery rated for 24/7 continuous operation. Its all-in-one modular cabinet design integrates all AV and control components into a single factory-assembled frame, and its front-serviceable LED tile architecture enables rapid field maintenance without rear access.
Product Description
The LDP163-181 spans a full-HD image across a 163-inch diagonal at a 1.8 mm pixel pitch, producing fine-detail imagery suitable for audiences at moderate viewing distances in corporate and institutional environments. Two LDP163-181 units can be paired side by side to form a 32:9 ultra-wide video wall for large-scale event or broadcasting environments. The modular all-in-one cabinet consolidates LED modules, power supply, and control electronics into a pre-assembled structural frame, reducing installation complexity and eliminating separate rack equipment for basic deployments.
Built-in Harman Kardon speakers deliver high-fidelity audio for multimedia presentations without the need for external speaker systems. The display runs Android 9.0 on an onboard processor with 4 GB DDR4 RAM and 64 GB storage, supporting standalone media playback, app execution, and content scheduling via the preinstalled myViewBoard Manager platform. Front-accessible LED tiles and a detachable control bar facilitate fast, minimal-disruption maintenance. The display supports both portrait and landscape installation, 4K/HDR/HLG input signal processing, and PIP/PBP multi-source display modes. The LDP163-181 carries a 100,000-hour LED lifetime rating, operates continuously 24/7, and is backed by a 3-year limited warranty with on-site service.
Key Features
- 163-Inch Direct View LED at 1.8 mm Pixel Pitch — Delivers Full HD resolution across a large-format display surface with no bezels or projection gaps for architectural integration.
- COB LED Technology — Provides 6,000:1 contrast, improved collision protection, and a 100,000-hour LED lifespan for dependable 24/7 commercial operation.
- 600 Nits Brightness / 120% Rec. 709 — Sustains accurate, vibrant color reproduction in well-lit lobbies, atriums, and conference facilities.
- 4,440 Hz Refresh Rate — Eliminates flicker artifacts in video content, live event feeds, and broadcast applications.
- All-in-One Modular Cabinet Design — Consolidates LED, power, and control hardware into a single unit, simplifying installation and reducing multi-vendor logistics.
- Front-Serviceable LED Tiles — Hot-swappable modules accessible from the display face minimize downtime during field maintenance.
- Harman Kardon Integrated Audio — High-fidelity built-in speakers eliminate the need for separate audio infrastructure in most deployments.
- Portrait and Landscape Installation — Supports both orientations for versatile placement in lobbies, event halls, and presentation spaces.
- PIP / PBP Multi-Source Display — Enables simultaneous display of multiple content sources for AV integration in command centers and presentation rooms.
- myViewBoard Manager — Cloud-based platform for remote device monitoring, content scheduling, and app management across distributed installations.
- 24/7 Operation Rating — Engineered for continuous commercial use in permanent signage and large-format display installations.
- 3-Year On-Site Warranty — Commercial-grade support coverage with on-site service for mission-critical deployments.
Typical Applications
- Corporate lobby and reception area feature wall displays
- Conference center and boardroom large-format video walls
- Auditorium and house of worship stage backdrop displays
- Airport, transit hub, and retail digital signage
- Broadcast studio LED walls and virtual production sets
- Government space and public facility information displays
- Control room and operations center situational awareness screens
Technical Specifications
| Screen Size | 163 inches diagonal |
| Native Resolution | 1920 x 1080 (Full HD) |
| LED Pixel Pitch | 1.8 mm |
| LED Technology | COB (Chip-on-Board) |
| Brightness (Peak) | 600 nits |
| Static Contrast Ratio | 6,000:1 |
| Color Gamut | 120% Rec. 709 |
| Refresh Rate | 4,440 Hz |
| Aspect Ratio | 16:9 |
| Operating System | Android 9.0 |
| Memory / Storage | 4 GB DDR4 / 64 GB |
| Audio | Harman Kardon integrated speakers |
| Power Consumption (Max) | 2,660 W |
| Power Consumption (Typical) | 1,860 W |
| Net Weight | ~170 kg (375 lbs) |
| LED Lifetime | 100,000 hours |
| Operation Rating | 24/7 |
| Wireless | Wi-Fi 2.4G/5G |
| Certifications | cTUVus, FCC, RoHS |
| Warranty | 3-year limited warranty, on-site service |
Frequently Asked Questions
Q: What is the minimum viewing distance recommended for the 1.8 mm pixel pitch?
A: A 1.8 mm pixel pitch is suitable for viewing distances of approximately 1.8–2.5 meters or greater, making the LDP163-181 appropriate for boardrooms, conference centers, and lobbies where audiences are positioned at moderate distances from the screen.
Q: Does this display require an external media player?
A: No. The LDP163-181 runs Android 9.0 onboard with 4 GB RAM and 64 GB storage for standalone content playback. External sources can connect via HDMI 2.0, HDMI 1.4, or HDBaseT inputs.
Q: Can two units be combined into a video wall?
A: Yes. Two LDP163-181 units can be installed side by side to form a 32:9 ultra-wide video wall for large-scale event, broadcast, or corporate campus deployments.
Q: What AV control system integrations are supported?
A: The display provides RS232 and Ethernet control interfaces and is compatible with Crestron, Extron, AMX, and Q-SYS ecosystem control systems via a Q-SYS Library Verified plugin.
Q: How are LED modules serviced in the field?
A: LED tiles are hot-swappable from the front of the display using the included vacuum maintenance tool. Pre-calibrated replacement modules maintain color and brightness uniformity across the cabinet surface.
Q: What are the power requirements for this display?
A: The LDP163-181 draws up to 2,660W maximum at 100–240V AC. A licensed electrician should verify dedicated circuit availability prior to installation planning.
Q: What warranty is included?
A: ViewSonic provides a 3-year limited warranty covering parts and labor with on-site service. Contact Creation Networks for commercial deployment assistance and extended coverage options.
