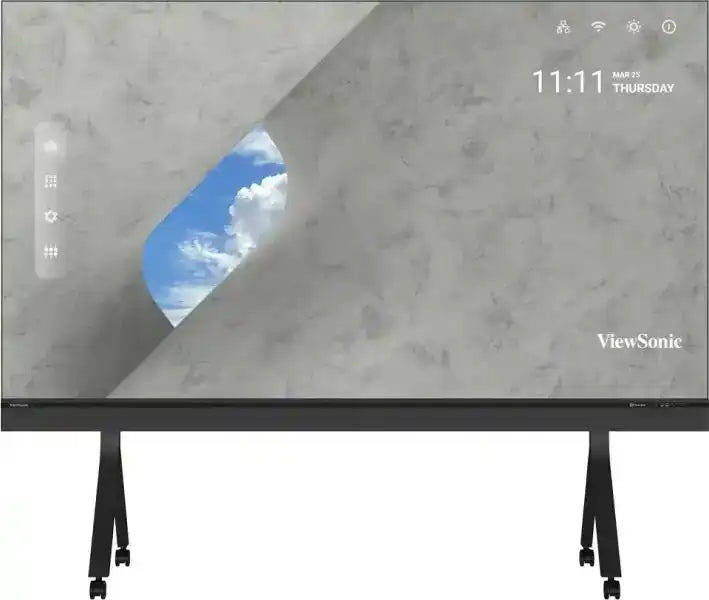

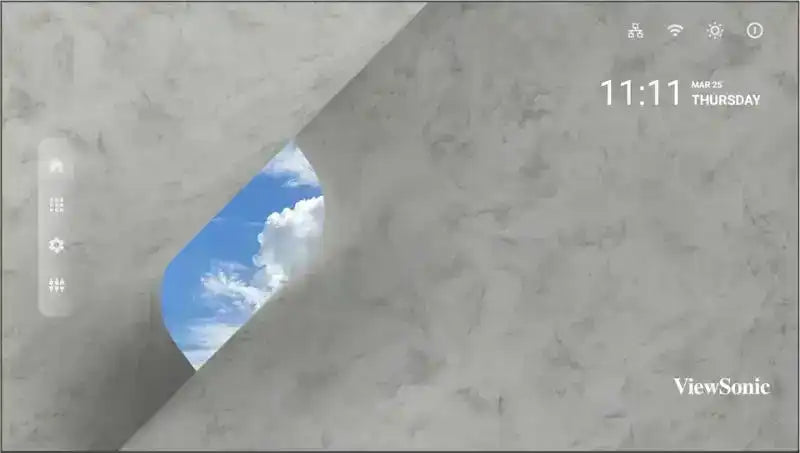

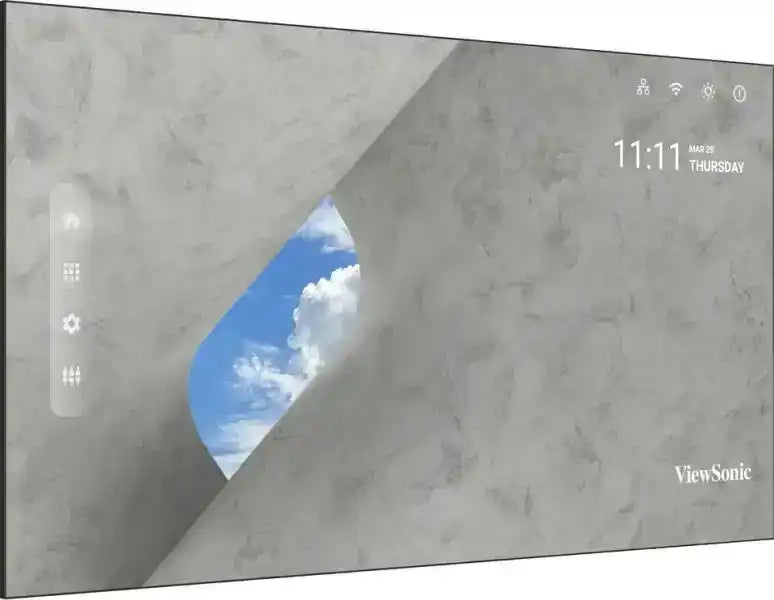

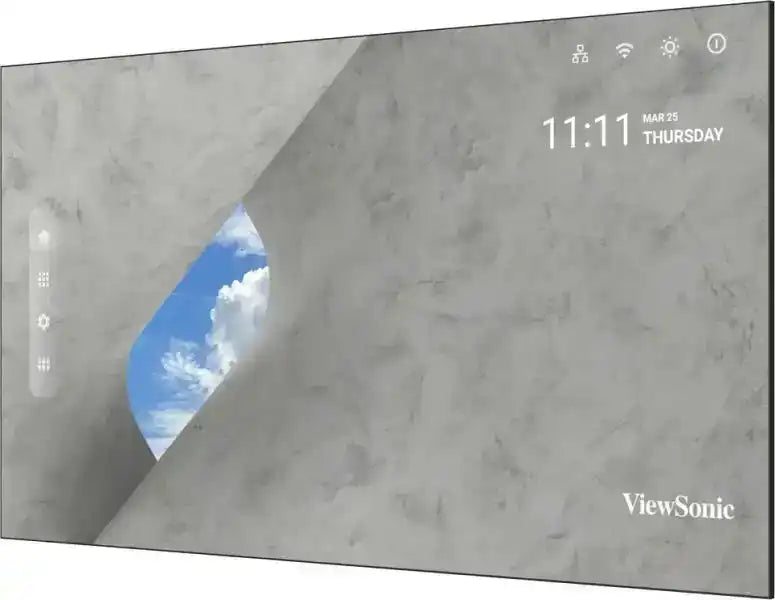

ViewSonic LDP136-071C – 136" 4K UHD All-in-One Direct View LED Display
ViewSonic LDP136-071C – 136" 4K UHD All-in-One Direct View LED Display is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
ViewSonic LDP136-071C – 136" 4K UHD All-in-One Direct View LED...
Product Overview
The ViewSonic LDP136-071C is a 136-inch 4K UHD all-in-one direct view LED display built for enterprise boardrooms, executive briefing centers, and large-format commercial installations where a single preconfigured unit must deliver pixel-level image quality at scale. Featuring Chip-on-Board (COB) Mini LED technology with a 0.78mm pixel pitch, 600 nits adjustable brightness, and a 10,000:1 contrast ratio, it delivers sharp, vibrant visuals across the full 136-inch surface without the modular alignment and calibration complexity of a traditional LED video wall. The all-in-one architecture integrates the controller, image processing, and display into a single part number, reducing specification and procurement burden for AV integrators and facilities managers. IP54 front-panel protection and IK08 impact resistance make the LDP136-071C appropriate for high-traffic commercial lobbies, government spaces, and permanent corporate installations.
Product Description
The LDP136-071C is part of ViewSonic’s LDP Performance Series — the step up from the LDM all-in-one line — adding 4K UHD resolution and COB technology to the same streamlined installation model that integrators rely on for rapid deployment. A two-person installation team can complete physical setup in under two hours using the included wall mount system, and the 31mm ultra-slim profile ensures a flush, premium appearance against any wall surface. All 200 LED modules are front-serviceable using the included suction tool, so maintenance and module replacement can be performed without dismounting or accessing the rear of the display.

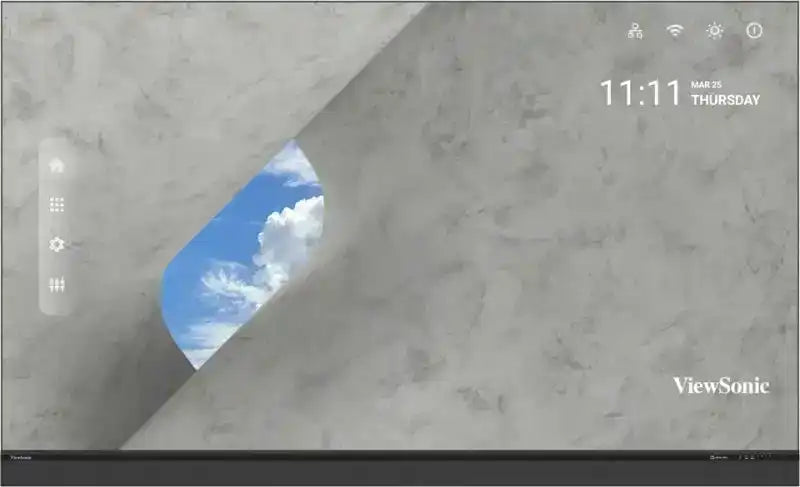

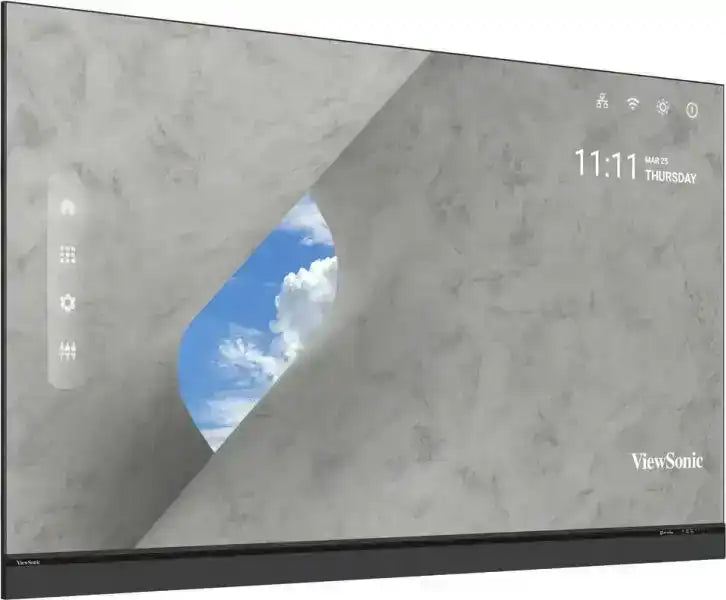

The detachable control bar offers flexible placement — it can be mounted directly behind the display, positioned up to 30 feet away, or concealed with optional accessory kits — giving system designers maximum freedom in equipment rack and cable routing. Four HDMI 2.0/HDCP 2.2 inputs (three internal, one external), USB 3.0/2.0, RJ45, and a USB-C data port provide the connectivity range required for permanent AV system integration. Android 9.0 with 32GB onboard storage handles local content playback and management without a dedicated media player.
The integrated dual 30W speaker system delivers clear audio for presentation environments without requiring a separate amplifier. Common cathode LED design and smart driving ICs reduce power consumption relative to standard LED architectures, contributing to lower total cost of ownership across the display’s 100,000-hour LED lifespan. The LDP136-071C ships as a complete, single-SKU solution — display, controller, and all installation components — simplifying the procurement and specification process for commercial AV projects.
Key Features
- 136" 4K UHD Direct View LED — 3840×2160 native resolution with 0.78mm pixel pitch COB Mini LED technology for precise, artifact-free imagery at close viewing distances.
- 600 Nits Adjustable Brightness — 100-level brightness adjustment from 0–600 nits maintains image quality across variable ambient lighting conditions in commercial spaces.
- 10,000:1 Contrast Ratio — High native contrast ratio delivers deep blacks and vivid highlights without relying on local dimming compensation.
- COB (Chip-on-Board) Technology — Encapsulated LED packaging provides IP54 dust/moisture resistance and IK08 impact protection for commercial-grade durability.
- All-in-One Single SKU — Display, controller, image processing, and wall mount ship in one part number, streamlining specification, purchasing, and installation logistics.
- Two-Person Installation — Engineered for rapid commercial deployment; a two-person team can complete setup in under two hours with included hardware.
- Front Serviceable Modules — All 200 LED modules are accessible from the front panel using the included suction tool — no rear access or wall dismounting required.
- Flexible Control Bar Placement — Detachable control bar can be mounted behind the display, up to 30 feet away, or concealed with optional accessory kits.
- 100,000-Hour LED Lifespan — Common cathode design and smart driving ICs reduce power draw while supporting long-term continuous operation.
- Dual 30W Integrated Speakers — Built-in stereo audio eliminates the need for external amplification in standard presentation and conference environments.
- Android 9.0 / 32GB Storage — Onboard OS with local storage supports content playback and management without a dedicated external media player.
Typical Applications
- Executive boardroom and C-suite briefing center as a premium single-screen focal display

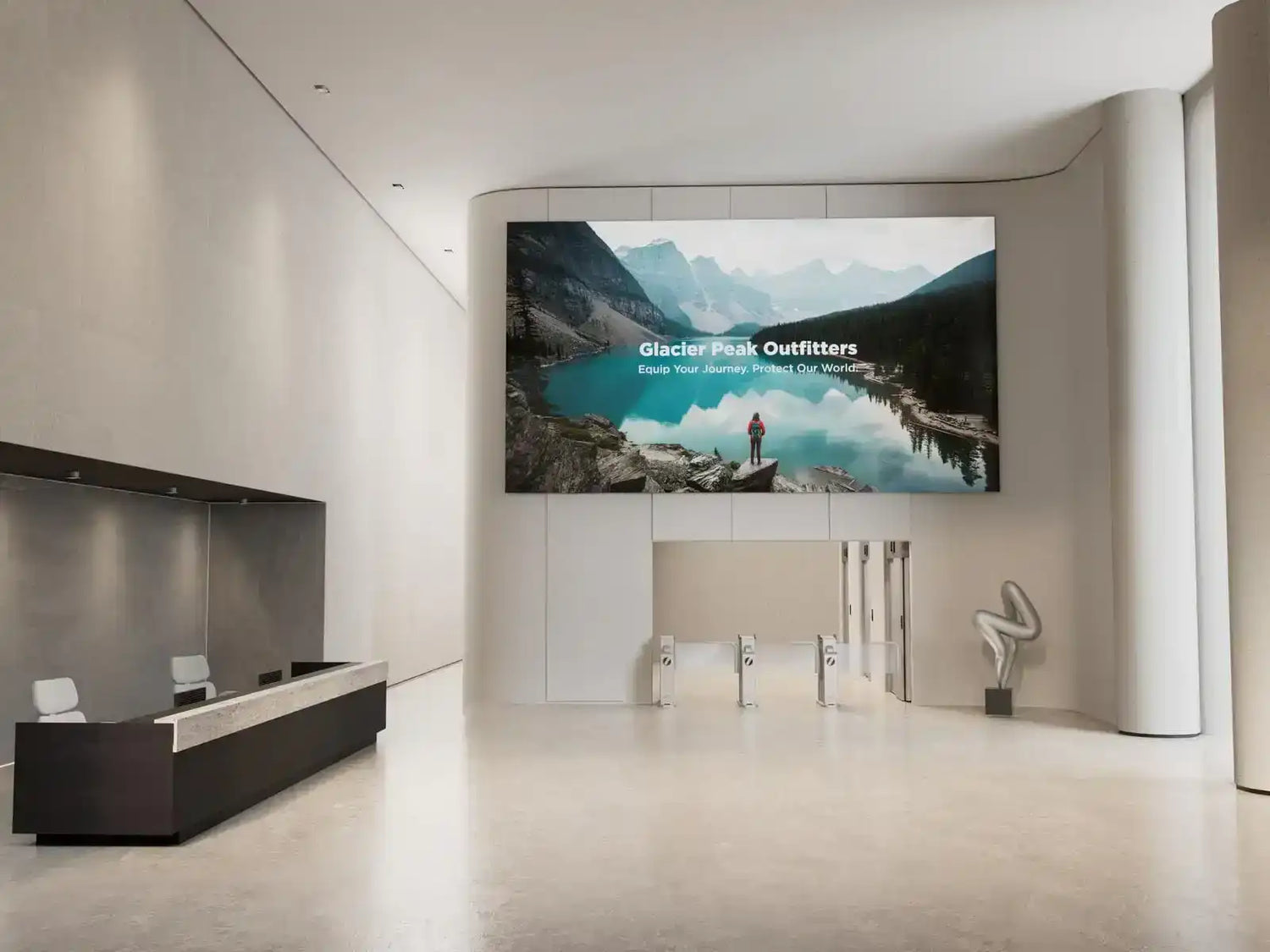

- Corporate lobby and reception area requiring a permanent large-format commercial installation
- Government command center or situation room with multi-source display requirements

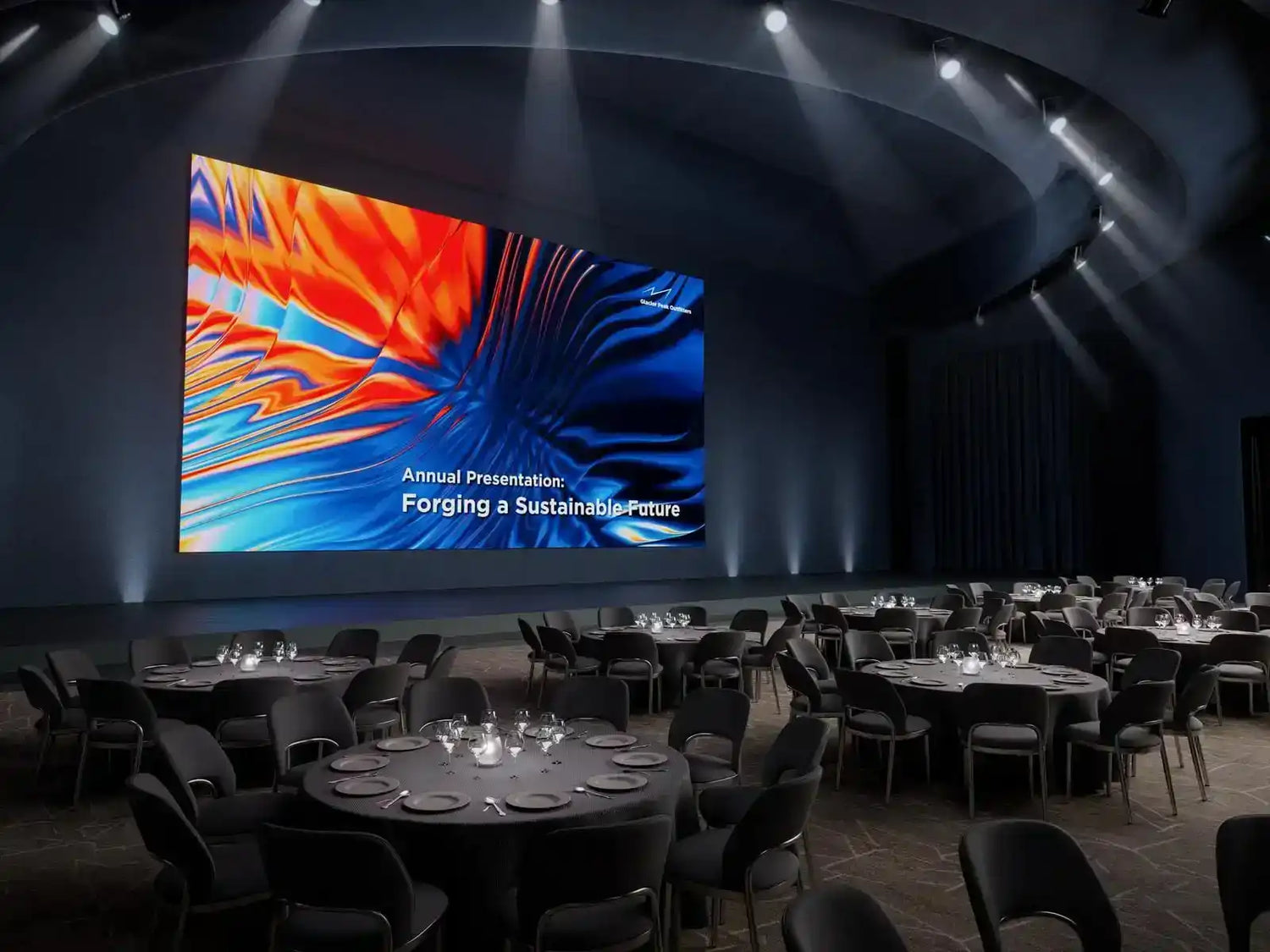

- Auditorium and conference center main-stage display for presentations and events
- Higher education lecture hall or collaborative learning space
- Museum, showroom, or retail flagship space for high-impact visual merchandising
Technical Specifications
| Specification | Detail |
|---|---|
| Screen Size | 136" |
| Native Resolution | 3840 × 2160 (4K UHD) |
| Panel Technology | Direct View LED — Flip Chip COB |
| Pixel Pitch | 0.78 mm |
| Brightness (max.) | 600 nits (100 levels adjustable) |
| Contrast Ratio | 10,000:1 (typ.) |
| LED Lifetime | 100,000 hours (typ.) |
| Ingress Protection | IP54 (front), IK08 (front) |
| Total LED Modules | 200 |
| Embedded OS | Android 9.0 |
| Local Storage | 32 GB (26 GB available) |
| HDMI Inputs | 4 × HDMI 2.0/HDCP 2.2 (3 internal, 1 external) |
| USB | USB 3.0 × 1, USB 2.0 × 2, USB-C × 1 (data) |
| Network | RJ45 × 3 (internet ×2, control ×1), Wi-Fi 2.4G/5G |
| Speakers | Dual 30W integrated |
| Power Consumption | 680W (typ.) / 2,031W (max.) / <0.5W (hibernate) |
| Dimensions (W×H×D) | 118.58 × 72.22 × 1.61 in (3012 × 1834.5 × 41 mm) |
| Net Weight | 372.58 lbs (169 kg) |
| Warranty | 3-year standard |
Frequently Asked Questions
How does the LDP136-071C differ from the LDM series?
The LDP series adds 4K UHD resolution and COB (Chip-on-Board) technology to the same all-in-one installation model as the LDM series. The tighter 0.78mm pixel pitch makes it appropriate for closer viewing distances and higher-resolution content requirements in premium corporate environments.
What is the minimum installation crew size and timeline?
ViewSonic rates the LDP136-071C for two-person installation, with setup completable in under two hours using the included wall mount hardware and system components.
Are LED modules field-replaceable without removing the display from the wall?
Yes. All 200 LED modules are front-serviceable using the included suction tool. There is no need to dismount or access the rear panel for module maintenance or replacement.
What is the control bar placement flexibility?
The detachable control bar can be mounted directly behind the display, positioned up to 30 feet away for remote rack integration, or fully concealed with optional accessory kits.
Does the display include an onboard media player?
Yes. Android 9.0 with 32GB of storage (26GB available) supports local content playback and management without a dedicated external media player.
What protection ratings apply to the front panel?
The COB LED packaging achieves IP54 dust and moisture resistance and IK08 impact protection on the front panel, suitable for high-traffic commercial lobbies and public-facing installations.
Is the LDP136-071C TAA compliant?
Please contact Creation Networks at creationnetworks.net/pages/contact to confirm current TAA compliance status for government procurement.
