ViewSonic LDP135-151 135″ All-in-One Direct View LED Display
Product Overview

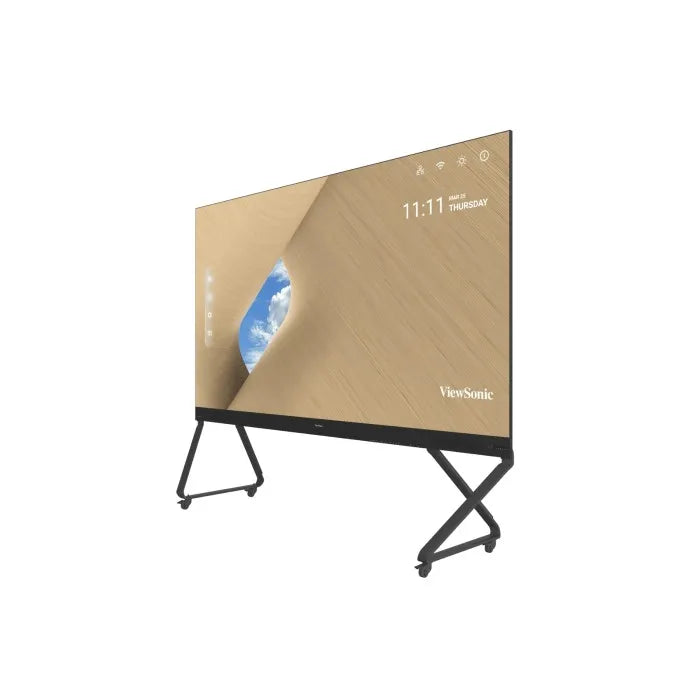

The ViewSonic LDP135-151 is a 135-inch all-in-one direct view LED display purpose-built for boardrooms, executive conference rooms, showrooms, and premium retail environments requiring large-format display at closer viewing distances. At a 1.5 mm pixel pitch, it delivers Full HD (1920 x 1080) resolution with exceptional detail clarity, backed by 600 nits brightness, a 120% Rec. 709 color gamut, and a high refresh rate for smooth, accurate commercial-grade imagery. The display ships pre-assembled as a single cabinet unit with an included mobile floor stand, making it a fully self-contained direct view LED solution deployable without wall mounting or structural reinforcement.
Product Description
The LDP135-151 integrates the LED module array, power supply, control system, and structural frame into a single factory-assembled all-in-one cabinet, eliminating the installation complexity and multi-vendor coordination required by conventional LED video wall deployments. The included height-adjustable mobile cart enables rapid relocation between spaces, making this display suitable for flexible multi-room deployments in enterprise campuses, higher education institutions, and commercial showrooms.
With a 1.5 mm pixel pitch, the LDP135-151 is designed for audiences at closer viewing distances typical of boardrooms and mid-sized conference spaces, where pixel-level clarity is more perceptible than on larger-pitch displays. Built-in Harman Kardon speakers provide premium audio without external speaker infrastructure. The onboard Android 9.0 system with 4 GB RAM and 64 GB storage supports standalone media playback, content scheduling, and wireless content sharing via the vCast platform. Front-serviceable LED modules accessible via the included vacuum maintenance tool minimize maintenance downtime. The display is rated for 100,000-hour LED lifetime, carries a 3-year limited warranty with on-site service, and meets cTUVus, FCC, and RoHS standards.
Key Features
- 135-Inch Direct View LED at 1.5 mm Pixel Pitch — Delivers Full HD resolution with fine detail clarity suitable for closer boardroom and conference room viewing distances.
- All-in-One Integrated Cabinet — Complete LED display, power, and control hardware in a single pre-assembled unit with no separate rack equipment required for basic deployment.
- Mobile Height-Adjustable Floor Stand — Included stand enables fast repositioning between rooms without wall installation, making this ideal for multi-use enterprise spaces.
- 600 Nits Brightness / 120% Rec. 709 — Delivers vivid, accurate color in well-lit meeting and presentation environments.
- High Refresh Rate — Smooth motion rendering for video conferencing, presentations, and multimedia content in high-stakes meetings.
- Harman Kardon Integrated Audio — Premium built-in speakers eliminate the need for separate audio systems in most conference deployments.
- Wireless Content Sharing (vCast) — Enables participants to share screen content wirelessly from laptops and mobile devices without dongles or adapters.
- Front-Serviceable LED Modules — Hot-swappable tiles accessible from the display face allow maintenance without rear access or structural disassembly.
- Android 9.0 Onboard — Built-in media player and app execution for standalone content delivery and scheduling without external playback hardware.
- 100,000-Hour LED Lifetime — Long-life LEDs support continuous commercial use and reduce total cost of ownership over multi-year deployments.
- 24/7 Operation Rated — Designed for continuous commercial use in permanent or semi-permanent large-format display applications.
- 3-Year On-Site Warranty — ViewSonic commercial warranty with on-site service for enterprise deployments.
Typical Applications
- Boardroom and executive conference room displays
- Corporate showroom and product demonstration environments
- Higher education lecture halls and collaborative learning spaces
- Training room and presentation space large-format displays
- Hotel ballroom and event space feature walls
- Digital signage in lobbies and reception areas
Technical Specifications
| Screen Size | 135 inches diagonal |
| Native Resolution | 1920 x 1080 (Full HD) |
| LED Pixel Pitch | ~1.5 mm |
| Brightness | 600 nits |
| Color Gamut | 120% Rec. 709 |
| Refresh Rate | ~3,840 Hz |
| Aspect Ratio | 16:9 |
| Operating System | Android 9.0 |
| Memory / Storage | 4 GB DDR4 / 64 GB |
| Audio | Harman Kardon integrated speakers |
| Mounting | Mobile cart with height adjustment (included) |
| LED Lifetime | 100,000 hours |
| Operation Rating | 24/7 |
| Certifications | cTUVus, FCC, RoHS |
| Warranty | 3-year limited warranty, on-site service |
Frequently Asked Questions
Q: Is the mobile floor stand included with the LDP135-151?
A: Yes. The LDP135-151 ships with a height-adjustable mobile cart that supports both portrait and landscape installation orientations, enabling rapid deployment without wall mounting.
Q: What is the recommended minimum viewing distance for a 1.5 mm pixel pitch display?
A: A 1.5 mm pixel pitch is appropriate for viewing distances of approximately 1.5–2.0 meters or more, making the LDP135-151 well suited for boardroom and conference room environments where participants are seated at a table several feet from the screen.
Q: Does the LDP135-151 need an external media player?
A: No. The display includes an onboard Android 9.0 player with 4 GB RAM and 64 GB storage for standalone content playback and app execution. External sources connect via HDMI inputs.
Q: What wireless content sharing options are available?
A: The display supports vCast wireless screen sharing, enabling participants to cast content from Windows, macOS, iOS, and Android devices over the local Wi-Fi network without cables or adapters.
Q: What AV control protocols does the LDP135-151 support?
A: The display provides RS232 and Ethernet (RJ45) control interfaces for integration with Crestron, Extron, AMX, and Q-SYS control systems.
Q: What warranty coverage is provided?
A: ViewSonic provides a 3-year limited warranty covering parts and labor with on-site service. Contact Creation Networks for deployment support and extended coverage options.
