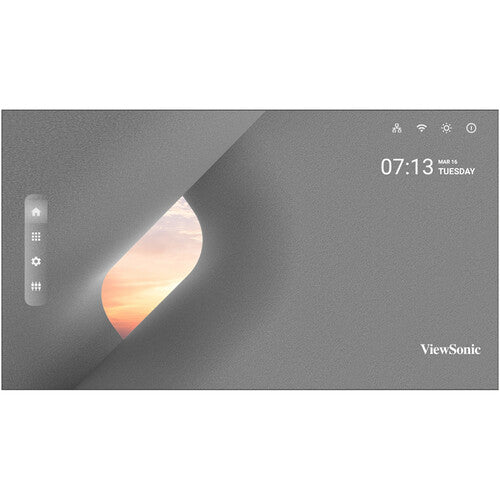

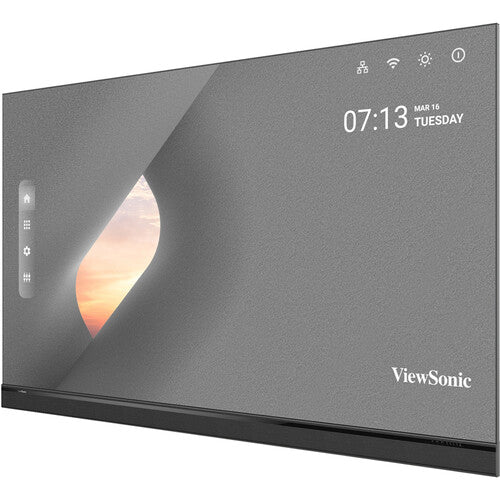

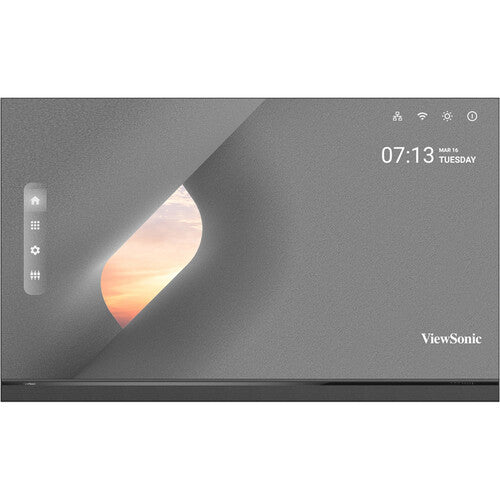

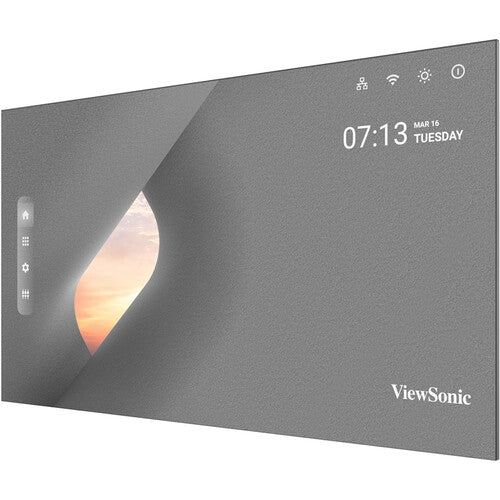

ViewSonic LDM136-151 136" Full HD All-in-One Direct-View LED Display

Product Overview

The ViewSonic LDM136-151 is a 136" all-in-one direct view LED display designed for conference rooms, boardrooms, and mid-size presentation spaces where a professional large-format display is required without the installation complexity of modular LED video walls. With a 1.56mm pixel pitch and native 1920 x 1080 Full HD resolution, it delivers crisp imagery at viewing distances starting at approximately 5 feet, making it the most pixel-dense model in the LDM series. The integrated all-in-one architecture eliminates the need for an external video wall processor, and the detachable control bar supports clean wall-mounted installations. Rated for 24/7 commercial operation, the LDM136-151 is suited for permanent deployments in conference centers, corporate headquarters, and educational institutions.

Product Description

The LDM136-151 measures 119.3" wide by 67.1" tall with a 31mm ultra-slim profile. Glue-on-Board (GOB) surface treatment encapsulates the LED array in a protective resin layer, providing IP54 dust and moisture resistance and improved surface durability relative to bare LED panels. The display runs Android 9.0 on a quad-core RK3399 processor with 4GB DDR4 RAM and 32GB internal storage, enabling standalone digital signage playback and app-based workflows without an attached PC. Built-in dual-band Wi-Fi and pre-installed vCast software support wireless content sharing from multiple devices simultaneously, including Picture-by-Picture from up to four sources and Picture-in-Picture for overlay content. AirPlay and Google Cast are natively supported. Crestron control, LAN IP control, RS-232 serial control, and ViewSonic Manager integration allow AV integrators and IT administrators to manage the display remotely within larger facility systems. Four HDMI 2.0 inputs with HDCP 2.2 handle any current-generation video source. Dual 30W integrated speakers deliver presentation audio to the room, with S/PDIF and 3.5mm audio outputs available for professional audio systems. Front hot-swap LED modules with the included vacuum suction tool enable field maintenance without rear wall access, reducing service time and labor cost.

Key Features

• 136" Direct View LED at 1.56mm Pixel Pitch — Highest pixel density in the LDM series; minimum viewing distance of approximately 5 feet; suited for boardrooms and conference rooms.
• Full HD Resolution (1920 x 1080) — 1080p native resolution with 13-bit grayscale for smooth gradients in video and presentation graphics.
• 600 Nits / 6,500:1 Contrast Ratio — Bright, high-contrast display visible in mixed and high-ambient-light environments; 100-level brightness control.
• GOB Surface Treatment with IP54 — Resin encapsulation protects LED array from dust and moisture; appropriate for boardrooms, lobbies, and high-traffic areas.
• 24/7 Commercial Operation Rating — Designed for permanent continuous-operation deployments in commercial facilities.
• All-in-One Architecture — Integrated power and image processing; no external video wall processor required.
• Detachable Control Bar (up to 30ft) — Mounts up to 10 meters from the display for ADA-compliant, uncluttered wall installations.
• Front Hot-Swap LED Modules — Front-accessible for field service; vacuum tool included; auto-configures on installation.
• Built-in Wi-Fi + vCast Wireless Sharing — Multi-source wireless presentation with PBP (4 sources) and PIP; AirPlay and Google Cast supported.
• Crestron / LAN / RS-232 Control — Compatible with major commercial AV control systems; ViewSonic Manager for cloud-based fleet management.
• Dual 30W Integrated Speakers — Room-fill audio for presentations; S/PDIF and 3.5mm outputs for professional audio distribution.
• Android 9.0 Embedded OS — Standalone digital signage capability; 4GB RAM, 32GB storage, network CMS compatible.
• 100,000-Hour LED Lifespan — Commercial-grade LED longevity for multi-year permanent installations.
• 31mm Ultra-Slim Profile — Near-flush wall mount at 31mm; 53mm with wall mount hardware; ADA compliant.

Typical Applications

• Corporate boardrooms and executive conference rooms
• University and K-12 classroom and lecture room displays
• Corporate lobby and reception digital signage
• Government and municipal meeting rooms
• Training centers and simulation rooms
• Hospitality conference suites

Technical Specifications
