ViewSonic LDC027‑250 P2.5 All‑in‑One LED Display

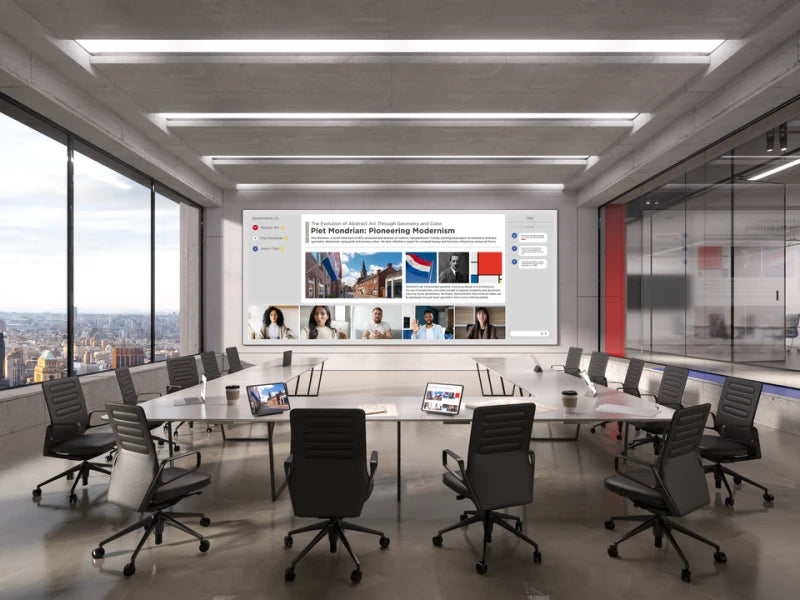

The ViewSonic LDC027‑250 is a 27‑inch cabinet module with a 2.5 mm pixel pitch, designed for building customizable direct‑view LED video walls in configurations ranging across ultra‑wide, tall, or standard screen formats. It features an all‑in‑one design that integrates power, control, and display modules for simplified installation and streamlined operation. Built with “Glue‑on‑Board” (GOB) surface treatment, it provides protection against dust, moisture and impacts, making it suitable for high‑traffic public spaces such as lobbies, transportation hubs or retail environments. The ultra‑slim 31 mm chassis and detachable system control box allow for a virtually seamless screen‑to‑body ratio and a sleek architectural aesthetic. Use cases include digital signage walls, immersive brand displays, ultra‑wide conference backdrops, or facade installations.
Features Chart
| Feature | Benefit |
|---|---|
| 2.5 mm pixel pitch | Delivers crisp visuals at moderate viewing distances |
| All‑in‑one LED cabinet design | Simplifies setup and reduces complexity of multiple components |
| GOB surface treatment + IP54 front | Enhanced durability in public, semi‑outdoor, or busy areas |
| Ultra‑slim 31 mm depth | Elegant, design‑friendly installation with minimal framing |
| Detachable control box & LAN control | Easy maintenance and centralized management of display arrays |
| Native 16:9 cabinet aspect ratio | Simplifies 4K or FHD layout configurations |
Specifications Table
| Specification | Detail |
|---|---|
| Pixel pitch | 2.5 mm |
| Brightness (typical) | 600 nits |
| Contrast ratio | ~6,500 : 1 |
| Cabinet size | 600 × 337.5 mm (W×H) |
| Cabinet depth | ~31 mm |
| Cabinet resolution | 240 × 135 pixels |
| Viewing angles | 170° horizontal / 170° vertical |
| LED lifetime | ~100,000 hours |
| Ingress protection | IP54 (front) |
| Operation environment | Commercial, 24/7 rated |
