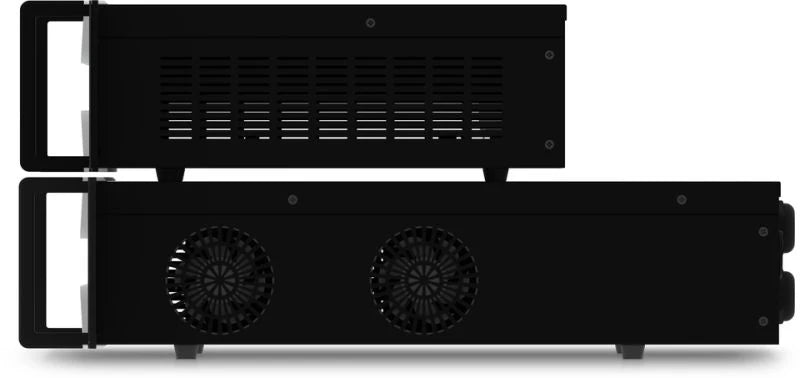

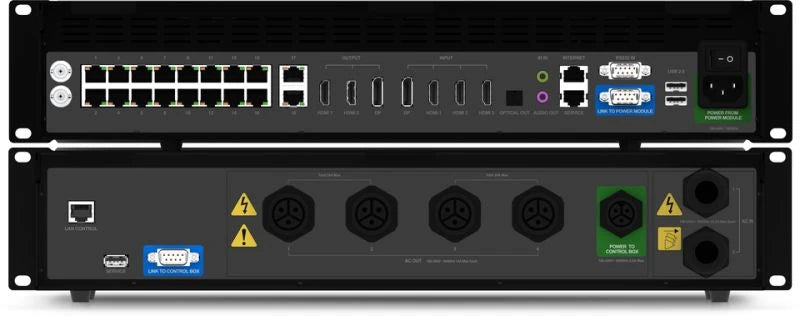

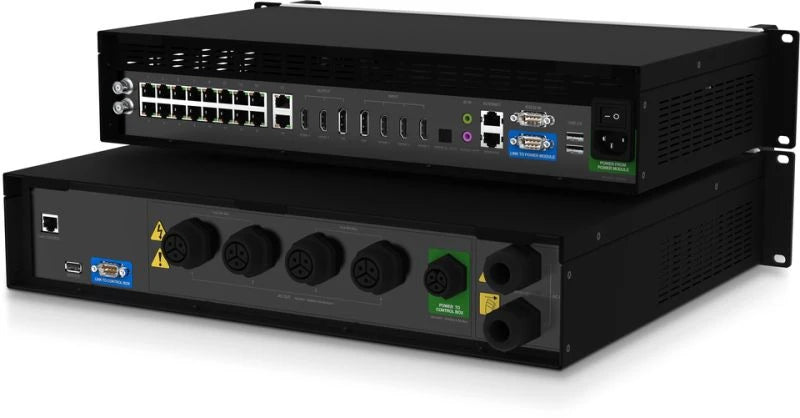

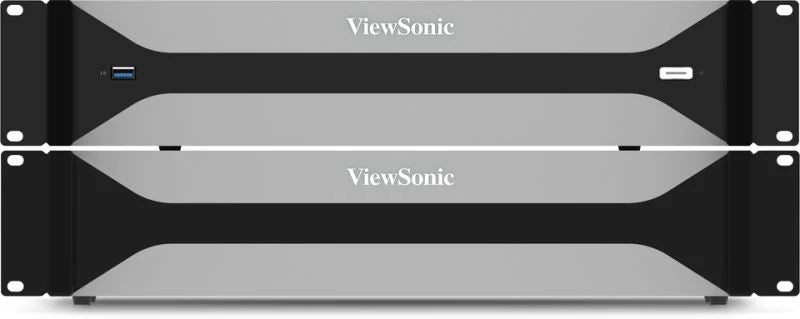

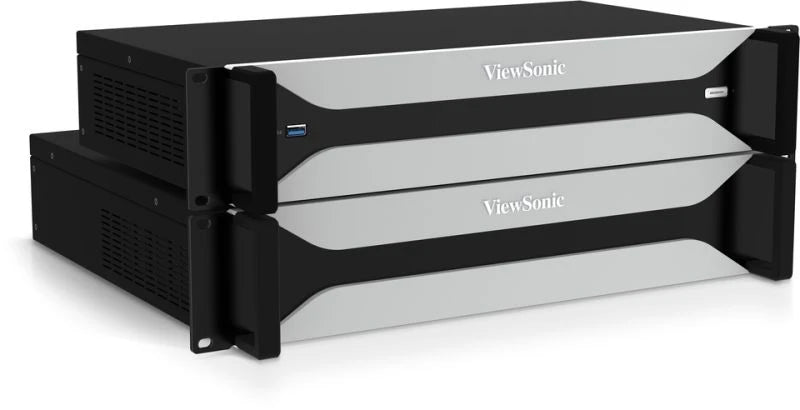

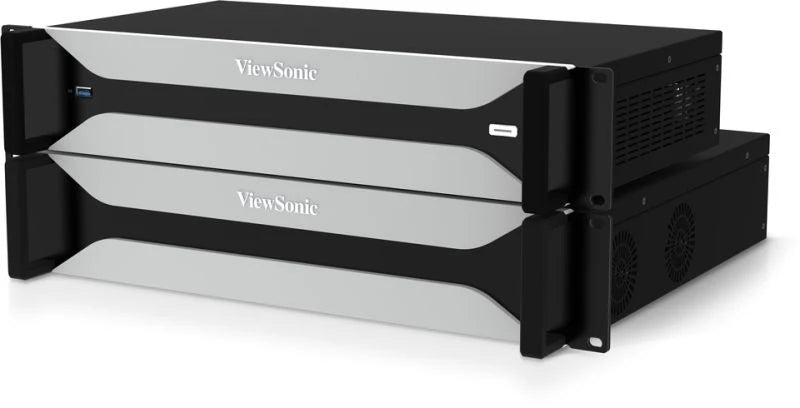

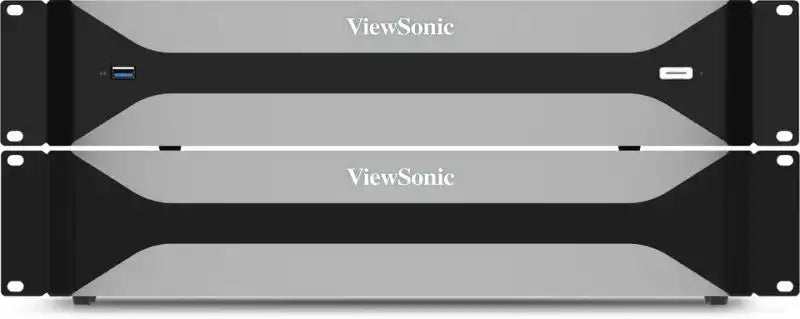

ViewSonic LD-SCB-023 Rack Control Box Without Speaker for LDC027 Series / LDC031 Series, Black
ViewSonic LD-SCB-023 Rack Control Box Without Speaker for LDC027 Series / LDC031 Series, Black is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or just need expert advise? Give us a call at 1-888-230-3661 or LiveChat below. Purchasing 1 or 100, there may be greater savings beyond the advertised price.
ViewSonic LD-SCB-023 Rack Control Box Without Speaker for LDC027 Se...
The ViewSonic LD-SCB-023 is a professional 4U rack-mounted control box designed to provide a centralized system solution for large-format LED display installations. It combines power management, signal distribution, and system control into a single unit, simplifying installation and reducing operational complexity.
Constructed with precision for commercial and broadcast applications, this control box supports LAN and RS-232 protocols, allowing seamless remote management and integration with automation systems. Multiple input and output options, including HDMI, DisplayPort, USB, and AC power, ensure flexible connectivity for complex AV setups.
Tailored specifically for ViewSonic’s LDC027 and LDC031 Series all-in-one LED displays, the LD-SCB-023 delivers optimized performance, reliable signal synchronization, and a clean, professional rack-mounted appearance suitable for corporate, control room, and large-venue environments.
Features Chart
| Feature | Benefit |
|---|---|
| 4U rack-mount design | Fits easily into professional AV rack systems |
| Integrated power and signal management | Simplifies installation and reduces cable clutter |
| LAN and RS-232 control support | Enables remote monitoring and system control |
| Multiple connectivity options | Supports HDMI, DP, USB, and AC power outputs |
| Synchronized system power control | Allows unified on/off operation for connected displays |
| Designed for LDC027 and LDC031 Series | Ensures full compatibility and optimized performance |
| Durable metal construction | Provides long-lasting reliability in demanding environments |
Specifications Table
| Specification | Detail |
|---|---|
| Model | LD-SCB-023 |
| Form Factor | 4U rack-mount |
| Color | Black |
| Compatible Display Series | LDC027 Series / LDC031 Series |
| Processor | Embedded RK3399 |
| Memory | 4 GB DDR4 |
| Storage | 32 GB (approximately 26 GB available) |
| Maximum Supported Resolution | Up to 7680 × 4320 pixels |
| Control Interfaces | LAN, RS-232, IR In, USB |
| Video Inputs | HDMI, DisplayPort |
| Power Output | 12.32 kW at 220V / 6.16 kW at 110V |
| Dimensions (W×H×D) | 482.6 × 93 × 280.4 mm |
| Weight | Control box 4.1 kg; power module 8.7 kg |
| Construction Material | Metal |
| Operating Environment | Designed for commercial and broadcast use |
| Warranty | Standard limited warranty |
