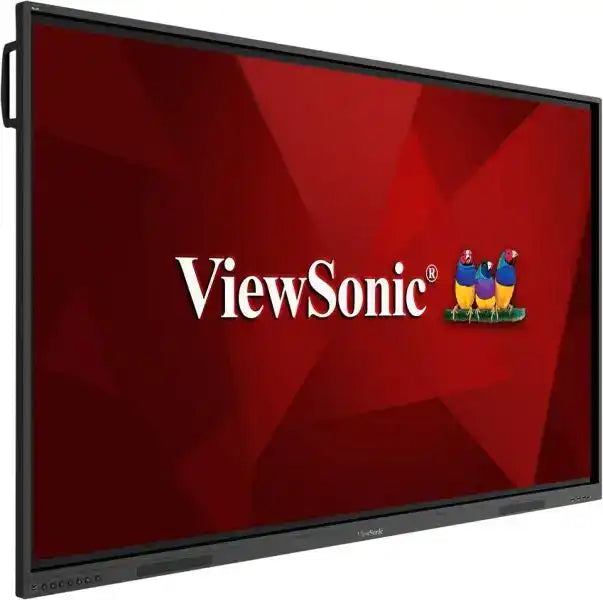

Viewsonic IFP86G1 86" ViewBoard 4K Interactive Flat Panel

Product Overview

The ViewSonic IFP86G1 is an 86-inch 4K UHD ViewBoard interactive flat panel from the G1 Series, engineered as a Bring Your Own Device (BYOD) collaboration display for conference rooms, training rooms, and commercial meeting spaces that standardize on external compute. Unlike embedded-OS ViewBoard models, the IFP86G1 has no built-in operating system—it is designed to work with an organization's existing compute devices via USB-C plug-and-play or an OPS slot-in PC, which keeps sensitive data on connected devices rather than stored on the display. With 40-point touch in Windows mode, USB-C with 65W power delivery, and compatibility with Windows, EDLA, and Linux slot-in PCs, the IFP86G1 provides a flexible, upgradable interactive display platform that adapts to the computing environment rather than dictating it.

Product Description

The IFP86G1's BYOD design philosophy addresses a specific deployment scenario: organizations that prefer to keep application data and credentials on managed compute devices, not stored on the display panel itself. This is common in government agencies, financial services firms, legal environments, and healthcare organizations with strict data governance policies. By routing all compute through a connected laptop or a slot-in PC in the OPS bay, the display acts as a high-resolution touch interface with no persistent data footprint of its own.

USB-C plug-and-play is the primary input method for laptop-driven workflows. A single USB-C cable from a connected laptop or desktop delivers video (DisplayPort 1.2), touch passthrough, data, Ethernet (10/100M), and up to 65W power delivery—eliminating cable clutter and reducing presenter setup time to seconds. This is particularly effective in huddle rooms and smaller conference spaces where AV simplicity is a priority.

The OPS slot supports slot-in PC modules in Windows, EDLA (Google Play Store and Workspace), or FreeDOS/UEFI Shell configurations. An EDLA-certified slot-in PC unlocks Google Workspace integration and advanced myViewBoard whiteboarding capabilities through the Google Play Store. A Windows slot-in PC provides a familiar desktop environment for organizations standardized on Microsoft 365 and Windows-based applications. This gives AV integrators multiple compute configuration paths for a single display SKU, simplifying procurement and standardization across varied client environments.

The 40-point Ultra Fine Touch IR system in Windows mode (20 points in Android) is the highest touch density available in the G1 platform. The 9H hardness anti-glare coating provides surface durability appropriate for high-traffic interactive use. A 4000:1 static contrast ratio (6000:1 dynamic) on the 86-inch 4K panel at 400 nits produces image quality appropriate for both presentation content and fine detail work like engineering drawings or financial spreadsheets.

SmartPort USB functionality routes USB peripherals connected via any input source to the display's front-facing USB ports, maintaining peripheral access without rewiring. An integrated light sensor adjusts display brightness based on ambient room lighting conditions—an automated energy management feature relevant for rooms with variable natural light. A camera plate at the top of the display accommodates a conference camera for video conferencing integration.

Key Features

• BYOD Design — No Embedded OS — No persistent data storage on the display; all compute and data remain on connected laptops or slot-in PCs for enhanced data security and governance compliance.
• USB-C Plug-and-Play — Single USB-C cable delivers DisplayPort 1.2 video, touch, data, Ethernet (10/100M), and up to 65W power delivery from a connected device.
• 40-Point Ultra Fine Touch (Windows) — High-density IR touch with 9H anti-glare coating for multi-user interactive collaboration and precise annotation.
• OPS Slot-In PC Bay — Supports Windows, EDLA (Google Play/Workspace), and FreeDOS slot-in PCs for flexible compute integration within the display chassis.
• 86" 4K UHD Panel — 3840x2160 at 400 nits, 4000:1 contrast ratio, and 178° H/V viewing angles for high-quality large-room visibility.
• SmartPort USB — Routes USB from any active input source to front-panel ports, maintaining front-of-display peripheral access in any compute configuration.
• LAN Pass-Through — 10/100/1000M RJ45 with LAN sharing between display and slot-in PC on a single network cable run.
• Light Sensor — Automatic brightness adjustment based on ambient room lighting for energy management and viewing comfort.
• 3x HDMI 2.0 Inputs — HDMI 1 and 3 support CEC; HDMI 2 supports CEC and ARC for audio return from the display's internal speakers.
• Camera Plate Included — Top-of-display camera mount for attaching a conference camera without additional mounting hardware.
• RS-232C and RJ45 Control — Serial and IP-based AV control for integration with Crestron, AMX, Extron, and other room automation platforms.
• 50,000-Hour Backlight Life — Rated for long-term commercial deployment with low maintenance overhead.

Typical Applications

• Conference room
• Boardroom
• Huddle room
• Training room
• Multi-purpose room
• Commercial meeting space
• Government space

Technical Specifications
