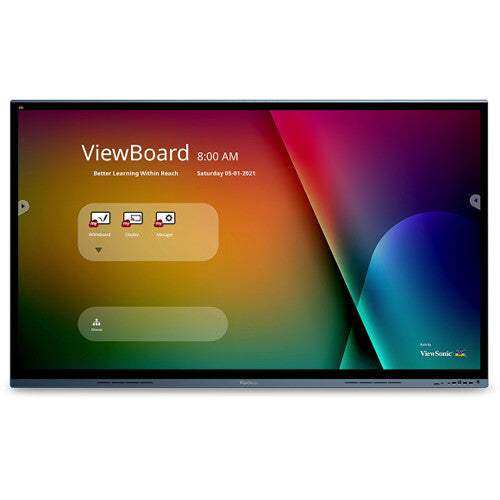

The ViewSonic ViewBoardIFP7562 75" 4K Interactive Display enables collaboration and innovation in a range of environments, from executive boardrooms to huddle spaces. Designed to help teams connect, collaborate, and create, this digital whiteboard delivers what you need to move your ideas forward. Featuring a bezel-less projected capacitive (PCAP) touchscreen, this display utilizes a 4K UHD resolution for detailed views. Additionally, the accurate interactive screen provides for a natural and responsive handwriting experience: using fingers, styli, or both, multiple users can simultaneously write or draw on the huge ViewBoard panel. What's more, meetings and presentations start fast thanks to convenient one-cable USB Type-C connectivity with up to 65W of power delivery.
Features
- 75" LCD PCAP Touchscreen
- 4K UHD (3840 x 2160) Native Resolution
- 350 nits Brightness
- 20-Point Capacitive Touch & Dual Styli
Specs
Display Size |
75"
|
Native Resolution |
3840 x 2160
|
Maximum Brightness |
350 nits / cd/m2
|
Touchscreen |
Yes, Projected Capacitive
|
Inputs |
4x HDMI 2.0
|
Outputs |
1x HDMI 1x 1/8" / 3.5 mm (Analog Audio) 1x TOSLINK Optical
|
USB I/O |
5x USB-A 3.0 / 3.1/3.2 Gen 1 1x USB-A 2.0 1x USB-C 3.0 / 3.1/3.2 Gen 1 2x USB-B (Unspecified Version) (Touchscreen Control)
|
Ethernet I/O |
2x RJ45 Gigabit Ethernet
|
Other I/O |
1x Unspecified Connector Type Serial (RS-232C)
|
Built-In Speakers |
Yes, 3
|
Display
Display Size |
75"
|
Panel Type |
LCD
|
Aspect Ratio |
16:9
|
Display Orientation |
Landscape
|
Native Resolution |
3840 x 2160
|
Maximum Brightness |
350 nits / cd/m2
|
Lighting System |
Backlit LED
|
HDR Support |
No
|
Contrast Ratio |
5000:1
|
Response Time |
8 ms (GtG)
|
Refresh Rate |
60 Hz
|
Viewing Angle (H x V) |
178 x 178°
|
Surface
Touchscreen |
Yes, Projected Capacitive
|
Multi-Touch Points |
20
|
Hardness Rating |
9H
|
Connectivity
Inputs |
4x HDMI 2.0
|
Outputs |
1x HDMI 1x 1/8" / 3.5 mm (Analog Audio) 1x TOSLINK Optical
|
HDCP Support |
Yes
|
NFC |
No
|
USB I/O |
5x USB-A 3.0 / 3.1/3.2 Gen 1 1x USB-A 2.0 1x USB-C 3.0 / 3.1/3.2 Gen 1 2x USB-B (Unspecified Version) (Touchscreen Control)
|
Ethernet I/O |
2x RJ45 Gigabit Ethernet
|
Other I/O |
1x Unspecified Connector Type Serial (RS-232C)
|
Number of OPS/Expansion Slots |
1
|
Ambient Light Sensor |
No
|
Multi-Input Support (PIP/PBP) |
No
|
Speaker
Built-In Speakers |
Yes, 3
|
Speaker Configuration |
2.1-Channel
|
Hardware
Smart TV |
Yes, Android
|
CPU |
Quad-Core: Up to 1.2 GHz Cortex A73
|
Storage |
32 GB
|
RAM |
3 GB
|
Built-In Mic |
Yes
|
Electrical
Power Consumption |
Maximum: 490.0 W Typical: 130.0 W
|
Input Power |
100 to 240 VAC, 50 / 60 Hz
|
