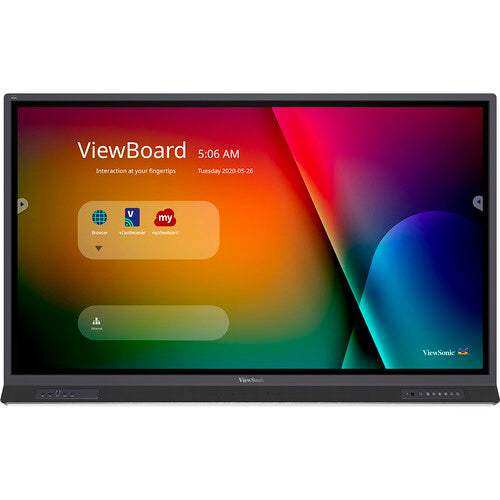

The ViewBoard IFP6562 65" 4K Interactive Display enables collaboration and innovation in a range of environments, from executive boardrooms to huddle spaces. Designed to help teams connect, collaborate, and create, this digital whiteboard delivers what you need to move your ideas forward. Featuring a bezel-less projected capacitive (PCAP) touchscreen, this display utilizes a 4K UHD resolution for detailed views. Additionally, the accurate interactive screen provides for a natural and responsive handwriting experience: using fingers, styli, or both, multiple users can simultaneously write or draw on the huge ViewBoard panel. What's more, meetings and presentations start fast thanks to convenient one-cable USB Type-C connectivity with up to 65W of power delivery.
Features
- 65" LCD PCAP Touchscreen
- 4K UHD (3840 x 2160) Native Resolution
- 350 nits Brightness
- 20-Point Capacitive Touch & Dual Styli
Specs
| Display Size |
65"
|
| Native Resolution |
3840 x 2160
|
| Maximum Brightness |
350 nits / cd/m2
|
| Touchscreen |
Yes, Projected Capacitive
|
| Inputs |
4x HDMI 2.0
|
| Outputs |
1x HDMI
1x 1/8" / 3.5 mm (Analog Audio)
1x TOSLINK Optical
|
| USB I/O |
5x USB-A 3.0 / 3.1/3.2 Gen 1
1x USB-A 2.0
1x USB-C 3.0 / 3.1/3.2 Gen 1
2x USB-B (Unspecified Version) (Touchscreen Control)
|
| Ethernet I/O |
2x RJ45 Gigabit Ethernet
|
| Other I/O |
1x Unspecified Connector Type Serial (RS-232C)
|
| Built-In Speakers |
Yes, 3
|
Display
| Display Size |
65"
|
| Panel Type |
LCD
|
| Aspect Ratio |
16:9
|
| Display Orientation |
Landscape
|
| Native Resolution |
3840 x 2160
|
| Maximum Brightness |
350 nits / cd/m2
|
| Lighting System |
Backlit LED
|
| HDR Support |
No
|
| Contrast Ratio |
5000:1
|
| Response Time |
8 ms (GtG)
|
| Refresh Rate |
60 Hz
|
| Viewing Angle (H x V) |
178 x 178°
|
Surface
| Touchscreen |
Yes, Projected Capacitive
|
| Multi-Touch Points |
20
|
| Hardness Rating |
9H
|
Connectivity
| Inputs |
4x HDMI 2.0
|
| Outputs |
1x HDMI
1x 1/8" / 3.5 mm (Analog Audio)
1x TOSLINK Optical
|
| HDCP Support |
Yes
|
| NFC |
No
|
| USB I/O |
5x USB-A 3.0 / 3.1/3.2 Gen 1
1x USB-A 2.0
1x USB-C 3.0 / 3.1/3.2 Gen 1
2x USB-B (Unspecified Version) (Touchscreen Control)
|
| Ethernet I/O |
2x RJ45 Gigabit Ethernet
|
| Other I/O |
1x Unspecified Connector Type Serial (RS-232C)
|
| Number of OPS/Expansion Slots |
1
|
| Ambient Light Sensor |
No
|
| Multi-Input Support (PIP/PBP) |
No
|
Speaker
| Built-In Speakers |
Yes, 3
|
| Speaker Configuration |
2.1-Channel
|
Hardware
| Smart TV |
Yes, Android
|
| CPU |
Quad-Core: Up to 1.2 GHz Cortex A73
|
| Storage |
32 GB
|
| RAM |
3 GB
|
| Built-In Mic |
Yes
|
Electrical
| Power Consumption |
Maximum: 390.0 W
Typical: 115.0 W
|
| Input Power |
100 to 240 VAC, 50 / 60 Hz
|
General
| Operating Conditions |
32 to 104°F / 0 to 40°C at 10 to 90% Humidity
|
| Certifications |
CB, CE, ENERGY STAR, EPEAT, ErP, FCC, Mexico Energy, REACH, UKCA, cTUVus
|
| VESA Mounting-Hole Pattern |
600 x 400 mm
|
| Lighting Lifespan |
50000 Hours
|
| Environmental Resistance |
No
|
| Impact Resistance |
No
|
| Lock Slot |
No
|
| Bezel Thickness |
Bezel Less
|
| Dimensions |
58.7 x 35.7 x 3.1" / 149.1 x 90.7 x 7.9 cm
|
| Weight |
82.5 lb / 37.4 kg
|
