Product Overview
The ViewSonic TeamJoin TRS10-UB IFP105UW is a premium Microsoft Teams Rooms certified bundle that pairs the 105-inch IFP105UW ultrawide interactive flat panel with the MPC310-W31-TU Intel 12th Gen compute engine, MRC1010-TN touch console, and UMB202 4K video bar. This flagship MTRC-class bundle delivers the most immersive and fully equipped Teams Rooms collaboration environment in the ViewSonic lineup, combining large-format interactive touch with professional 4K video conferencing in a single certified package. Ideal for flagship boardrooms, executive suites, and premium enterprise training centers.

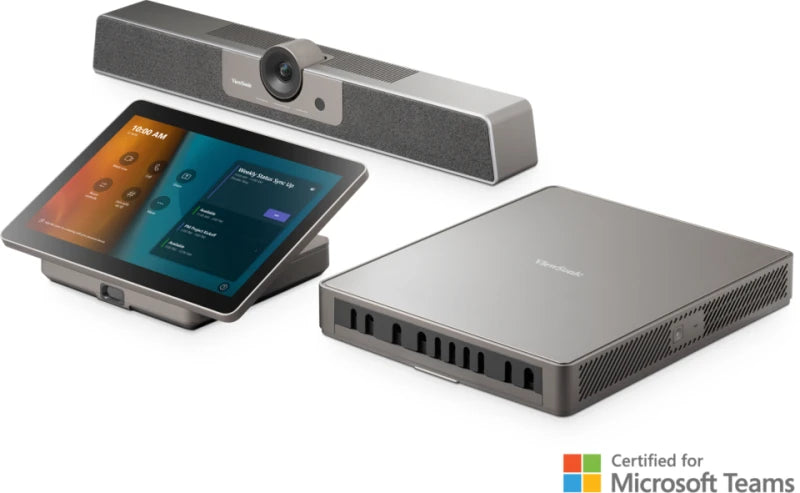

Bundle Components
- IFP105UW — 105-inch, ultrawide, 4K UHD multi-touch interactive flat panel, commercial-grade

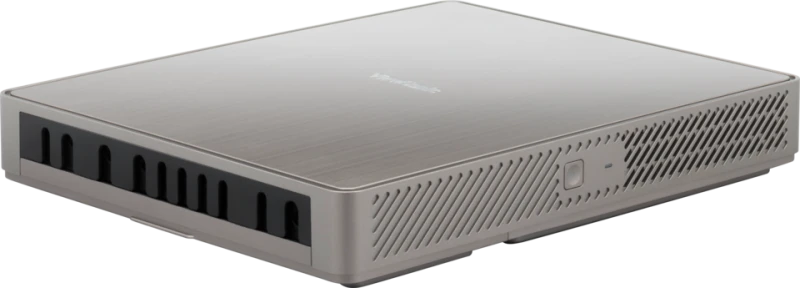

- MPC310-W31-TU — Intel 12th Gen Core i3-1220P compute engine, Windows 11 IoT Enterprise, TPM 2.0, Wi-Fi 6, Bluetooth 5.2

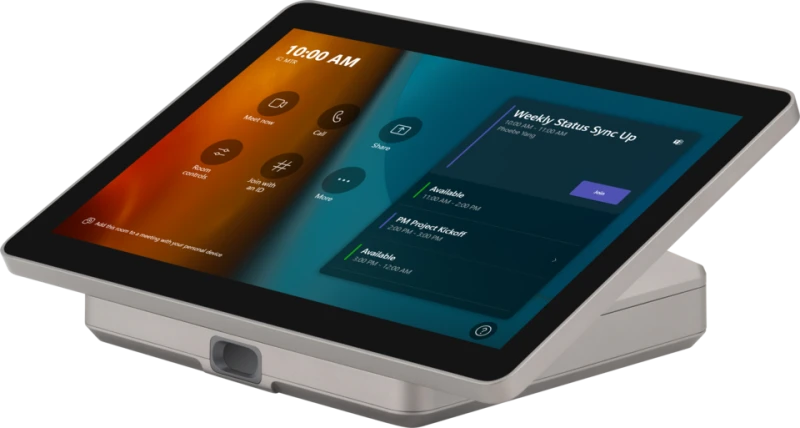

- MRC1010-TN — 10.1-inch Full HD touch scheduling console, HDMI BYOD ingest, human presence auto-wake

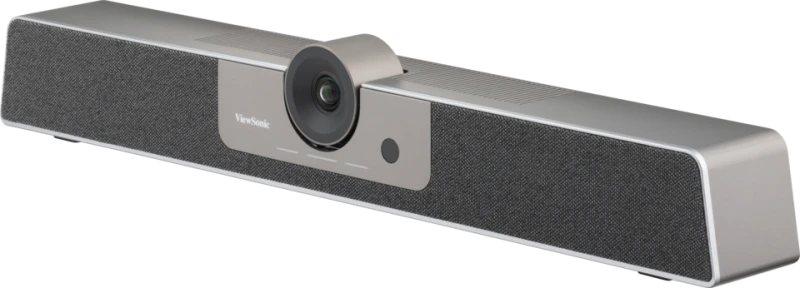

- UMB202 — 4K video bar, 120° FOV Sony sensor, AI auto-framing, 5× digital zoom, 6-mic beamforming array, 8W+3W speakers
Product Description
The TRS10-UB IFP105UW represents the top of the ViewSonic TeamJoin product line, placing a 105-inch ultrawide interactive display at the heart of a complete, certified Teams Rooms environment. The IFP105UW’s large-format multi-touch surface enables whiteboarding, annotation, and collaborative content interaction at a scale that transforms how large groups engage in meetings and training sessions. The UMB202 4K video bar provides AI auto-framing via Sony sensor, 5× ePTZ zoom, and Direction-of-Arrival tracking across a 6-mic beamforming array with integrated 8W+3W speakers—ensuring every remote and in-room participant is clearly seen and heard. The MPC310-W31-TU compute engine delivers Intel 12th Gen Core i3-1220P performance (10 cores, 4.4GHz turbo), 8GB DDR4, full TPM 2.0 security stack, Wi-Fi 6, and Bluetooth 5.2. The MRC1010-TN console manages scheduling, meeting join, BYOD sharing, and presence-based auto-wake. This bundle is for organizations that want the definitive Teams Rooms investment in their most important collaboration spaces.
Key Features
- 105-inch Ultrawide Interactive Display — Multi-touch IFP for whiteboarding, annotation, and collaborative interaction at maximum scale.
- Complete MTRC Certification — All four certified components in one bundle—single vendor, single warranty.
- UMB202 4K Video Bar — Sony sensor, 120° FOV, AI auto-framing, 5× zoom, DOA mic array, 8W+3W speakers.
- Intel 12th Gen Core + TPM 2.0 — 10-core processing, hardware security, Wi-Fi 6, Bluetooth 5.2.
- Pre-installed Teams Rooms — Windows 11 IoT Enterprise; immediate deployment with Intune/MDM compatibility.
- BYOD HDMI Ingest + Human Presence Auto-Wake — Frictionless guest access and energy-efficient room management.
Typical Applications
- Flagship boardrooms requiring interactive touch and complete video conferencing
- Premium executive suites and C-suite meeting rooms
- Enterprise and government training centers
- High-profile commercial collaboration spaces
System Specifications
| Display | IFP105UW — 105-inch, ultrawide, 4K UHD, multi-touch interactive |
| Compute Engine | MPC310-W31-TU — Intel Core i3-1220P (10 cores, 4.4GHz turbo), 8GB DDR4 |
| Operating System | Windows 11 IoT Enterprise (MTR pre-installed) |
| Security | TPM 2.0, Intel Threat Detection, Smart App Control |
| Connectivity | HDMI Out, USB-C (PD+data), USB 3.0, RJ45, Wi-Fi 6, BT 5.2 |
| Touch Console | MRC1010-TN — 10.1" FHD, 10-pt touch, HDMI BYOD ingest |
| Video Bar | UMB202 — 4K, Sony sensor, 120° FOV, AI auto-framing, 5× ePTZ zoom |
| Microphone | 6-mic beamforming array with DOA tracking |
| Speakers | 8W + 3W front-facing (UMB202) |
| Certification | Microsoft Teams Rooms Certified |
| Warranty | 3-year limited |
Frequently Asked Questions
Q: Is a Teams Rooms license required?
A: Yes. A Microsoft Teams Rooms Standard or Premium license must be assigned to the room account.
Q: Why choose an IFP interactive display over a standard CDE for Teams Rooms?
A: IFP displays provide multi-touch interactive capability for whiteboarding, annotation, and collaborative content editing directly on the screen. CDE displays are non-touch. Choose IFP for collaborative and training-focused environments.
Q: Is an additional microphone or camera required?
A: No. The UMB202 video bar provides the complete audio/video stack—camera, mic array, and speakers—in one device.
Q: What warranty is included?
A: All four components carry a 3-year limited ViewSonic warranty. Creation Networks provides first-line support.
Q: How does IT manage this device?
A: The MPC310-W31-TU runs Windows 11 IoT Enterprise, fully compatible with Microsoft Intune, SCCM, and enterprise MDM. TPM 2.0 provides hardware-based secure enrollment and device identity.
