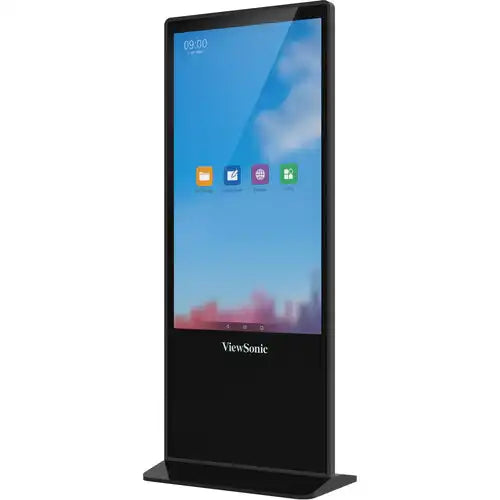

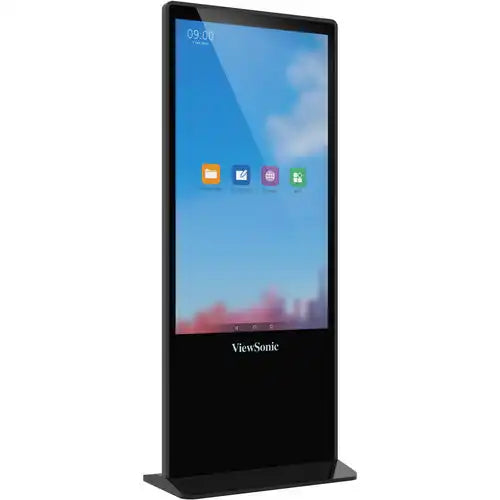

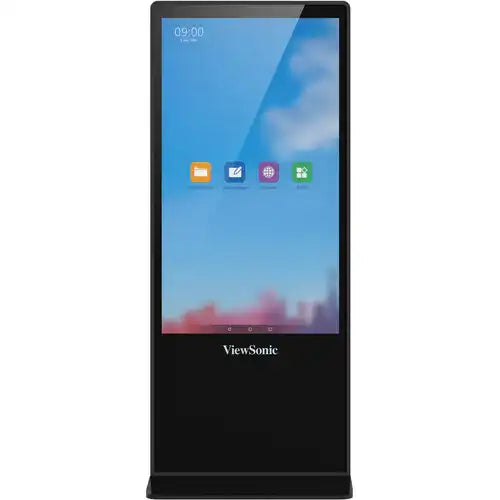

The ViewSonic EP5542T 55" UHD 4K Portrait Touchscreen Kiosk Display is a 10-point interactive, all-in-one, free-standing digital ePoster kiosk with a sleek, slim design. Designed for busy, high-traffic areas, such as shopping centers and transportation hubs, the EP5542T comes with a scratch-proof tempered glass faceplate for added durability. Featuring a UHD 4K resolution, 178° wide-angle viewing angles, and a 400-nit brightness, the EP5542T delivers customized multimedia messaging with vivid clarity. Photo and video files can be played back using the embedded quad-core SoC media player and 16GB of internal memory or add your own media player using the convenient media player cradle inside the lockable security door.
Features
- UHD 4K (2160 x 3840) Native Resolution
- LCD Panel with 10-Point IR Touch Control
- Compatible with Crestron, AMX & Others
- 3 x HDMI | 1 x DisplayPort | 1 x VGA
- 4000:1 Static Contrast Ratio
- 450 nits Brightness | 2% Haze Level
- Digital Signage Support with Android SoC
- 16/7 Duty Cycle | Portrait Kiosk
- Built-In Media Player
- Lockable Security Door for Connections
Specs
Display Size |
55"
|
Native Resolution |
2160 x 3840
|
Maximum Brightness |
450 nits / cd/m2
|
Touchscreen |
Yes, Infrared (IR)
|
Inputs |
3x HDMI 2.0 1x DisplayPort 1x DE-15/DB-15 (VGA) 1x 1/8" / 3.5 mm (Analog Audio)
|
Outputs |
1x 1/8" / 3.5 mm (Analog Audio) 1x TOSLINK Optical (Digital Audio)
|
USB I/O |
3x USB-A 2.0 (Photo/Audio/Video) 2x USB-B 2.0 (Touchscreen Control)
|
Ethernet I/O |
1x RJ45 (Unspecified Ethernet)
|
Other I/O |
1x DE-9/DB-9 Serial (RS-232C) Control Input
|
Built-In Speakers |
Yes, 2x 10 W
|
Display
Display Size |
55"
|
Panel Type |
LCD
|
Aspect Ratio |
9:16
|
Display Orientation |
Portrait
|
Native Resolution |
2160 x 3840
|
Maximum Brightness |
450 nits / cd/m2
|
Lighting System |
Direct LED
|
HDR Support |
No
|
Contrast Ratio |
4000:1
|
Response Time |
9 ms (GtG)
|
Refresh Rate |
60 Hz
|
Color Support |
1.07 Billion Colors (10-Bit)
|
Viewing Angle (H x V) |
178 x 178°
|
Finish |
Anti-Glare / Matte
|
Surface
Touchscreen |
Yes, Infrared (IR)
|
Multi-Touch Points |
10
|
Hardness Rating |
7H
|
Haze Level |
2%
|
TV Tuner |
No
|
Connectivity
Inputs |
3x HDMI 2.0 1x DisplayPort 1x DE-15/DB-15 (VGA) 1x 1/8" / 3.5 mm (Analog Audio)
|
Outputs |
1x 1/8" / 3.5 mm (Analog Audio) 1x TOSLINK Optical (Digital Audio)
|
HDCP Support |
Yes
|
NFC |
No
|
USB I/O |
3x USB-A 2.0 (Photo/Audio/Video) 2x USB-B 2.0 (Touchscreen Control)
|
Ethernet I/O |
1x RJ45 (Unspecified Ethernet)
|
Other I/O |
1x DE-9/DB-9 Serial (RS-232C) Control Input
|
Multi-Input Support (PIP/PBP) |
No
|
Speaker
Built-In Speakers |
Yes, 2x 10 W
|
Speaker Configuration |
2-Channel
|
Hardware
Smart TV |
Yes, Android 8.0
|
Storage |
16 GB eMMC
|
RAM |
2 GB DDR4
|
OS Compatibility |
Computer: Windows / Linux / macOS Mobile: Android/iOS
|
Built-In Mic |
No
|
Supported File Formats
Supported Video File Types |
MKV, MOV, MP4, MPG, VOB
|
Supported Audio File Types |
AAC, MP3
|
Supported Photo File Types |
BMP, JPG, PNG
|
Electrical
Power Consumption |
Maximum: 149.0 W Typical: 126.0 W Standby: < 0.5 W
|
Input Power |
100 to 240 VAC, 50 / 60 Hz
|
Power Adapter Type |
Internal
|
General
Operating Conditions |
32 to 104°F / 0 to 40°C at 10 to 85% Humidity
|
Certifications |
BSMI, CB, CE, ENERGY STAR, ErP, FCC, RoHS, WEEE, cTUVus
|
VESA Mounting-Hole Pattern |
No
|
Lighting Lifespan |
30000 Hours
|
Lock Slot |
No
|
Duty Cycle |
16 Hours / 7 Days
|
Dimensions |
73.6 x 30.3 x 15.7" / 1870 x 768.5 x 400 mm (Kiosk)
|
Weight |
138.2 lb / 62.7 kg
|
