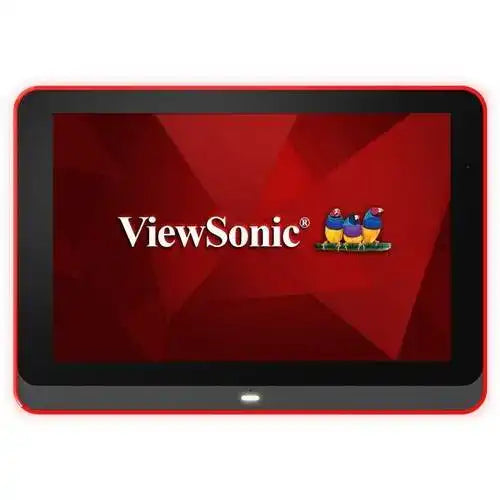

ViewSonic EP1052T-L – 10.1" WXGA Meeting Room Touch Controller and Scheduling Panel

Product Overview

The ViewSonic EP1052T-L is a 10.1-inch WXGA meeting room scheduling panel and touch controller designed for AV integrators and IT facilities teams deploying room booking and video conferencing control in corporate, government, and higher-education environments. With Power over Ethernet (PoE+) one-wire installation, NFC card reader, dual-band Wi-Fi, support for leading room scheduling platforms including EMS, Planon, Appspace, and Pronestor, and integrated halo lighting for at-a-glance room availability, the EP1052T-L simplifies meeting room management with minimal installation hardware.

Product Description

The EP1052T-L serves three distinct functions in a single device: a video conferencing touch controller for one-touch meeting join, a certified meeting room scheduling panel for room booking and availability display, and a communication signage panel for interactive on-demand messaging. For AV system designers, this consolidates what would otherwise require three separate devices at each room entrance into a single PoE-powered panel.

PoE+ installation means a single Ethernet cable delivers both network connectivity and power, eliminating the need for a local power outlet at each room door and significantly reducing installation cost and complexity across multi-room deployments. The NFC card reader enables tap-to-book room reservations and user authentication, while dual-band 802.11ac Wi-Fi supports wireless deployment in locations where Ethernet cabling is not practical.

The Signage Manager Express software pre-installed on the EP1052T-L provides content management for scheduling templates, room availability overlays, and digital signage content without requiring a separate CMS license for basic deployments. For enterprise IT teams, the panel supports SCEP, Android Enterprise API, ISO 27001, IEEE 802.1x, and network encryption for compliance with corporate security policies. The integrated halo LED ring provides visible room-available or room-occupied status from across a corridor.

Key Features

• 10.1-Inch Multi-Touch Scheduling Panel — 1280x800 WXGA touchscreen at 350 nits for clear room status and meeting controls at conference room entrances.
• PoE+ One-Wire Installation — Single Ethernet cable delivers both network and power, eliminating local power outlets and reducing installation cost per room.
• NFC Card Reader — Tap-to-authenticate and tap-to-book room reservations for secure, touchless room access management.
• Certified Room Scheduling Software Integration — Compatible with EMS, Planon, Appspace, Pronestor, and other leading room booking platforms.
• One-Touch Video Conferencing Join — Simplified meeting start for Teams, Zoom, and other UC platforms with a single tap from the room scheduling panel.
• Integrated Halo LED Status Light — Color-coded halo ring provides at-a-glance room available or occupied status visible from corridor distance.
• Dual-Band 802.11ac Wi-Fi — Wireless connectivity option for rooms without Ethernet cabling access.
• Signage Manager Express Pre-Installed — Built-in content management for scheduling overlays and digital signage without separate CMS licensing for standard deployments.
• Enterprise Security — SCEP, Android Enterprise API, ISO 27001, IEEE 802.1x, and network encryption for corporate security compliance.
• 16/7 Operation Rating — Commercial-grade panel rated for extended daily operation in busy enterprise environments.

Typical Applications

• Corporate conference room and meeting space scheduling panel and video conferencing touch controller
• Government space room booking and access control touchscreen display
• Higher-education facility meeting room scheduling panel deployment
• Commercial meeting space interactive room availability and booking display
• Multi-room enterprise meeting room management system endpoint

Technical Specifications

Frequently Asked Questions

What is the difference between the EP1052T-L, EP1052T-A, and EP1052T-H?
The EP1052T-L is the base model with NFC reader, PoE+, and dual-band Wi-Fi. The EP1052T-A adds an integrated camera and microphone for video conferencing capability. The EP1052T-H adds the camera, microphone, and an HID card reader for physical access control and badge-based authentication in addition to NFC.

Which room scheduling platforms does the EP1052T-L support?
The EP1052T-L is certified with EMS, Planon, Appspace, Pronestor, and other leading room booking and scheduling platforms. Contact Creation Networks for a full compatibility list for your specific scheduling software.

Does the EP1052T-L require a power outlet at each room?
No. PoE+ (802.3at) delivers both network connectivity and power over a single Ethernet cable, eliminating the need for a local power outlet at each conference room door.

Can the EP1052T-L be used without a scheduling software platform?
Yes. The pre-installed Signage Manager Express software supports basic digital signage and on-demand messaging without a third-party room scheduling platform for organizations that only need content display and basic availability signaling.

What is the warranty?
1-year limited warranty. Contact Creation Networks for extended warranty and service options.
