ViewSonic TeamJoin TRS10‑MTR Bundle with CDE9830 98″ 4K Display – Includes MPC310‑W31‑TU, MRC1010‑TN Touch Console, and 98″ 4K UHD Digital Display
ViewSonic TeamJoin TRS10‑MTR Bundle with CDE9830 98″ 4K Display – Includes MPC310‑W31‑TU, MRC1010‑TN Touch Console, and 98″ 4K UHD Digital Display is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
ViewSonic TeamJoin TRS10‑MTR Bundle with CDE9830 98″ 4K Display – I...
Product Overview

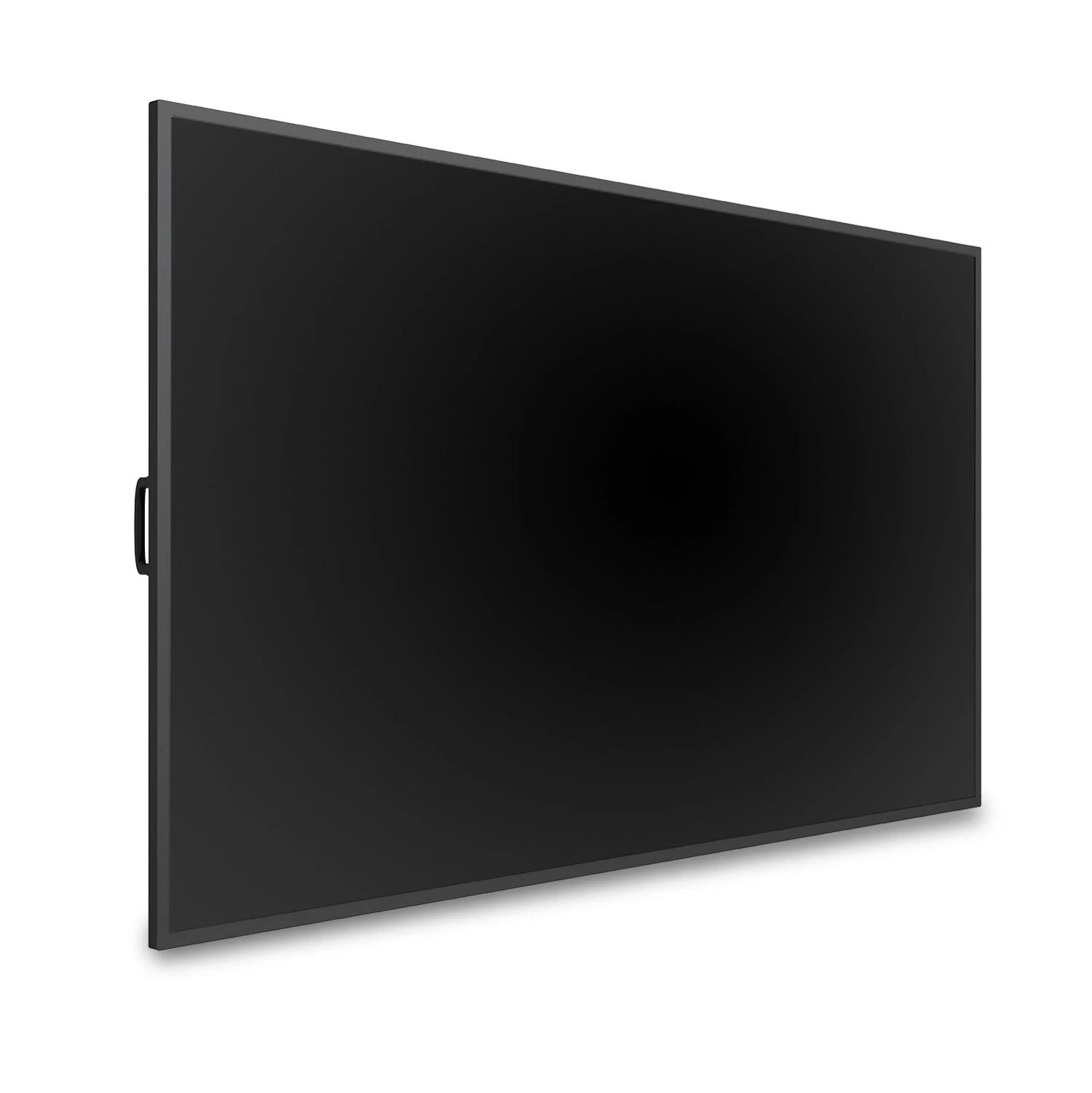

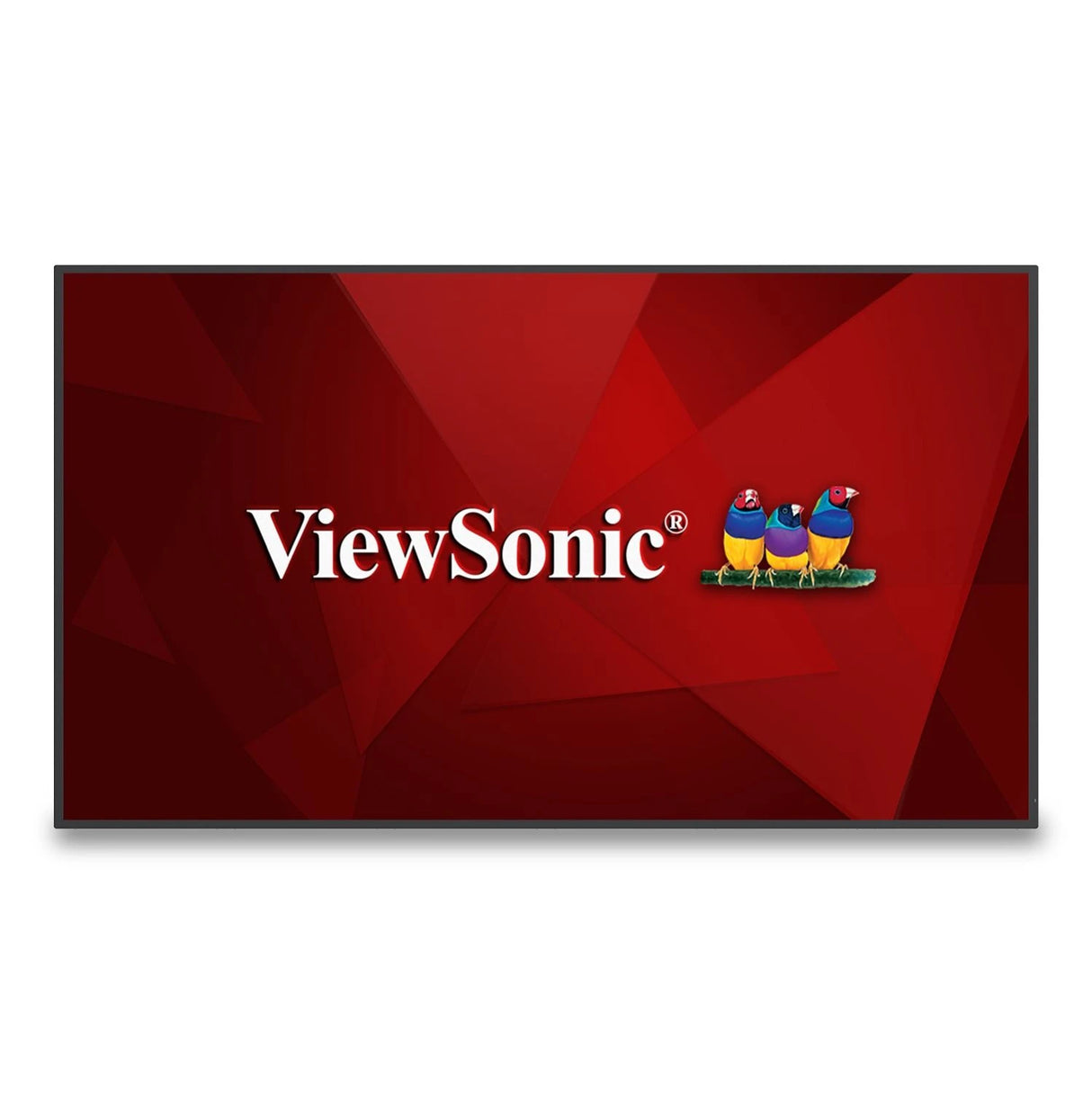

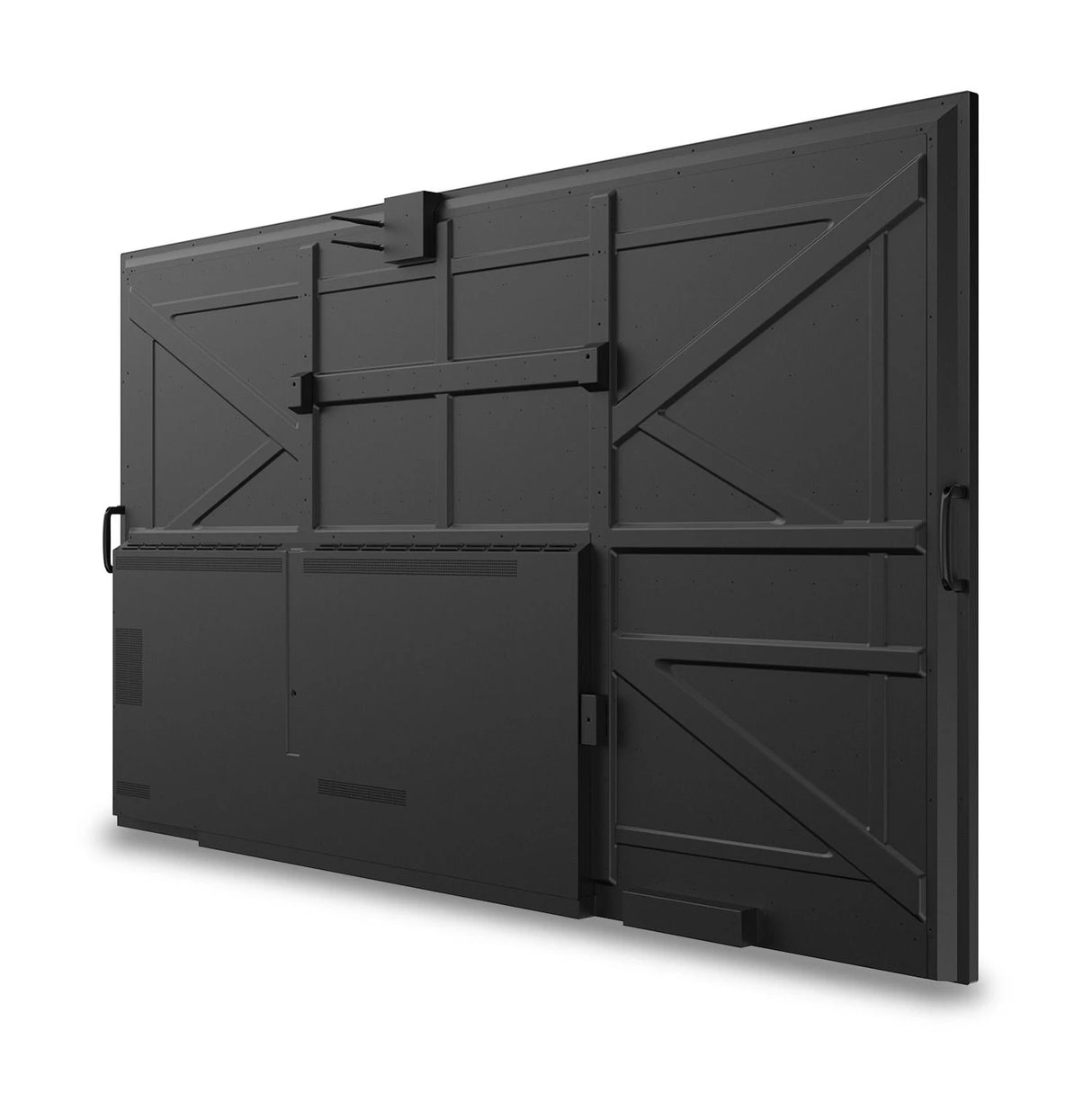

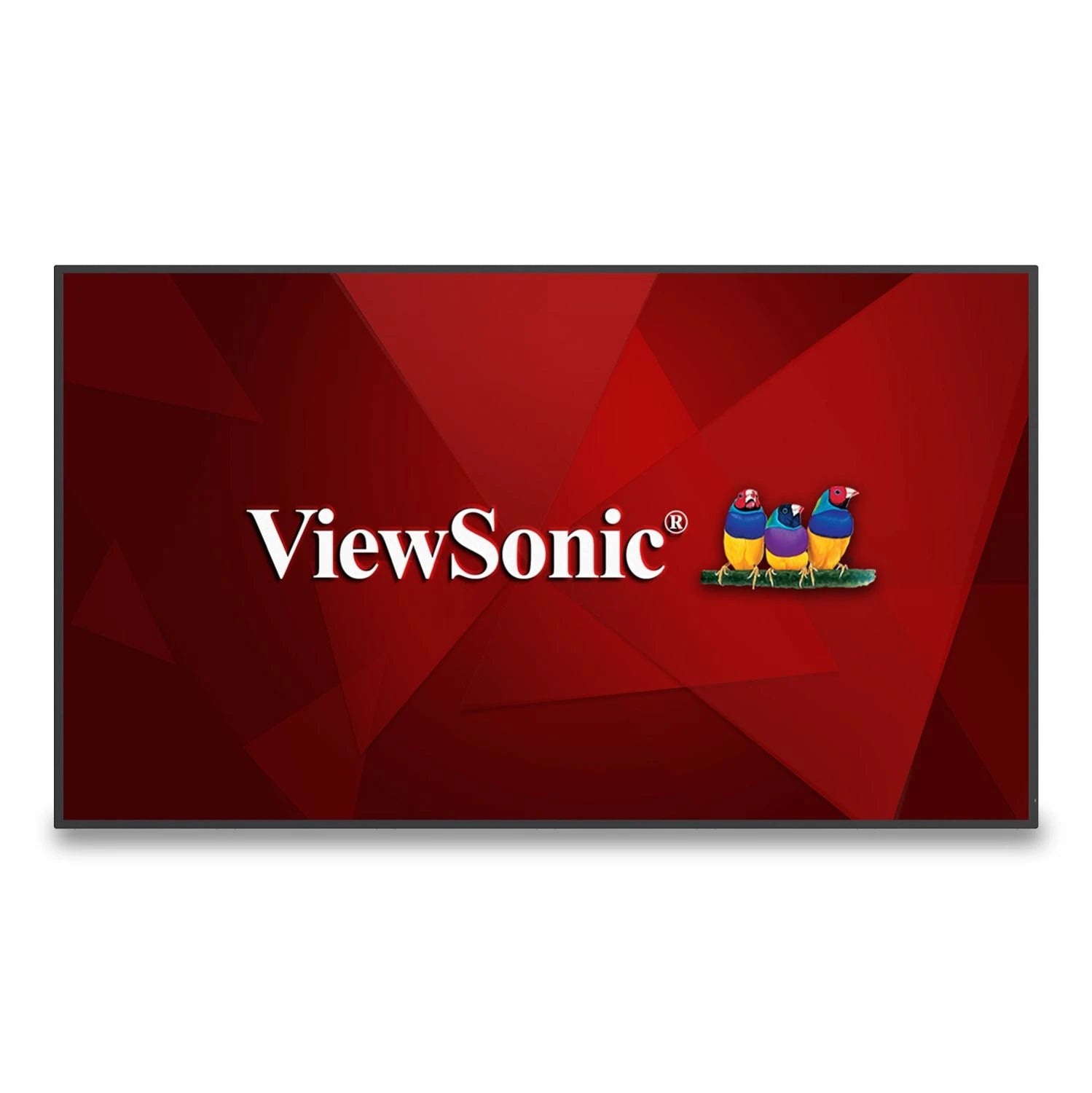

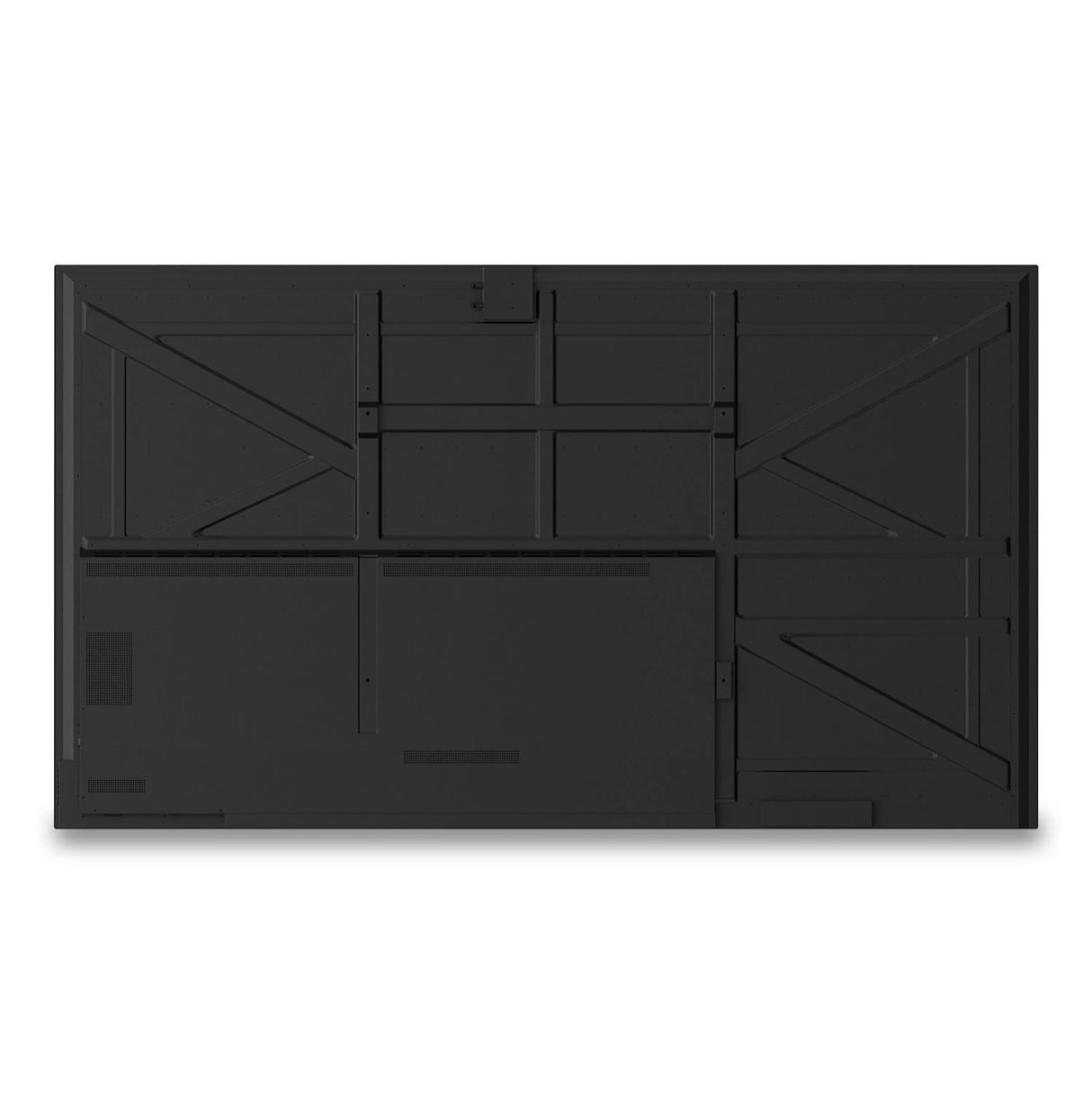

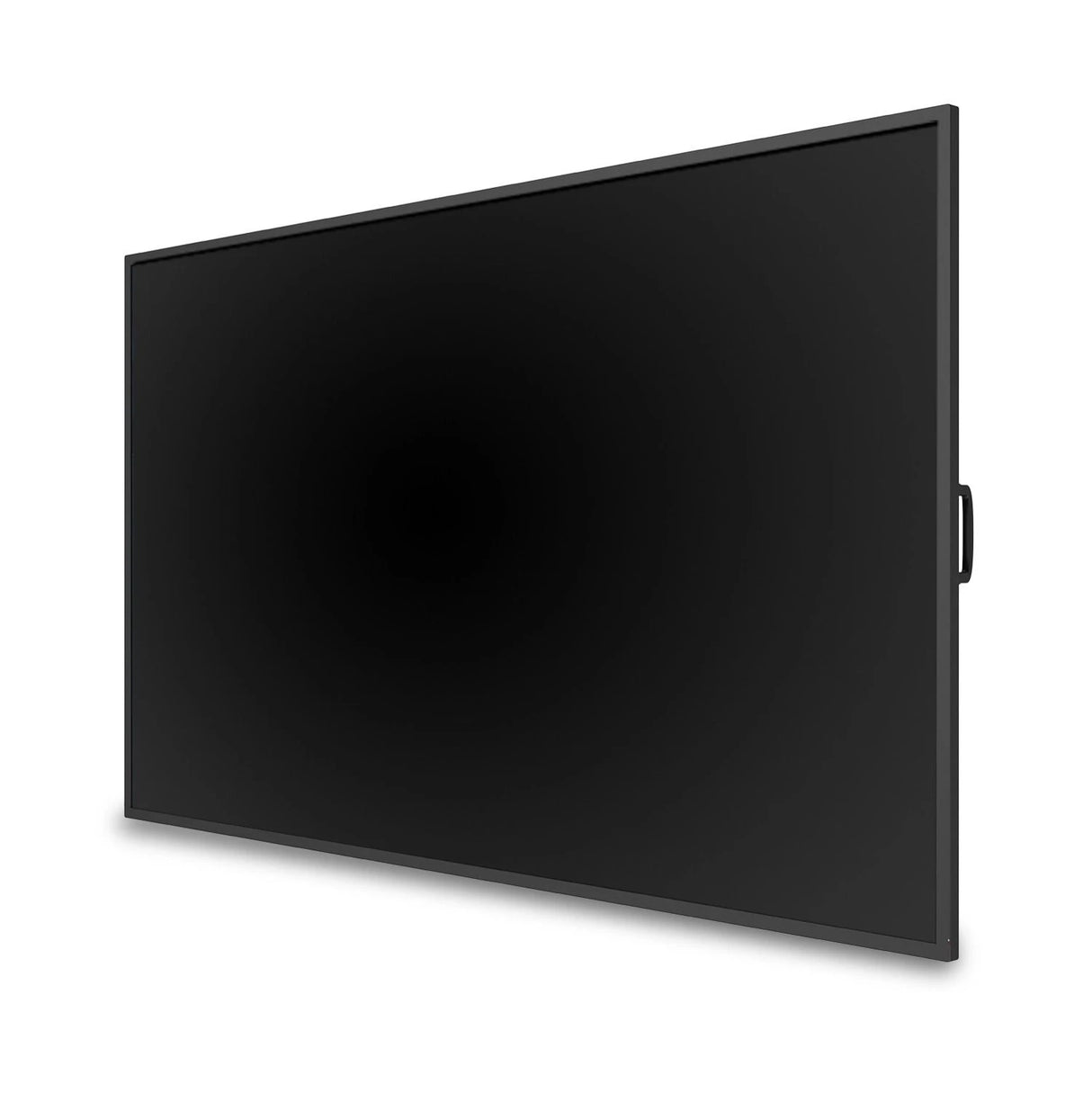

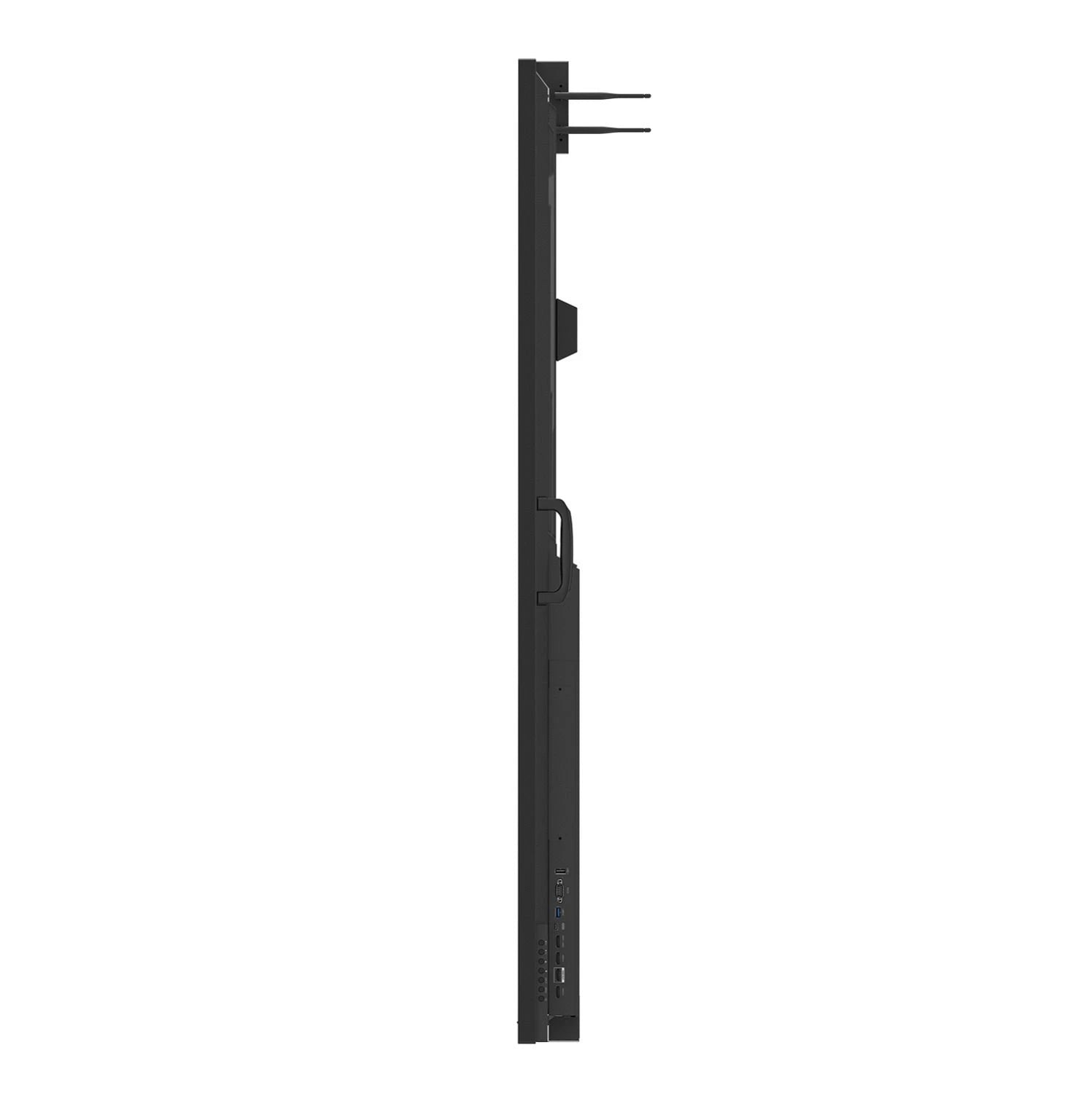

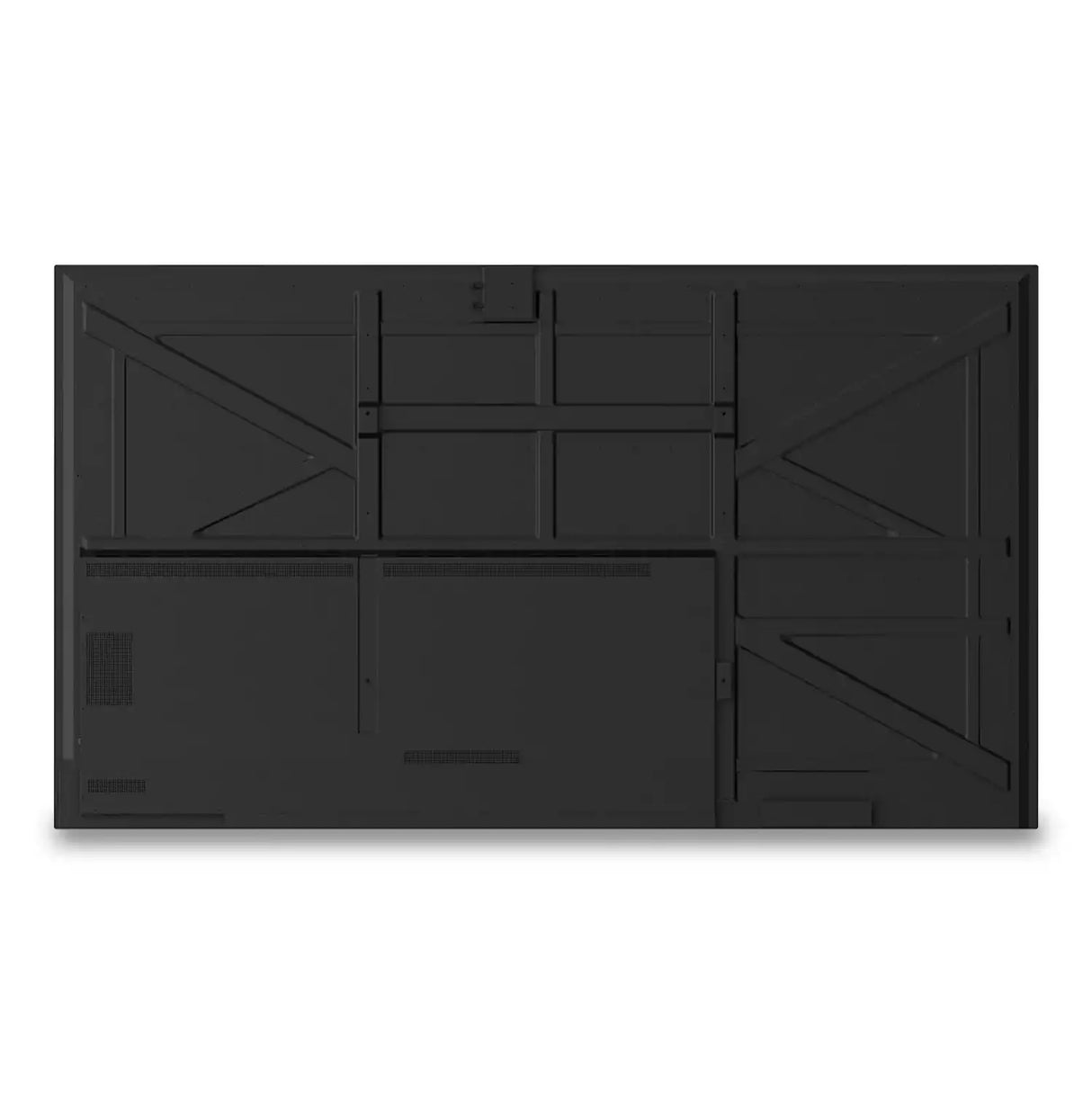

The ViewSonic TeamJoin TRS10 CDE9830-MTR is a Microsoft Teams Rooms certified premium bundle for large-format meeting environments, pairing the 98-inch CDE9830 4K UHD display with the MPC310-W31-TU compute engine and MRC1010-TN touch console. At 98 inches, the CDE9830 delivers commanding visual presence for large boardrooms, training centers, and auditoriums. The bundle ships with Microsoft Teams Rooms pre-installed on Windows 11 IoT Enterprise, enabling enterprise-grade deployment without custom imaging.
Bundle Components
- CDE9830 — 98-inch, 4K UHD (3840×2160), ADS panel, 500 nits, HDMI 2.1 inputs, USB-C 65W PD, 24/7 commercial rated
- MPC310-W31-TU — Intel 12th Gen Core i3-1220P compute engine, Windows 11 IoT Enterprise, TPM 2.0, Wi-Fi 6, Bluetooth 5.2
- MRC1010-TN — 10.1-inch Full HD touch scheduling console, HDMI BYOD ingest, human presence auto-wake
Product Description
The CDE9830 is ViewSonic's flagship commercial large-format display, delivering 500 nits of brightness and 3 × HDMI 2.1 inputs for 4K@60Hz signal sources—designed for installations where visual impact and signal flexibility are both critical. Its ADS LCD panel with DLED backlight provides 1200:1 typical contrast, 178° viewing angles, and a 50,000-hour backlight life, all rated for 24/7 operation. ProAV control compatibility (Crestron, Extron, AMX) enables integration into managed AV ecosystems. The MPC310-W31-TU compute engine provides the Intel 12th Gen processing power, TPM 2.0 security, and Wi-Fi 6 connectivity required by enterprise IT. The MRC1010-TN touch console adds room scheduling, meeting join, BYOD content sharing, and presence-based auto-wake. This bundle is purpose-built for large boardrooms, executive presentation suites, and enterprise training environments where a 98-inch Teams Rooms deployment is the design standard.
Key Features
- Microsoft Teams Rooms Certified — Full MTR certification, pre-installed on Windows 11 IoT Enterprise.
- 98-inch 4K UHD Display — 500 nits, ADS panel, HDMI 2.1 ×3, USB-C 65W PD, anti-glare, 24/7 rated.
- HDMI 2.1 Inputs — Three HDMI 2.1 ports support 3840×2160@60Hz for multiple high-res signal sources.
- ProAV Control Support — Compatible with Crestron, Extron, and AMX for centralized AV management.
- Intel 12th Gen + TPM 2.0 — Enterprise-class processing and hardware security for IT-managed deployments.
- Android 11 Embedded SoC — Quad-core ARM Cortex A55, 4GB/32GB for standalone wireless sharing.
- Human Presence Auto-Wake — Reduces idle power consumption; system activates on room entry.
Typical Applications
- Large boardrooms and executive suites
- Corporate training centers and auditoriums
- Large-format conference rooms (20+ seats)
- Government and federal agency meeting facilities
- High-visibility commercial meeting spaces
System Specifications
| Display Size | 98 inches |
| Resolution | 3840 × 2160 (4K UHD) |
| Brightness | 500 nits (typical) |
| Contrast Ratio | 1200:1 typical / 5000:1 dynamic |
| Panel Type | ADS with DLED backlight |
| Response Time | 8 ms |
| Viewing Angles | 178° H / 178° V |
| HDMI Inputs | HDMI 2.1 ×3 (3840×2160@60Hz) |
| USB-C | ×1 (USB 2.0, DP 1.2, 65W PD) |
| Embedded Platform | Android 11, Quad-Core ARM Cortex A55, 4GB RAM, 32GB |
| Backlight Life | 50,000 hours |
| Operation Rating | 24/7 |
| Dimensions (W×H×D) | ~87.1" × 49.9" × 3.1" |
| Weight (net) | ~153 lbs (69.4 kg) |
| Compute Engine | MPC310-W31-TU — Intel Core i3-1220P, 12th Gen |
| Operating System | Windows 11 IoT Enterprise (MTR pre-installed) |
| Security | TPM 2.0, Intel Threat Detection, Smart App Control |
| Touch Console | MRC1010-TN — 10.1" Full HD, HDMI BYOD ingest |
| Certification | Microsoft Teams Rooms Certified |
| Warranty | 3-year limited |
Frequently Asked Questions
Q: Does this bundle include a Teams Rooms license?
A: No. A Microsoft Teams Rooms Standard or Premium license must be purchased separately and assigned to the room account prior to use.
Q: What room size is the 98-inch display best suited for?
A: The CDE9830 is optimized for large rooms seating 20 or more people, with effective viewing distances up to 30 feet.
Q: Does this bundle work with Crestron or Extron control systems?
A: Yes. The CDE9830 supports ProAV control system integration via RS232, LAN, and compatibility with Crestron, Extron, and AMX platforms.
Q: What warranty is included?
A: All components carry a 3-year limited ViewSonic warranty. Creation Networks provides first-line support.
Q: Does the bundle include a camera or microphone?
A: No. For a complete video conferencing solution, upgrade to the CDE9830-MTRC bundle which adds the UMB202 4K video bar with auto-framing camera and 6-mic beamforming array.
