ViewSonic CDE6530 65″ 4K UHD Commercial Presentation Display
Product Overview

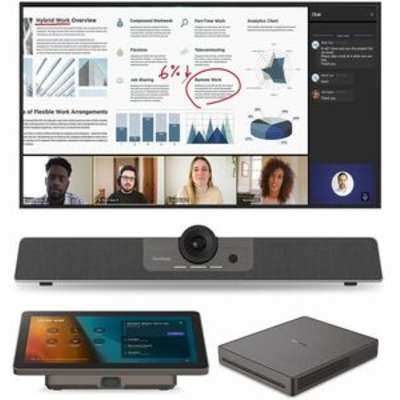

The ViewSonic TeamJoin TRS10-UB CDE6530-MTRC is a Microsoft Teams Rooms certified complete collaboration bundle for small to medium conference rooms. It combines the 65-inch CDE6530 4K UHD commercial display, MPC310-W31-TU Intel 12th Gen compute engine, MRC1010-TN touch console, and UMB202 4K video bar into a single, certified deployment kit. IT administrators receive a fully pre-configured Teams Rooms stack—camera, audio, display, and compute—in one order with one warranty source.
Bundle Components
- CDE6530 — 65-inch, 4K UHD (3840×2160), ADS panel, 450 nits, 24/7 commercial display, 4GB RAM/32GB Android 11
- MPC310-W31-TU — Intel 12th Gen Core i3-1220P compute engine, Windows 11 IoT Enterprise, TPM 2.0, Wi-Fi 6, Bluetooth 5.2
- MRC1010-TN — 10.1-inch Full HD touch scheduling console, HDMI BYOD ingest, human presence auto-wake
- UMB202 — 4K video bar, 120° FOV Sony sensor, AI auto-framing, 6-mic beamforming array, 8W+3W speakers
Product Description
The CDE6530-MTRC delivers the complete Teams Rooms experience for smaller conference rooms where a 65-inch display is the right size for the space. The CDE6530 features a commercial-grade ADS LCD panel rated for 24/7 operation with 450 nits brightness, 1200:1 contrast ratio, and a 50,000-hour backlight life. Its embedded Android 11 platform (4GB/32GB) enables standalone wireless screen sharing independent of the MTR compute engine. The MPC310-W31-TU runs Microsoft Teams Rooms on Windows 11 IoT Enterprise with Intel 12th Gen Core performance and full enterprise security via TPM 2.0. The UMB202 video bar provides 4K video capture with a Sony image sensor, AI auto-framing, ePTZ with 5× zoom, and a 6-mic beamforming array with DOA voice tracking—delivering professional conference room AV without a separate USB camera and speakerphone. This bundle is ideal for smaller conference rooms seating 4–8 people where a complete, certified Teams Rooms solution is required.
Key Features
- Complete MTRC Bundle — Display, compute, console, and video bar in one certified package—nothing else required except a Teams license.
- UMB202 4K Video Bar — Sony sensor, AI auto-framing, 5× zoom, 6-mic DOA beamforming, 8W+3W speakers.
- 65-inch 4K ADS Display — 450 nits, anti-glare, 24/7 rated, 178° viewing angles, landscape and portrait.
- Intel 12th Gen + TPM 2.0 — Enterprise-class security, Wi-Fi 6, Bluetooth 5.2, Intune-manageable.
- BYOD HDMI Ingest — MRC1010-TN accepts guest laptop video via HDMI with no software required.
- Human Presence Sensor — Auto-wake on room entry, auto-sleep when empty for energy savings.
Typical Applications
- Small to medium conference rooms (4–8 seats)
- Huddle rooms requiring full video conferencing certification
- Executive offices and focus rooms
- Corporate branch office standardization kits
- Government and education meeting spaces
System Specifications
| Display Size | 65 inches |
| Resolution | 3840 × 2160 (4K UHD) |
| Brightness | 450 nits (typical) |
| Panel Type | ADS with DLED backlight |
| Display OS / SoC | Android 11, 4GB RAM, 32GB storage |
| Backlight Life | 50,000 hours |
| Operation Rating | 24/7 |
| Compute Engine | MPC310-W31-TU — Intel Core i3-1220P, 12th Gen, 8GB DDR4 |
| Operating System | Windows 11 IoT Enterprise (MTR pre-installed) |
| Security | TPM 2.0, Intel Threat Detection, Smart App Control |
| Connectivity | HDMI Out, USB-C (PD+data), USB 3.0, RJ45, Wi-Fi 6, BT 5.2 |
| Touch Console | MRC1010-TN — 10.1" FHD, 10-pt touch, HDMI BYOD ingest |
| Video Bar | UMB202 — 4K, Sony sensor, 120° FOV, AI auto-framing, 5× zoom |
| Microphone | 6-mic beamforming array with DOA tracking |
| Speakers | 8W + 3W front-facing (UMB202) |
| Certification | Microsoft Teams Rooms Certified |
| Warranty | 3-year limited |
Frequently Asked Questions
Q: Is a Teams Rooms license required?
A: Yes. A Microsoft Teams Rooms Standard or Premium license must be assigned to the room account. Hardware ships with MTR pre-installed.
Q: What room size is this bundle designed for?
A: The 65-inch display is suited for small to medium rooms seating 4–8 people. The UMB202’s 120° FOV covers typical smaller conference room table widths.
Q: Does the UMB202 require a separate speakerphone?
A: No. The UMB202 includes a 6-mic beamforming array and 8W+3W speakers, providing complete audio coverage for the room without an additional speakerphone.
Q: What warranty is included?
A: All four components carry a 3-year limited ViewSonic warranty. Creation Networks provides first-line support.
Q: How does this differ from the CDE6530-MTR bundle?
A: The MTRC bundle adds the UMB202 4K video bar (camera + microphone + speaker). The MTR bundle requires a separate camera and audio device. The MTRC bundle is the complete solution; the MTR bundle is for environments with existing certified AV peripherals.
