ViewSonic CDE5514 55" 4K Commercial LED 16/7, 350 nits

Product Overview

The ViewSonic CDE5514 is a 55-inch 4K commercial display from the CDE14 series, purpose-built for corporate conference rooms, higher education, and public sector meeting spaces. The CDE14 series represents ViewSonic's current-generation commercial display lineup, featuring Android 14 AOSP, Q-SYS ecosystem integration, and a simplified connectivity model designed to reduce installation complexity.

Key differentiators from the CDE30 series include: Q-SYS Library Verified plugin certification (in addition to Crestron, Extron, and AMX), Android 14 AOSP (replacing Android 11), fast warm boot under 7 seconds, Intelligent Signal Failover (automatic switch to backup input or USB playlist if the primary source is lost), and ViewSonic AirSync wireless casting. The display is rated for 16/7 operation and delivers 350 nits brightness with a 25% haze anti-glare coating. ViewSonic Manager Basic is included at no additional cost for centralized fleet management.

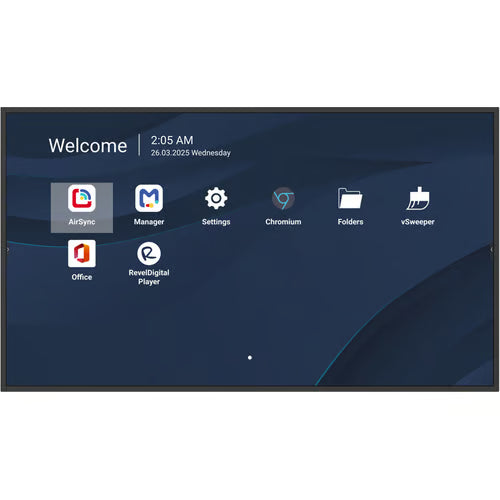

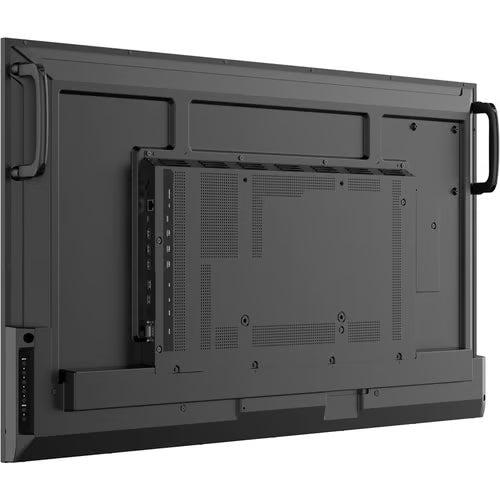

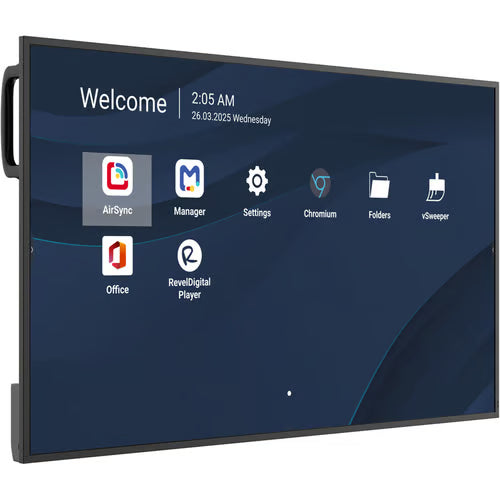

Product Images

Key Features

• Q-SYS Library Verified + Crestron + Extron + AMX Compatible — the broadest AV control ecosystem certification in the CDE lineup; Q-SYS plugin enables full integration with Q-SYS ecosystems without third-party adapters
• Android 14 AOSP — ARM Cortex-A73 quad-core (MT9681), 4GB DDR4, 32GB; more current Android platform than CDE30 series; upgradeable to Android 16
• Intelligent Signal Failover — automatically switches to backup input or USB media playlist if primary video source is lost; prevents blank-screen gaps in meeting rooms and digital signage
• Fast Warm Boot <7 Seconds — display is presentation-ready in under 7 seconds from standby; no waiting for full OS boot
• 55" 4K ADS Panel, 350 nits — 3840x2160, anti-glare 3H haze 25%, 178° viewing, DLED backlight; 16/7 rated operation
• ViewSonic Manager Basic Included — free centralized device management platform for scheduling, firmware updates, and monitoring; no license fee
• USB-C 15W Input — single-cable laptop connection for BYOD presenter use
• 3x HDMI 2.1 In + 3.5mm + SPDIF Audio Out — standard conference room input flexibility
• ViewSonic AirSync Wireless Casting — AirPlay and Google Cast compatible; VB-WIFI-005 adapter required for wireless use
• EPEAT Silver + ENERGY STAR 8.0 — sustainability certifications for green purchasing programs
• VESA 400x400mm, 13 kg
• 3-Year Onsite Warranty

Typical Applications

• Corporate conference rooms deploying Q-SYS AV control infrastructure
• Higher education classrooms and faculty meeting rooms
• Government and public sector facilities requiring modern Android platform
• Healthcare meeting rooms with BYOD USB-C presenter connections
• Multi-room enterprise deployments managed centrally via ViewSonic Manager

Technical Specifications

Frequently Asked Questions

Why does the CDE5514 have a lower brightness rating (350 nits) than the CDE5530 (450 nits)?

The CDE14 series is optimized for typical indoor conference room lighting conditions (200–400 lux ambient). The 350-nit sweet spot is designed to reduce eye strain in controlled lighting environments. The CDE30 series at 450 nits targets higher ambient light environments such as lobbies and retail spaces rated for continuous 24/7 operation. For conference room use, 350 nits is generally sufficient; for high-ambient-light digital signage or 24/7 deployment, the CDE5530 is the appropriate choice.

What is Q-SYS Library Verified and how does it differ from Crestron/AMX/Extron?

Q-SYS is a networked AV control platform by QSC that uses a plugin architecture. Q-SYS Library Verified means ViewSonic has developed and tested an official plugin for the CDE5514 in the Q-SYS Library, enabling IT/AV integrators using Q-SYS to control the display (power, inputs, volume, status) without writing custom drivers. Crestron, AMX, and Extron are separate control platforms with their own driver ecosystems. The CDE5514 is the only model in this lineup with Q-SYS certification.

Is Wi-Fi included with the CDE5514?

No. The CDE5514 does not have built-in Wi-Fi. The optional VB-WIFI-005 USB adapter (802.11ax dual-band + Bluetooth 5.2) is available separately for wireless connectivity and ViewSonic AirSync wireless casting functionality.

What is the difference between the CDE5514 and the CDE5530 for a conference room upgrade?

The CDE5514 (CDE14 series) offers Android 14, Q-SYS integration, fast warm boot, Intelligent Signal Failover, and a more current platform at a lower price point, but is rated 16/7 at 350 nits. The CDE5530 (CDE30 series) is rated 24/7 at 450 nits with Crestron/AMX/Extron certifications and supports video wall tiling. For standard conference rooms with scheduled operating hours, the CDE5514 is the cost-effective choice. For 24/7 digital signage or environments requiring higher brightness, the CDE5530 is preferred.
