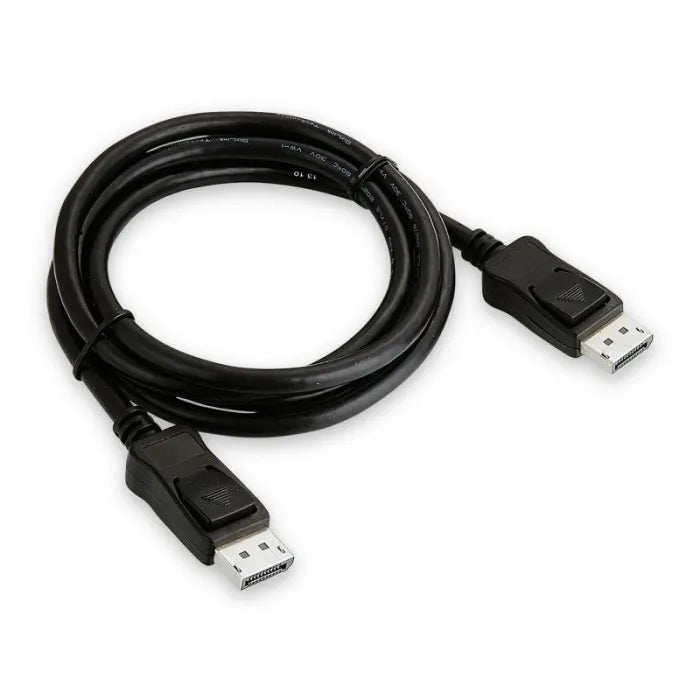

ViewSonic CB-00010684 DisplayPort Male to Male Cable – 30FT 28AWG Signal Cable for Extended High-Resolution Video Connections.
ViewSonic CB-00010684 DisplayPort Male to Male Cable – 30FT 28AWG Signal Cable for Extended High-Resolution Video Connections. is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
ViewSonic CB-00010684 DisplayPort Male to Male Cable – 30FT 28AWG S...
The ViewSonic CB-00010684 is a 30 ft (9.1 m) DisplayPort 1.2 male-to-male cable engineered for long-distance AV installations where source and display are far apart. The 24AWG conductor core (heavier gauge than standard 1.8 m cables) compensates for distance-related signal attenuation, sustaining the full 21.6 Gbps HBR2 bandwidth needed for 4K@60Hz over the extended run. Double-layer foil-and-braid shielding suppresses EMI in cabling-dense environments.
Supports DisplayPort 1.2 HBR2 at 21.6 Gbps, 4K UHD at 60 Hz, 1080p at 144 Hz, multi-stream transport (MST) daisy-chaining, and 8-channel audio. Locking connector clips prevent accidental disconnection in permanent installations.
Designed for boardrooms, lecture halls, trade show booths, and digital signage where the GPU or media player is far from the display. Compatible with all DisplayPort 1.2 monitors and GPUs including ViewSonic, NVIDIA, and AMD.
| Specification | Detail |
|---|---|
| Connector A | DisplayPort 1.2 Male |
| Connector B | DisplayPort 1.2 Male |
| Cable Length | 30 ft (9.1 m) |
| Conductor | 24 AWG (heavy gauge) |
| Max Bandwidth | 21.6 Gbps (HBR2) |
| Max Resolution | 4K @ 60Hz |
| Shielding | Foil + braid double-layer |
| Locking Connector | Yes |
