ViewSonic BCP120 120" BrilliantColorPanel™ – 16:9 ALR Screen for Ultra-Short Throw Projectors (<0.3 Throw), 160° Viewing, 0.6 Gain, Easy Assembly.
ViewSonic BCP120 120" BrilliantColorPanel™ – 16:9 ALR Screen for Ultra-Short Throw Projectors (<0.3 Throw), 160° Viewing, 0.6 Gain, Easy Assembly. is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
ViewSonic BCP120 120" BrilliantColorPanel™ – 16:9 ALR Screen f...
Product Overview

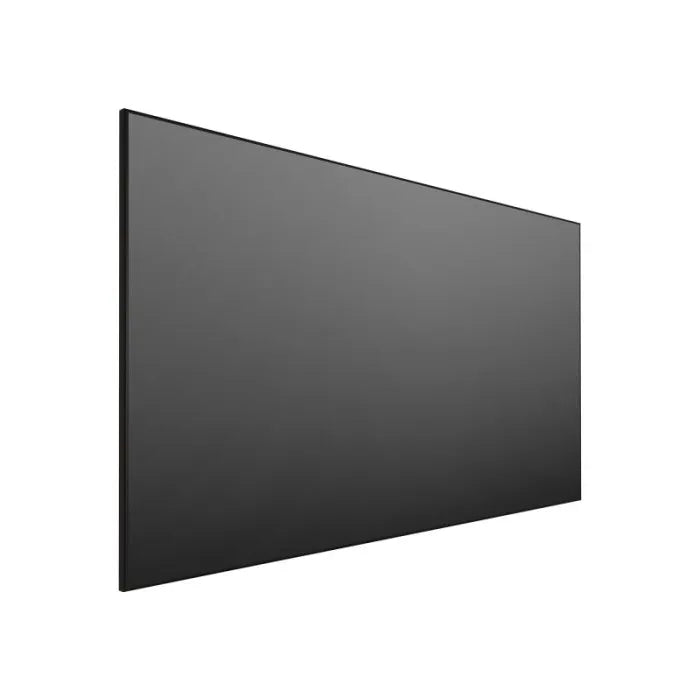

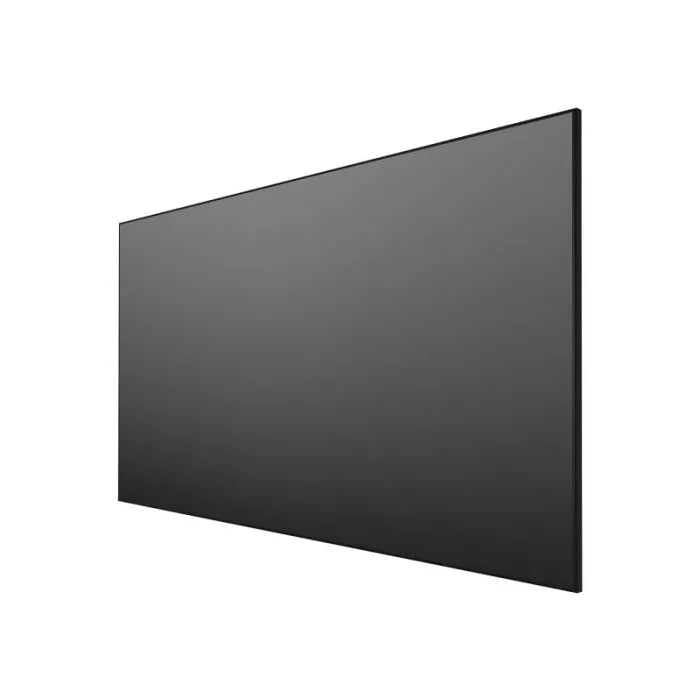

The ViewSonic BCP120 is a 120" 16:9 ambient light rejecting (ALR) fixed-frame projection screen engineered specifically for ultra-short throw projectors with throw ratios of 0.3 or less. Its BrilliantColor diffusion surface rejects off-axis ambient light from ceiling fixtures and windows while fully reflecting the on-axis light cone from UST projectors, preserving contrast and color accuracy in fully lit rooms. With a 0.6 peak gain, 160° viewing angle, and tool-free aluminum frame assembly, it is a purpose-built companion for ViewSonic UST laser projectors and other sub-0.3 throw-ratio units in commercial and institutional AV installations.
Product Description
Standard projection screens reflect light in all directions equally, which makes them vulnerable to washout from overhead lighting and natural light. The BCP120 uses a structured lenticular ALR surface that is directionally sensitive: it rejects light arriving from steep angles (ceiling lights, windows) while efficiently reflecting the shallow-angle light cone produced by ultra-short throw projectors. The result is usable contrast and color fidelity in fully lit meeting rooms, classrooms, and conference spaces where pulling blinds or dimming overhead lights is impractical. The screen achieves 0.6 peak gain with a ±80° half-gain angle, delivering a wide, uniform viewing cone suitable for group settings. The 11mm bezel aluminum frame system assembles without tools — the rollable soft screen panel attaches to four slim frame sections — allowing a single person to unpack, assemble, and mount the screen. Physical dimensions are 105.5" x 59.7" x 1.4", compatible with standard wall-mount hardware. The screen is validated for use with ViewSonic LS820, LS810, LS830, and PX800HD UST laser projectors, as well as any third-party UST projector with a throw ratio below 0.3. Net weight is 32 lbs; the panel ships rolled in a 109" x 15" x 6.3" carton for transport and storage.
Key Features
- ALR Surface for UST Projectors — Engineered for <0.3 throw ratio projectors; rejects ceiling and ambient light to preserve contrast.

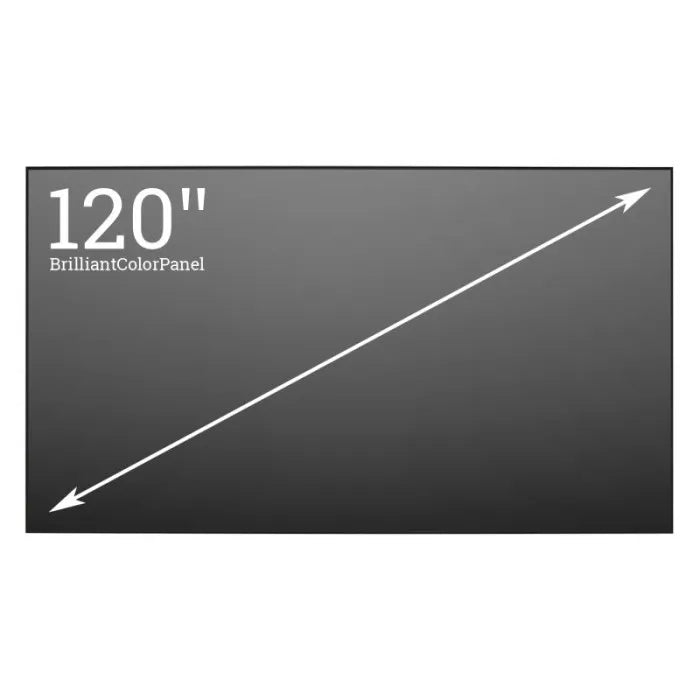

- 120" 16:9 Format — Diagonal screen size with 1080p-optimized surface for Full HD UST sources.
- 0.6 Peak Gain — Balanced gain avoids hotspotting while enhancing perceived brightness in ambient light.
- 160° Viewing Angle — Wide, uniform brightness and color for large conference and classroom audiences.
- 11mm Slim Aluminum Frame — Tool-free assembly; minimal bezel intrusion on the projected image.
- Rollable Soft Panel — Lightweight, packable screen material ships in a standard carton for easy transport and installation.
- Validated UST Compatibility — Tested with ViewSonic LS820, LS810, LS830, and PX800HD projectors.
Typical Applications
- Corporate conference rooms and boardrooms with overhead lighting
- Classroom and training room installations paired with UST laser projectors
- Government briefing rooms requiring ambient-light-tolerant projection
- House of worship stage screens with front-of-house lighting active
Technical Specifications
| Screen Type | Fixed-frame ALR (Ambient Light Rejecting) |
| Screen Diagonal | 120" (diagonal) |
| Aspect Ratio | 16:9 |
| Compatible Throw Ratio | < 0.3 (UST projectors) |
| Peak Gain | 0.6 (±0.05) |
| Half Gain Angle | 80° |
| Viewing Angle | 160° |
| Frame Width (Bezel) | 0.43" (11 mm) |
| Frame Depth | 1.4" (30 mm) |
| Physical Dimensions (W x H x D) | 105.5" x 59.7" x 1.4" |
| Net Weight | 32 lbs |
| Gross Weight (Packaged) | 72.8 lbs |
| Packaging Dimensions | 109.0" x 15.0" x 6.3" |
| Assembly | Tool-free; rollable soft screen + aluminum frame |
| Warranty | 90 days |
| Compatible Projectors (Validated) | ViewSonic LS820, LS810, LS830, PX800HD |
Frequently Asked Questions
Q: Will the BCP120 work with any UST projector, or only ViewSonic models?
A: The BCP120 is compatible with any ultra-short throw projector with a throw ratio of 0.3 or less. ViewSonic has validated it with the LS820, LS810, LS830, and PX800HD, but it is not limited to those models.
Q: Can the BCP120 be used with a standard (non-UST) projector?
A: No. The ALR surface is engineered for the shallow light angle produced by UST projectors. A standard-throw projector positioned several feet away will not illuminate the screen correctly, resulting in poor image quality.
Q: Does the BCP120 require professional installation?
A: The tool-free frame system is designed for straightforward assembly. Standard wall-mount hardware is needed; the screen weighs 32 lbs and the 105.5" width requires at least two people for safe mounting.
Q: How does the 0.6 gain affect brightness compared to a 1.0 gain screen?
A: A 0.6 gain screen reflects 60% of incident light compared to a reference white screen. This is intentional for ALR screens — the directional rejection of ambient light compensates, and with a UST projector the perceived brightness in a lit room is typically superior to a 1.0 gain screen under the same conditions.
Q: Is the screen surface washable or cleanable?
A: Consult ViewSonic's care instructions. Generally, ALR screen surfaces should be cleaned gently with a soft, dry or slightly damp cloth — avoid solvents or abrasive materials that could damage the lenticular structure.
Q: What mounting hardware is required?
A: Standard wall anchors appropriate for the wall construction and the screen's 32 lb weight are required. The frame includes mounting slots; specific mounting hardware is not included.
