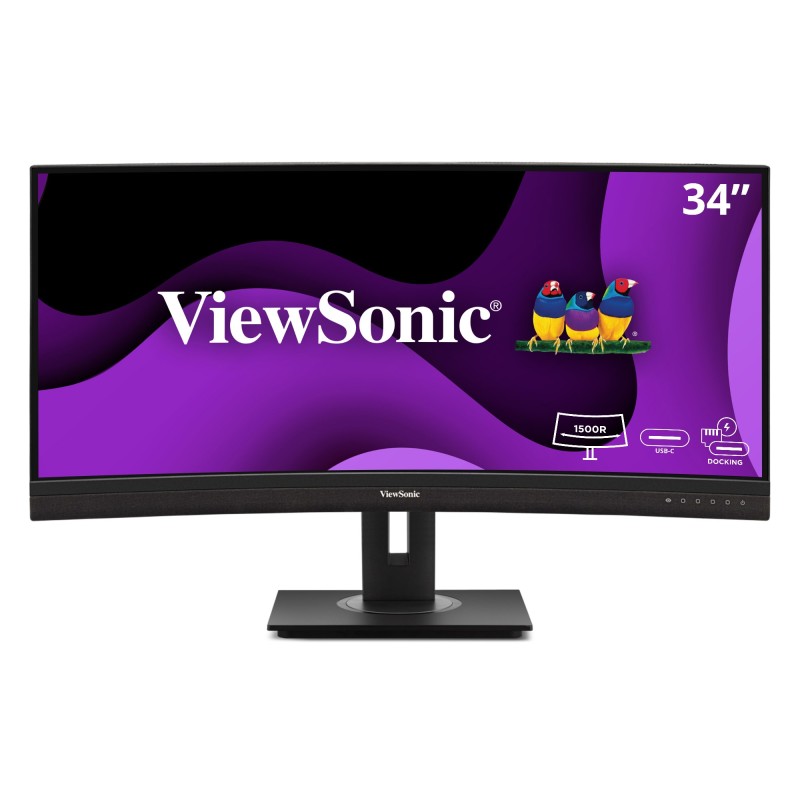

ViewSonic VG3456CA – 34-Inch Ultrawide WQHD USB-C Monitor

Product Overview

The ViewSonic VG3456CA is a 34-inch UWQHD curved USB-C docking monitor designed for enterprise workstations where a single-cable connection replaces a separate dock. Its 21:9 ultrawide 3440x1440 VA panel with 1500R curvature provides expanded screen real estate equivalent to two 27-inch monitors side-by-side without a bezel gap, making it well-suited for financial analysis, development, and multi-application workflows. With 100W USB-C power delivery, built-in RJ45 Ethernet, and an integrated USB hub, it consolidates display, network, and peripheral connectivity through one cable to a connected laptop.

Product Description

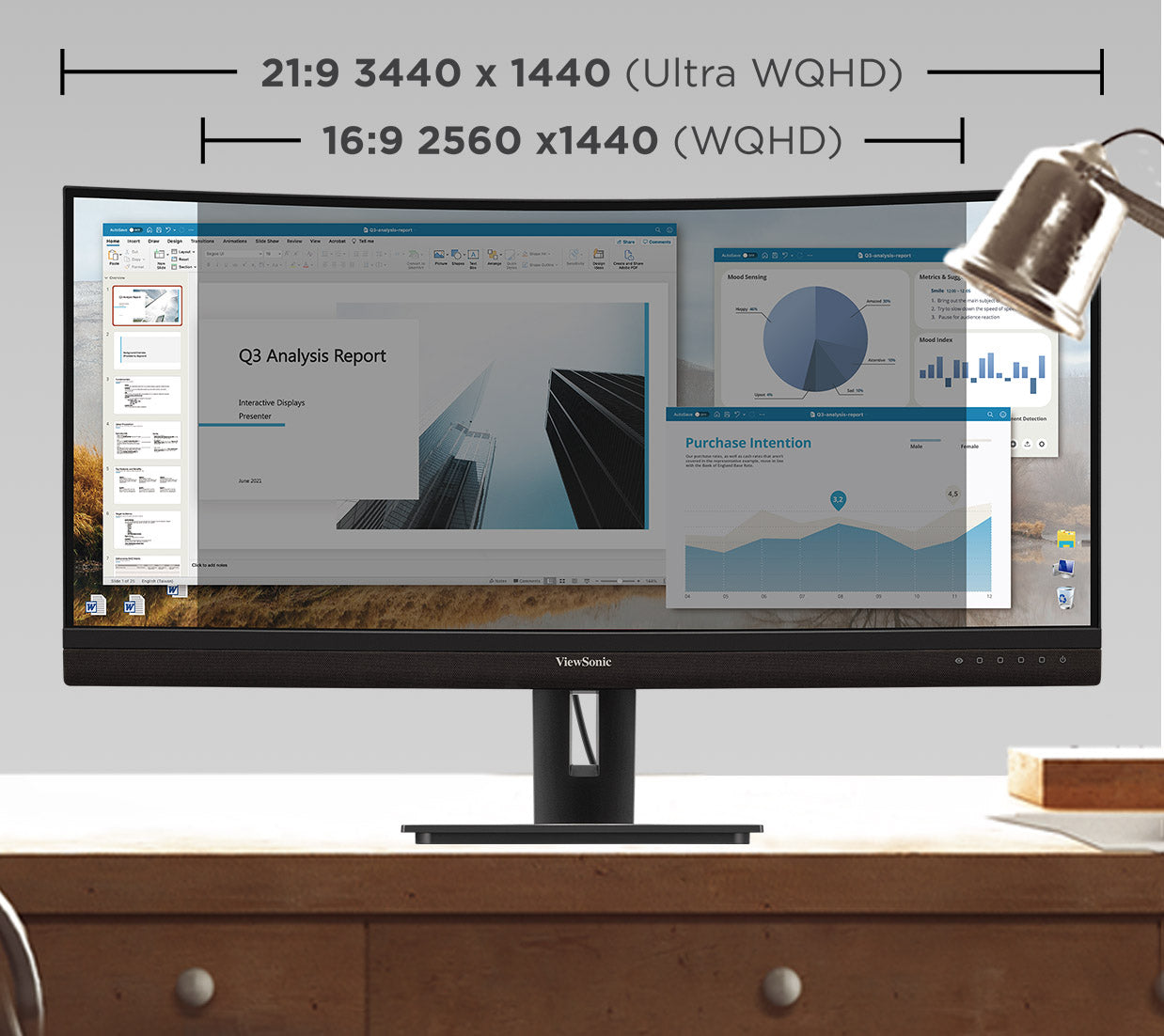

The VG3456CA uses a 34-inch VA panel at UWQHD 3440x1440 resolution with a 1500R curvature, 100Hz refresh rate, and 350 cd/m² brightness. The 21:9 aspect ratio provides 33% more horizontal screen space compared to a standard 16:9 display of similar height, allowing users to view multiple application windows, spreadsheets, or code editors side-by-side without virtual desktops or constant window switching. The built-in docking station delivers 100W USB-C power delivery, RJ45 Ethernet connectivity, and a four-port USB-A hub, eliminating the cost and cable complexity of a standalone dock in laptop-centric deployments. A secondary USB-C port provides 15W charging for phones or tablets. Two HDMI 2.1 inputs and one DisplayPort input maintain compatibility with desktop PCs, conference room systems, and other video sources without USB-C. ViewSonic's vDisplayManager software provides on-screen OSD control and split-screen window layout management, useful for multi-tasking across the wide panel. The ergonomic stand supports 110mm height adjustment, 120° swivel, and 5°/40° tilt, accommodating a wide range of user positions. Integrated 5W stereo speakers, a Kensington lock slot, and VESA 100x100mm mounting complete the feature set. An ENERGY STAR 8.0 and EPEAT Silver rating supports sustainability procurement goals in enterprise and government environments.

Key Features

• 34" UWQHD 21:9 Curved Panel (1500R) — 3440x1440 VA panel with 1500R curvature provides immersive wide-format viewing equivalent to dual monitors without a center bezel.

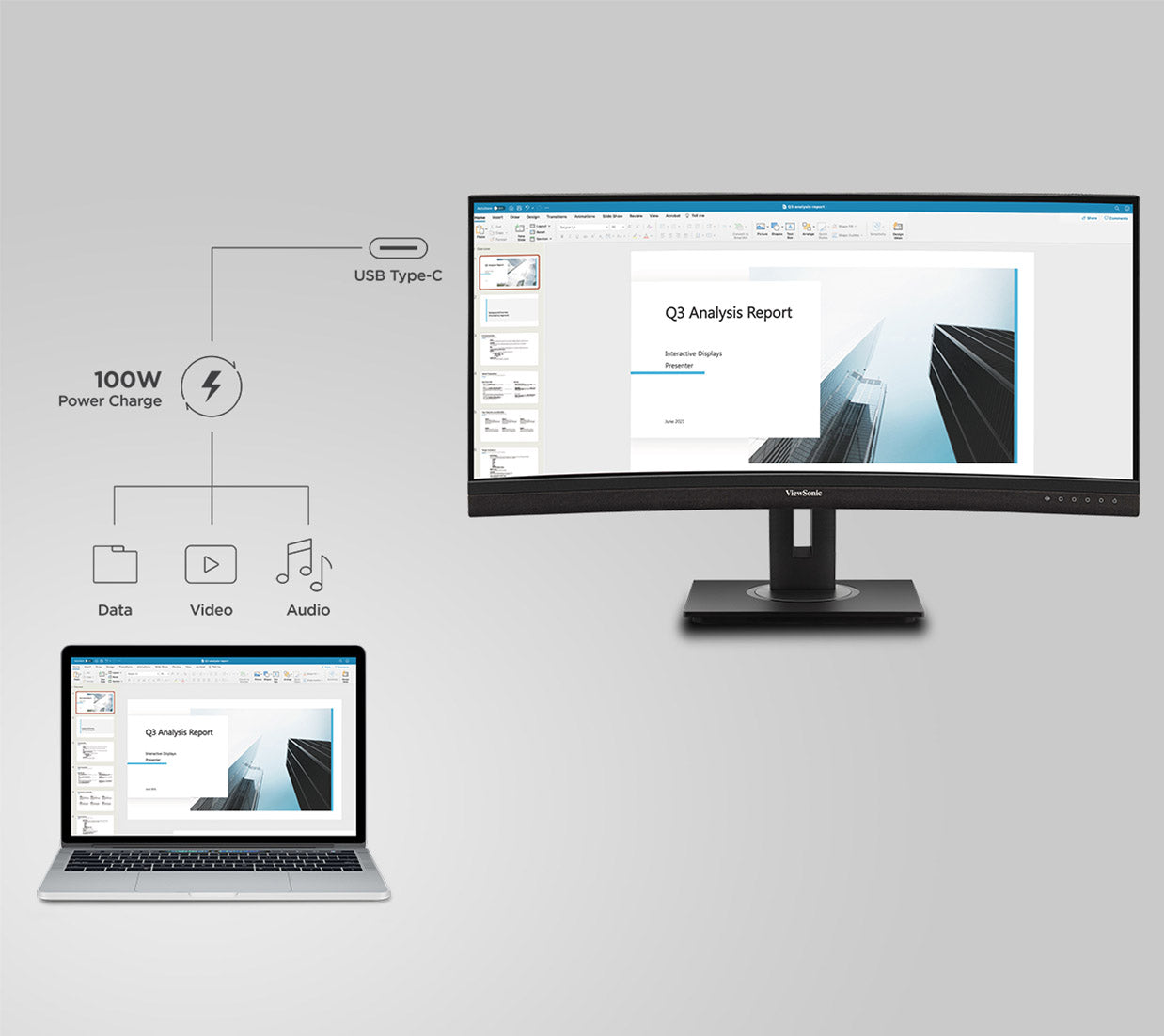

• 100W USB-C Single-Cable Docking — One USB-C cable delivers video, audio, data, and 100W laptop charging, replacing a separate docking station.
• Built-In RJ45 Ethernet — Wired network connectivity through the monitor provides a reliable, secure connection without requiring a separate USB network adapter.
• 100Hz Refresh Rate — Smoother on-screen motion compared to 60Hz panels, beneficial for scrolling through large documents and data sets.
• 4-Port USB-A Hub — Four USB-A downstream ports support keyboard, mouse, storage, and other peripherals directly through the display.

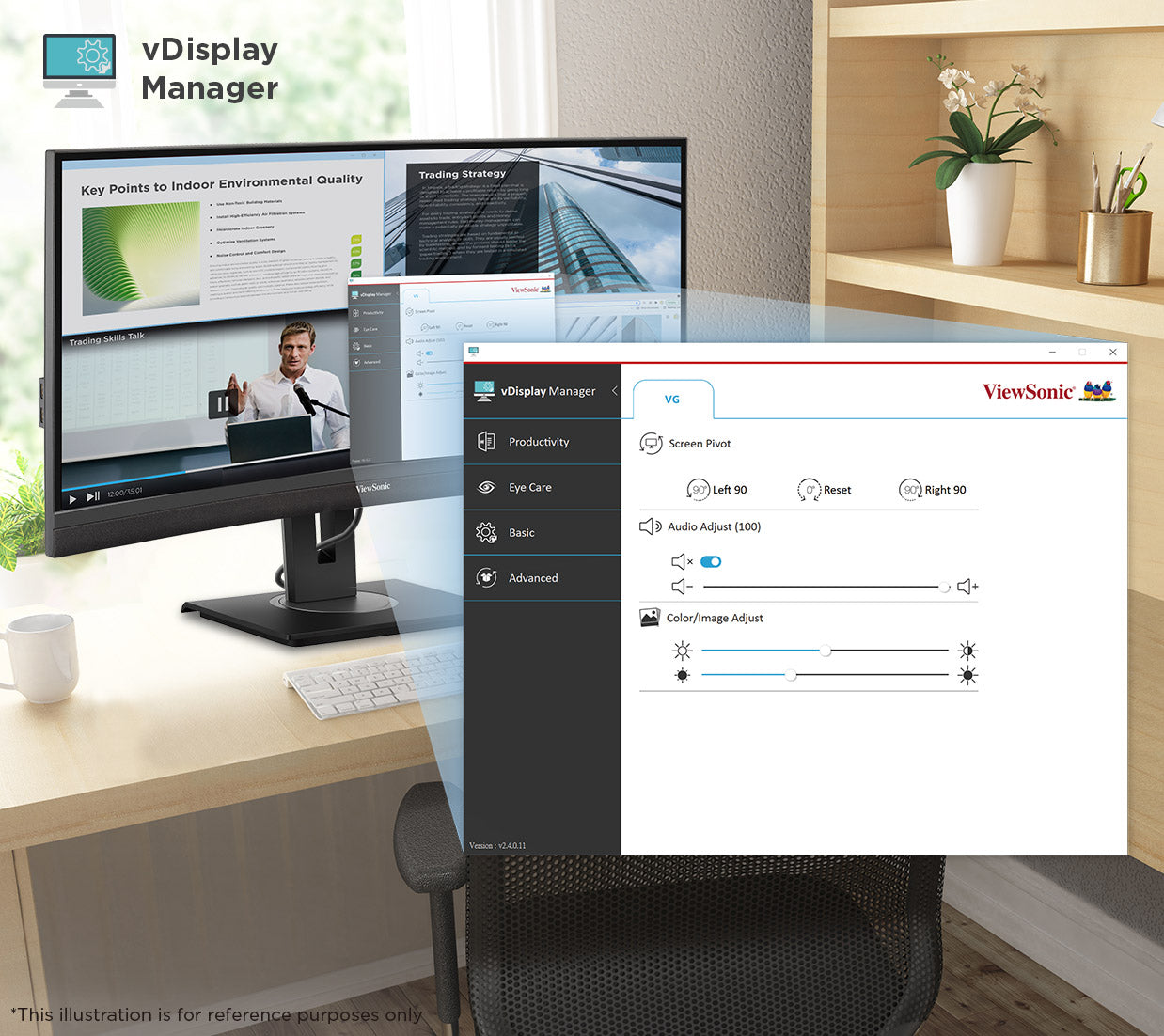

• vDisplayManager Software — On-screen OSD control and configurable split-screen window layouts for multi-tasking across the wide panel.

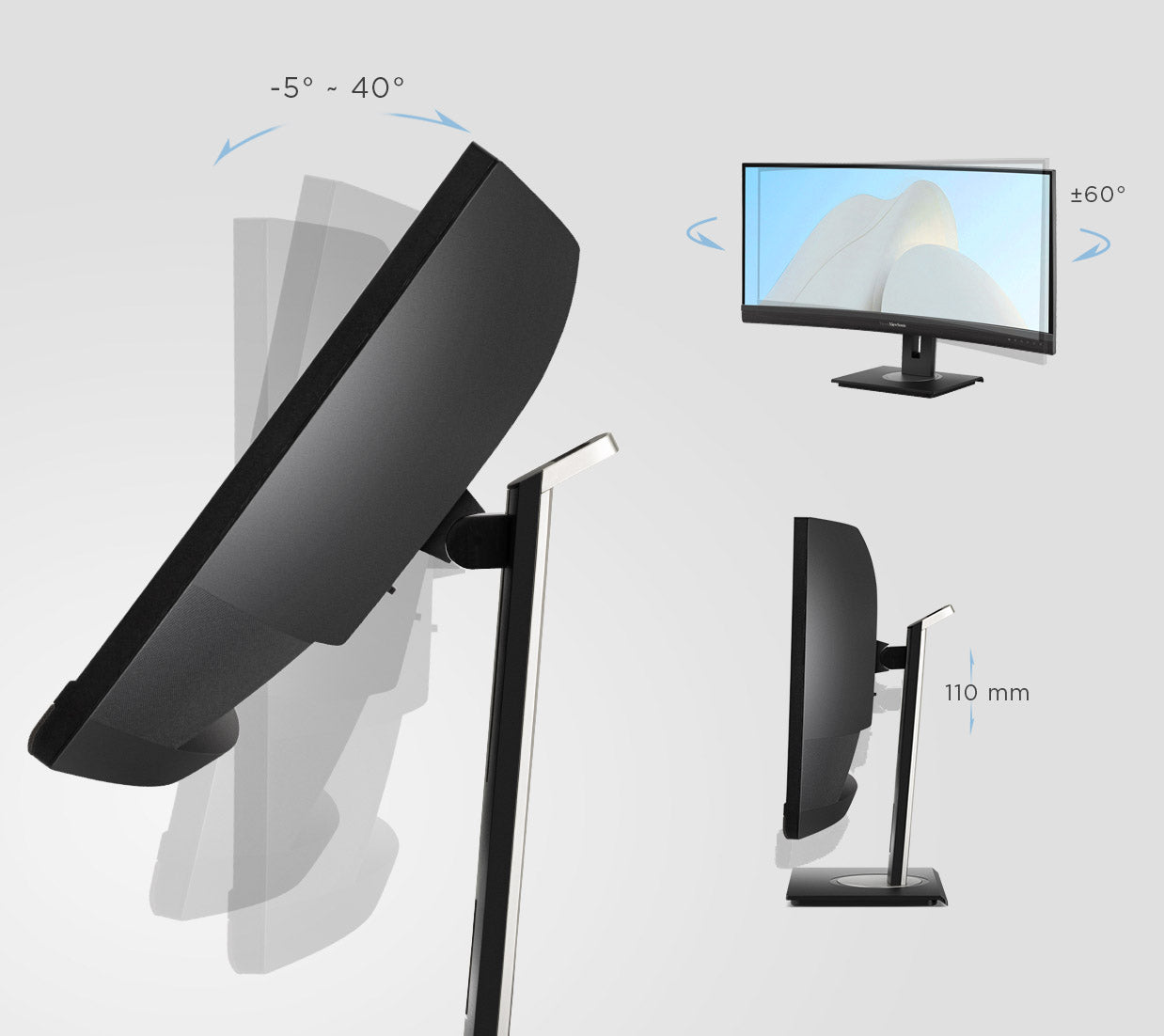

• Full Ergonomic Adjustment — 110mm height adjust, 120° swivel, 5°/40° tilt with cable management supports organized and comfortable workstation setup.
• Multiple Video Inputs — Two HDMI 2.1 and one DisplayPort in addition to USB-C support diverse source combinations.
• ENERGY STAR 8.0 / EPEAT Silver — Certified for energy efficiency and environmental lifecycle compliance in enterprise procurement.
• Quick-Release Stand with Carrying Handle — Simplified installation and transport for IT deployment and desk relocation scenarios.
• Dual 5W Integrated Speakers — Built-in stereo audio for standard office and conferencing use.
• 3-Year Limited Warranty — Parts, labor, and backlight coverage with ViewSonic's pixel performance policy.

Typical Applications

• Enterprise workstation docking monitor for laptop-based users requiring single-cable USB-C connectivity
• Financial analyst and developer workstation requiring wide-format display for multi-window workflows
• Conference room monitor with built-in network and USB hub for hot-desk and shared workstation environments
• Government and public sector procurement requiring EPEAT Silver certified commercial-grade monitors
• Corporate campus deployment where consistent multi-monitor setups benefit from simplified docking
• Training room workstation display where IT needs standardized, easy-to-deploy docking monitors

Technical Specifications

Frequently Asked Questions

Yes. The 100W USB-C port delivers video, audio, data, and laptop power over a single cable. Combined with the built-in RJ45 Ethernet and four USB-A ports, most laptop users will not require a separate dock.

Yes. The USB-C port supports any laptop with USB-C video output and power delivery negotiation. HDMI 2.1 and DisplayPort inputs are available for systems without USB-C video output.

UWQHD at 3440x1440 provides high pixel density on the 34-inch panel, making it suitable for fine-detail work including spreadsheets, CAD layouts, code editors, and financial dashboards.

The 3440x1440 ultrawide panel provides comparable horizontal workspace to two 27-inch 1080p monitors placed side-by-side, without the physical bezel gap or the need to manage two separate display connections.

Yes. The VESA 100x100mm mount pattern is compatible with standard monitor arms and wall mounts. The quick-release stand also facilitates rapid deployment and relocation in enterprise environments.

Yes. The RJ45 port provides wired Ethernet connectivity through the monitor. When connected via USB-C, a laptop can access the wired network through the monitor without a separate USB network adapter.

The VG3456CA is certified to ENERGY STAR 8.0 and EPEAT Silver, meeting commercial procurement standards for energy efficiency and environmental impact across the product lifecycle.
