Vaddio ZoomSHOT 30 QMini System - 30x Zoom USB PTZ Camera System
Product Overview

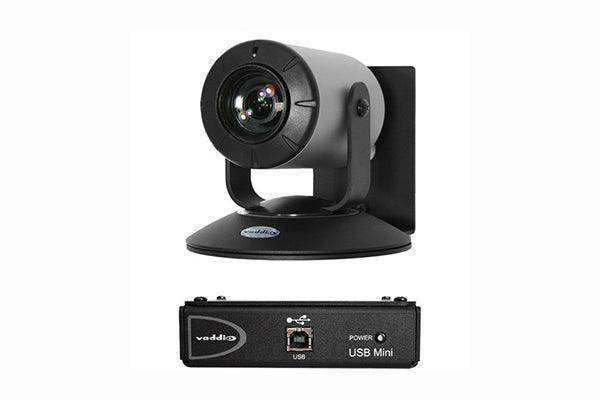

The Vaddio ZoomSHOT 30 QMini System (999-6930-400) is a complete 30x optical zoom point-of-view camera package that includes the ZoomSHOT 30 camera body paired with the Quick-Connect USB Mini (QMini) Interface. The QMini interface provides USB 2.0 UVC output and extends power, video, and control over two Cat-5 cables up to 150 ft (45m), enabling direct soft-client conferencing without a PC-side driver. The system ships as a complete kit including the camera, QMini interface, wall mount, power supply, USB cable, and remote. For HDMI/DVI-D output with Cat-5e single-cable extension, see the ZoomSHOT 30 QDVI System (999-6930-200).
Product Description
Built around a 1/2.8" Sony Exmor CMOS image sensor with 1.3 megapixels, the ZoomSHOT 30 delivers a 63° horizontal field of view at the wide end and 30x optical zoom for detailed framing of subjects across a large room. Manual pan/tilt with EZ-Set friction tensioning allows the installer to position the camera precisely at setup without motorized repositioning during sessions.
The QMini interface outputs USB 2.0 video at up to 720p/30 using UVC (USB Video Class) standards, making the camera appear as a standard USB webcam to any soft-client application on Windows or macOS — no driver installation required. Two Cat-5 cables carry power, video, and RS-232/IR control from the camera to the QMini at the desktop or rack end.
Key Features
- 30x Optical Zoom - 63° HFOV at wide end, 30x zoom for large rooms and distant framing.
- USB 2.0 UVC Output - Plug-and-play USB camera compatibility with Zoom, Teams, Webex, and other soft clients; no driver required.
- Quick-Connect QMini Interface Included - Complete system: camera + QMini interface + mount + power supply + accessories.
- Two-Cable Cat-5 Extension - Power, video, and control over two Cat-5 cables up to 150 ft (45m).
- Manual Pan/Tilt with EZ-Set Tensioning - Installer-adjusted friction tensioning for fixed-angle installations.
- Minimum Illumination 0.3 Lux - Suitable for low-light conference and meeting environments.
Typical Applications
- Huddle rooms and small conference rooms with USB soft-client video conferencing (Zoom, Teams, Webex)
- Fixed-angle lecture capture using USB video input on a PC or Mac
- Distance learning classrooms with USB-connected conferencing or recording systems
- Corporate meeting rooms needing a 30x zoom plug-and-play USB camera
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | 999-6930-400 |
| Image Sensor | 1/2.8" Sony Exmor CMOS, 1.3MP |
| Optical Zoom | 30x |
| Horizontal Field of View | 63° (wide) |
| USB Output | USB 2.0, UVC (up to 720p/30) |
| Extension Interface | Quick-Connect USB Mini (QMini), included |
| Cable Extension | Two Cat-5 cables up to 150 ft (45m) |
| Minimum Illumination | 0.3 Lux (F1.6, 50 IRE) |
| Control | RS-232, IR |
| Included | ZoomSHOT 30 camera, QMini interface, thin-profile wall mount (black), IR remote, 24V power supply, 6 ft USB 2.0 A-B cable, quick-start guide |
Frequently Asked Questions
What is the maximum USB resolution?
The QMini interface outputs up to 720p/30 via USB 2.0 UVC. For 1080p output over HDMI or DVI-D, see the ZoomSHOT 30 QDVI System (999-6930-200).
Does this work with Zoom and Microsoft Teams without a driver?
Yes. The QMini uses UVC (USB Video Class) standards and appears as a standard USB webcam to Windows and macOS — no driver installation required.
How far can the camera be from the QMini interface?
Up to 150 ft (45m) over two Cat-5 cables. Contact Creation Networks for system design assistance.
