Vaddio ZoomSHOT 30 QDVI System - 30x Optical Zoom PTZ Camera System

Product Overview

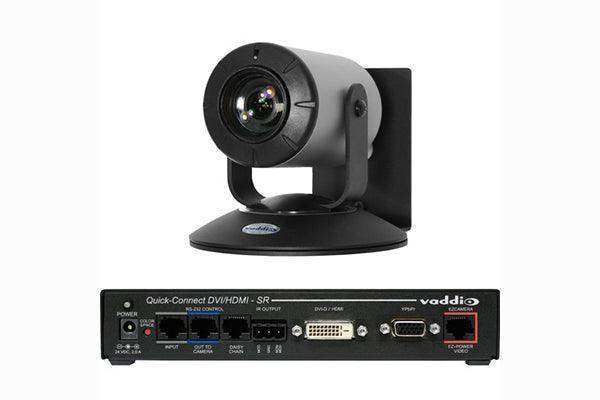

The Vaddio ZoomSHOT 30 QDVI System (999-6930-200) is a manual pan/tilt PTZ camera system featuring 30x optical zoom and a built-in QDVI Quick-Connect Interface. The QDVI interface extends HDMI, DVI-D, and component (YPbPr) video outputs plus power and control over a single Cat-5e cable from the camera position to the AV rack — up to 131 ft (40m). The system ships with the QDVI Quick-Connect Interface Module included. Part number 999-6930-200 is the complete QDVI System; for the camera body only (no interface) see 999-6930-000.

Product Description

The ZoomSHOT 30 QDVI is built for medium-to-large fixed installation environments where 30x optical zoom and clean single-cable infrastructure are required. A 1/2.8" Sony Exmor CMOS sensor delivers 1.3 megapixel 1080p resolution at up to 60 fps with wide dynamic range, low-light performance, and accurate color rendition.

Unlike motorized PTZ cameras, the ZoomSHOT 30 uses manual pan/tilt with EZ-Set friction tensioning, letting the installer set the camera angle precisely during setup without an operator adjusting the camera during an event. The QDVI Quick-Connect Interface Module accepts the Cat-5e cable at the rack end and provides HDMI, DVI-D, and YPbPr outputs simultaneously, giving integrators flexibility to connect to nearly any display, switcher, or recording device.

Key Features

• 30x Optical Zoom - 63.7° HFOV at wide end to 2.3° at full tele, covering large rooms and distant subjects.
• 1080p60 Resolution - 1/2.8" Sony Exmor CMOS, 1.3MP, supporting 1080p60/50/30/25, 1080i, and 720p output formats.
• QDVI Quick-Connect Interface Included - QDVI module ships with the system; provides HDMI, DVI-D, and YPbPr outputs at the rack.
• Single Cat-5e Extension - Power, video, and RS-232/IR control over one Cat-5e cable up to 131 ft (40m).
• Manual Pan/Tilt with EZ-Set Tensioning - Set-and-forget friction adjustment for fixed installation environments without motor noise or constant repositioning.
• Multiple Video Outputs - Simultaneous HDMI, DVI-D, and component YPbPr outputs from the QDVI interface module.

Typical Applications

• Fixed-angle lecture capture in university classrooms and auditoriums requiring 30x zoom
• Courtrooms and government chambers with manual pan/tilt installed during room setup
• Houses of worship with distant subject framing and 1080p60 recording requirements
• Broadcast and production environments needing DVI-D or YPbPr outputs alongside HDMI

Technical Specifications

Frequently Asked Questions

Is the QDVI Interface Module included with 999-6930-200?
Yes. The 999-6930-200 is the complete QDVI System and ships with the QDVI Quick-Connect Interface Module. The 999-6930-000 is the camera body only without the interface module.

Can the ZoomSHOT 30 QDVI be controlled remotely?
Zoom can be controlled via the QDVI interface using RS-232 or IR. Pan and tilt are manual; they are set by the installer with EZ-Set friction tensioning and are not motor-driven.

What cable is required?
A single Cat-5e cable (up to 131 ft / 40m) connects the camera to the QDVI interface module at the AV rack. Contact Creation Networks for assistance with system design.
