Vaddio ZoomSHOT 30 AVBMP - 30x Zoom Camera for AV Bridge MATRIX PRO

Product Overview

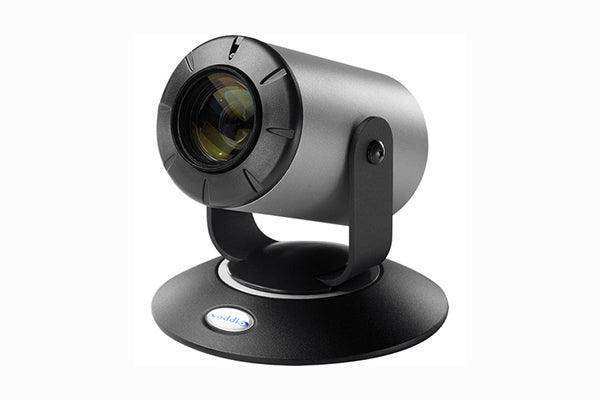

The Vaddio ZoomSHOT 30 AVBMP (999-6930-000) is a 30x optical zoom point-of-view camera designed exclusively for use with the Vaddio AV Bridge MATRIX PRO. It cannot be used as a standalone camera — power and control are provided entirely by the AV Bridge MATRIX PRO system. The ZoomSHOT 30 AVBMP uses a 1/2.8" Sony Exmor CMOS sensor (1.3MP) with a 63° horizontal field of view at the wide end and manual pan/tilt with EZ-Set tensioning, bringing 30x optical zoom coverage to MATRIX PRO installations. For standalone operation with a QDVI interface, see 999-6930-200; for QMini USB output, see 999-6930-400.

Product Description

The ZoomSHOT 30 AVBMP integrates into Vaddio AV Bridge MATRIX PRO multi-camera deployments as a telephoto zoom source. The MATRIX PRO handles all routing, mixing, and output — sending the camera’s feed to codecs, USB soft clients, displays, and recording systems depending on system configuration. The AVBMP suffix designates that this camera is matched for the MATRIX PRO power and control interface.

Manual pan/tilt with EZ-Set friction tensioning allows the installer to set the camera angle precisely at setup without motorized repositioning. The 30x optical zoom with 63° wide HFOV provides coverage of large rooms and distant subjects from a fixed ceiling mount position.

Key Features

• AV Bridge MATRIX PRO Required - Camera is powered and controlled entirely by the AV Bridge MATRIX PRO; not for standalone use.
• 30x Optical Zoom - 63° HFOV at wide end for large rooms and distant framing.
• 1/2.8" Sony Exmor CMOS - 1.3MP sensor for high-quality 1080p HD video.
• Manual Pan/Tilt with EZ-Set Tensioning - Installer-adjusted friction tensioning for fixed-angle installations.
• Minimum Illumination 0.3 Lux - Suitable for low-light meeting and conferencing environments.

Typical Applications

• Multi-camera MATRIX PRO installations in large conference rooms and boardrooms needing a 30x zoom source
• Lecture halls and auditoriums where the MATRIX PRO controls multiple camera angles including a zoom camera
• Government and corporate AV systems with AV Bridge MATRIX PRO as the central mixing point

Technical Specifications

Frequently Asked Questions

Can the ZoomSHOT 30 AVBMP be used without an AV Bridge MATRIX PRO?
No. This camera requires the AV Bridge MATRIX PRO for power and control. For standalone operation, see the ZoomSHOT 30 QDVI System (999-6930-200) for HDMI/DVI-D output or the ZoomSHOT 30 QMini System (999-6930-400) for USB 2.0 output.

How many ZoomSHOT 30 AVBMP cameras can the MATRIX PRO support?
Refer to the AV Bridge MATRIX PRO specifications for the maximum number of connected cameras. Contact Creation Networks for system design assistance.
