Description
Vaddio WideSHOT SE Overview

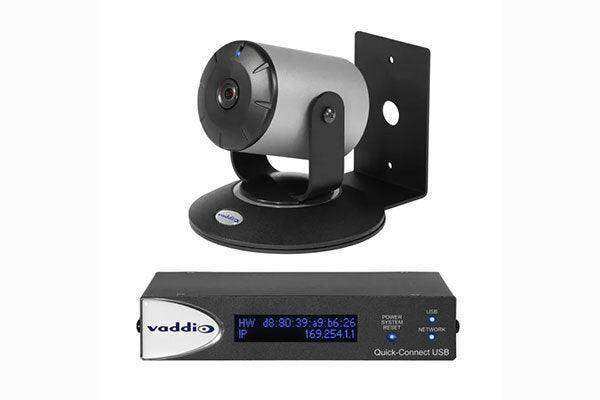

Capture full motion video in a small UC conference room or executive office with the WideSHOT SE QUSB IP Camera System from Vaddio. The fixed camera has a wide horizontal field of view of 111° in a 16:9 HD format, a fixed lens with 3x digital zoom, and offers manual pan/tilt positioning. The 1/2" CMOS image sensor allows you to shoot a wide scene in dimly lit auditoriums.
The camera uses the Vaddio EZCamera Cat 5 wiring standard for video, power, and control. Using the Vaddio HSDS video outputs over Cat 5 cable, the WideSHOT SE supplies video at resolutions up to 1080p/60 that are selectable from the rear panel. Choose between three IR frequencies for the IR Remote Commander to allow multiple cameras to be locally controlled with a single remote control. The camera also provides an OSD for easy setup and basic image control accessible with an IR remote.
The included Quick-Connect USB Mini interface provides web-based camera control. Simply connect a PC with a USB 2.0 port to the USB Type-B connector on the front panel of the USB Mini, connect the camera Cat 5 and connect the power supply, and the UVC drivers will automatically negotiate the highest possible resolution that the PC, UC application, and USB Mini can provide; up to 720p at 30 fps. An integrated mounting flange is built in for easy under-table or wall mounting. For added convenience, an EZCamera control adapter is included.
HD video select via 16-position rotary switch used to set HD video resolution output
Six-position dip switch for IR frequency, image flip, and digital zoom
RJ45 connector is used with the Quick-Connect USB and USB Mini interfaces to supply power and return HSDS video from the camera over Cat 5 cable
Cat 5 cable up to distance of 150'
RS-232 port accepts modified VISCA protocol for camera control
The camera features presets, CCU functions, scene/room labels, security features, and diagnostic web pages
USB 2.0 video streaming using UVC drivers in MJPEG format
Vaddio WideSHOT SE Specs
| Image Sensor |
1/2" CMOS |
| Resolution |
2.4 MP Total
2.1 MP Active |
| Video Output Resolution (HD) |
1080 at 59.94, 50, 30, and 25 fps
1080i at 59.94 and 50 fps
720p at 59.94 and 50 fps |
| Video Output Resolution (Standard) |
480p at 59.94 fps
576p at 50 fps |
| Lens |
3x Digital Zoom, Fixed Focus |
| Horizontal Viewing Angle |
111° Wide
95° Tele |
| Video S/N Ratio |
>50 dB |
| Minimum Illumination |
0.2 Lux |
| Serial Control |
RS-232, 9600 Baud |
| Pan/Tilt |
Pan - Limited to Service Loop of Cabling, Yoke, and Base are Mechanical
Tilt -30 to 30°
Invertible for Ceiling Mount |
| Tally Light |
Red LED through RS-232 Control |
| Connectors |
1 x RJ45, EZ-Power VIDEO on Shielded RJ45F
1 x RJ45, RS-232 on Shielded RJ45F
1 x USB 2.0 on Type-B Female
1 x 5.5 mm OD x 2.5 mm ID Coaxial Connector at 24 VDC, 2.0 A |
| Controls |
IR SHOT Commander and RS-232
OSD |
| Material of Construction |
Aluminum and Steel |
| Weight |
Camera: 2.25 lb / 1.02 kg
Quick-Connect USB Mini Interface: 1.12 lb / 0.51 kg |
| Dimensions |
Camera: 4 x 5.5 x 5.5" / 101.6 x 139.7 x 139.7 mm
Quick-Connect USB Mini Interface: 3.125 x 1.125 x 4.5" / 79.38 x 28.6 x 114.3 mm, Not Including Flange |
| Warranty |
Limited 2-Year Warranty |
