Vaddio- 999-1005-032 USB 3 Extenders

Spec Sheet

USB 3 Extenders pass USB 3.1 over CAT 6a/7 cable up to 328 ft (100 m)

Key Features:

• Up to 328 ft (100 m) of extension
• Supports USB 3.1 Gen 1, USB 2.0, and USB 1.1
• Plenum-rated cabling solution
• Plug and play - no software drivers needed

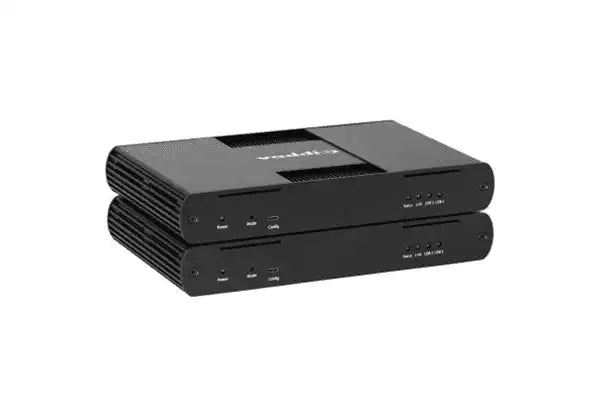

With plug and play capability - no software drivers needed, and supporting USB 3.1 over CAT 6a/7 cable, Vaddio's USB 3 Extenders offer extension of up to 328 feet. This 4-Port Point-to Point Extender System enables you to extend USB 3.1 beyond the standard 3m cable limit for USB 3.1 peripheral devices (like a camera or other AV source) is done by this extender system which is composed of two individual units, the Local Extender and the Remote Extender, and has the following features:

• Up to 328 ft (100 m) of extension when directly connected over CAT 6a/7 cable
• USB 3.1 Gen 1 data rate up to 5Gbps
• Supports up to four remote USB devices simultaneously at full bandwidth (5Gbps)
• True plug and play; no software drivers required
• Works with all major operating systems: Windows®, macOS™, Linux® and Chrome OS™
• 100/1000 Ethernet channel; LAN pass-through

Includes

• USB 3 Local (Rx) Extender unit
• USB 3 Remote (Tx) Extender unit
• Local Extender 24V, 1A power supply with AC cord set(s)
• Remote Extender 24V, 2.71A power supply with AC cord set(s)
• USB 3.1 Gen 1 cable, 6 ft (1.8 m)
• Quick-Start Guide

Features

• Up to 328 ft (100 m) of extension
• Supports USB 3.1 Gen 1, USB 2.0, and USB 1.1
• Plenum-rated cabling solution
• Plug and play - no software drivers needed

Specifications

• SKU: 999-1005-032
• Color: Black
• Certifications: CE Approved, FCC Approved
• Product Width: 9.13" (23.19 cm)
• Product Height: 1.38" (3.51 cm)
• Product Depth: 5.39" (13.69 cm)
• Product Weight: 4.65 lbs (2.11 kg)
• Input Ports: USB 3.0
• Output Ports: USB 3 Type B
• Operating Temperature: 32° to 122°F (0° to 50°C)
• Warranty: 2 years
• Power Supply: 24 VDC, 2.71 A, 24 VDC, 1.0 A
• Distance: 328 ft (100 m)
