Product Overview

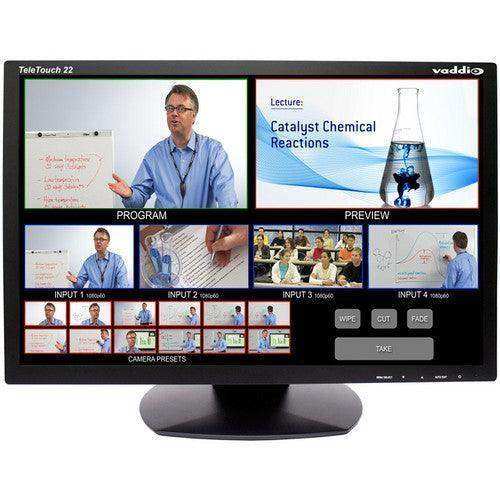

The Vaddio TeleTouch HD 22" Touch Screen LCD Monitor with Base (999-5520-022) is a 22-inch 1080p touchscreen display designed for use with Vaddio ProductionVIEW MV series consoles. Using 5-wire resistive touch technology, it allows operators to control the ProductionVIEW HD MV and ProductionVIEW HD-SDI MV multiviewer consoles by touch — switching live feeds, selecting preset camera shots, and monitoring up to 6 input windows and 2 preview/program windows simultaneously. The base is included.
Product Description
The TeleTouch HD 22" delivers 1080p/60 and 1080p/50 video at 16.7 million display colors with a 1000:1 contrast ratio and 300 nit brightness. Its 170° (H) x 160° (V) viewing angle ensures visibility from wide positions around the operator position. The 0.282mm pixel pitch provides sharp detail across the full 22-inch display area.
When used with ProductionVIEW MV series firmware, the touchscreen enables video thumbnails of up to 12 preset camera shots per PTZ camera input, making it easy for an operator to switch between camera views in a multi-camera production environment. The multiviewer can display up to 6 input windows plus two larger preview and program windows with red/green tally borders for at-a-glance tally status.
Key Features
- 22" 1080p HD Touchscreen - Resistive touch control for ProductionVIEW MV series consoles without a separate mouse or keyboard.
- 5-Wire Resistive Touch Technology - Compatible with gloved hands and stylus for flexible operator use.
- Up to 6 Input Windows + 2 Preview/Program Windows - Multiviewer display with red/green tally borders for live production monitoring.
- 12 Preset Camera Shot Thumbnails per PTZ Input - Quick visual selection of stored camera positions during live events.
- 1000:1 Contrast, 300 nit, 170° (H) x 160° (V) Viewing Angle - Professional display quality for operator stations.
- Base Included - Ships with tabletop base for operator desk use.
Typical Applications
- Operator stations in houses of worship, courtrooms, and boardrooms using ProductionVIEW MV series consoles
- Live event production environments with multi-camera PTZ control and tally monitoring
- Distance learning facilities with ProductionVIEW-based multi-camera switching
- Broadcast and AV production rooms requiring touchscreen camera control
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | 999-5520-022 |
| Display Size | 22" |
| Resolution | Up to 1080/60p and 1080/50p |
| Display Colors | 16.7 million |
| Touch Technology | 5-wire resistive |
| Contrast Ratio | 1000:1 |
| Brightness | 300 nit (cd/m²) |
| Viewing Angle | 170° (H) x 160° (V) |
| Pixel Pitch | 0.282mm |
| Input Windows | Up to 6 input windows + 2 preview/program windows |
| Camera Presets per Input | Up to 12 thumbnail presets per PTZ camera input |
| Compatible Systems | ProductionVIEW HD MV, ProductionVIEW HD-SDI MV |
Frequently Asked Questions
Is the TeleTouch HD compatible with all Vaddio products?
The TeleTouch HD 22" is designed specifically for use with Vaddio ProductionVIEW HD MV and ProductionVIEW HD-SDI MV multiviewer consoles. It is not a general-purpose monitor for other Vaddio systems.
Can I use a stylus or gloves with the touchscreen?
Yes. The 5-wire resistive touch technology is compatible with gloved hands and stylus input.
Is a VESA mount option available?
The unit ships with a tabletop base. Contact Creation Networks for mounting options and compatibility information.
