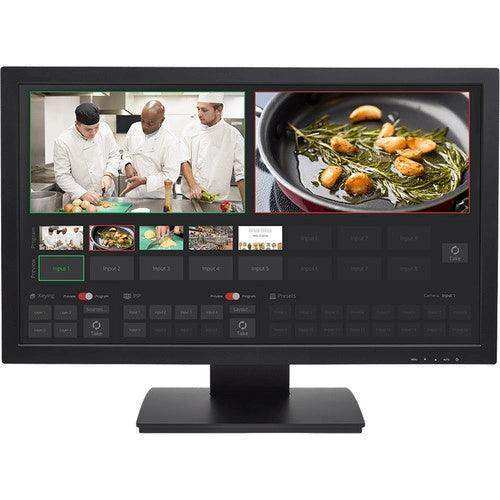

Vaddio TeleTouch 27" USB Touchscreen Multiviewer Display - 999-80000-027

Product Overview

The Vaddio TeleTouch 27" USB Touchscreen Multiviewer Display (999-80000-027) is a purpose-built touch monitor for live production control environments using the Vaddio AV Bridge MatrixMIX and PCC MatrixMIX systems. It displays simultaneous video feeds from all sources connected to the MatrixMIX switcher, with program and preview outputs clearly identified, enabling operators to make confident switching decisions during live events. The capacitive touchscreen provides an interactive control surface for preset recall, video switching, and graphics keying without requiring a separate mouse or keyboard. At 1080p60 with 300 cd/m² brightness and 16.7 million display colors, the display gives operators a clear, accurate picture of what the audience sees.

Product Description

In a live production environment, the operator's primary challenge is knowing what every camera is doing while making real-time switching decisions. The TeleTouch 27" solves this by displaying all video sources from the AV Bridge MatrixMIX in a single multiviewer layout — program output, preview, and available sources — on a 27-inch touchscreen that doubles as a physical control interface. Touching a source tile on the screen selects that input, initiates a preset recall, or executes a video transition, depending on the MatrixMIX configuration.

The high-precision capacitive touchscreen is engineered to avoid accidental contact — it responds to deliberate fingertip input rather than objects or the side of a hand, which is a practical requirement in demanding live production workflows where an accidental screen bump could trigger an unwanted cut. Built-in speakers allow the operator to monitor an audio mix from the connected MatrixMIX switcher without requiring a separate monitor speaker system.

The display panel itself is optimized for operator use: 1080p60 resolution and 170×160° viewing angles mean all sources are legible even when the operator’s viewing position is not perfectly centered. The 300 cd/m² brightness holds up in typical production room lighting. The industrial-grade surface is smudge-resistant and easy to clean — important in environments where the display is touched continuously throughout a production day.

The included base stand supports up to 90° tilt for ergonomic positioning on a production desk or table. VESA 100×100 and 200×100 mounting patterns are supported for installations requiring arm or wall mounting. The TeleTouch 27" connects to the host MatrixMIX system via USB and HDMI — note that it requires the AV Bridge MatrixMIX or PCC MatrixMIX for multiviewer functionality and is not a standalone display.

Key Features

• Purpose-Built for Vaddio MatrixMIX Systems - Designed specifically for use with the AV Bridge MatrixMIX and PCC MatrixMIX; displays all video sources in a multiviewer layout with program and preview identification.
• 27-Inch Capacitive Touchscreen - High-precision capacitive touch surface enables preset recall, video switching, and graphics keying directly on the display; ignores accidental contact.
• 1080p60 Resolution - Full HD at 60 frames per second for clear, smooth display of all connected video sources.
• 16.7 Million Display Colors - Full-color display accurately represents the video content across all monitored sources.
• 300 cd/m² Brightness - Readable under typical production room lighting without excessive glare.
• 170×160° Viewing Angle - Wide viewing angle keeps sources legible across the full production desk without repositioning.
• Built-In Speakers - Monitor audio mix from the connected MatrixMIX without a separate speaker system.
• Smudge-Resistant Industrial Surface - Durable, easy-to-clean surface suitable for continuous touchscreen operation in production environments.
• Flexible Mounting - VESA 100×100 and 200×100 patterns plus a tilt-adjustable base stand up to 90°.

Typical Applications

• Broadcast studios and live production control rooms
• Auditoriums and performing arts venues using Vaddio MatrixMIX systems
• Houses of worship with live streaming and IMAG production workflows
• University and corporate broadcast studios
• All-hands rooms with multi-camera AV switching requirements

Technical Specifications

Frequently Asked Questions

Can the TeleTouch 27" be used as a standalone display?
No. The TeleTouch 27" is designed specifically to work with the Vaddio AV Bridge MatrixMIX or PCC MatrixMIX systems for multiviewer and touch-control functionality. It is not a general-purpose display.

What actions can be performed by touching the screen?
Operators can perform preset recall, video source switching, and graphics keying directly on the touch surface, depending on the MatrixMIX system configuration.

Does the TeleTouch 27" include speakers?
Yes. Built-in speakers allow monitoring of an audio mix from the connected MatrixMIX switcher without a separate monitor speaker system.

What mounting options are available?
The display includes a base stand with up to 90° tilt. VESA 100×100 and 200×100 patterns are available for arm or wall mounting.

What is the lead time for this product?
The TeleTouch 27" is a special order item with expected availability of 2-4 weeks. Contact Creation Networks to confirm current availability and lead time before placing your order.

What warranty does this product carry?
Vaddio commercial AV products carry a standard limited warranty. Contact Creation Networks for warranty terms and service options.
