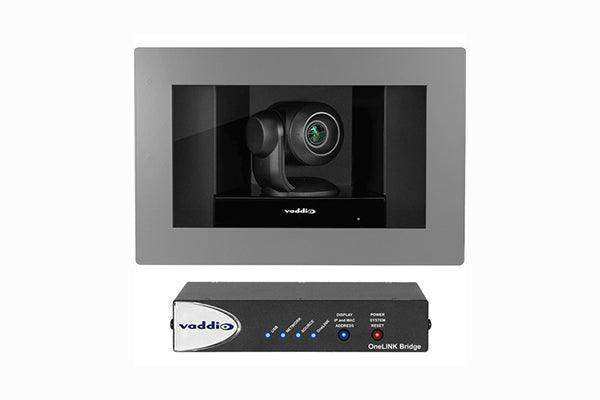

Vaddio RoboSHOT IW Clear Glass OneLINK Bridge - ADA PTZ Camera System (999-9966-280)

Product Overview

The Vaddio RoboSHOT IW Clear Glass OneLINK Bridge System (999-9966-280) is a semi-flush in-wall PTZ camera enclosed in a clear glass-fronted housing, designed for conference rooms, boardrooms, and high-traffic commercial spaces where camera protection and ADA compliance are required. Clear glass keeps the camera visible and accessible while shielding it from incidental contact. Combined with the OneLINK Bridge interface, this in-wall PTZ camera delivers power, HD video, and bidirectional control over a single HDBaseT cable, with simultaneous HDMI, USB 3.0, IP streaming, and HD-SDI outputs for flexible room integration.

Product Description

The RoboSHOT IW Clear Glass OneLINK Bridge System (999-9966-280) suits installations where the camera must remain visible — for example, government facilities, law offices, and conference centers that require ADA compliance or transparent camera placement. The clear glass enclosure protects the PTZ camera body from physical damage in high-traffic areas while maintaining full optical access for the camera lens. This model ships with the OneLINK Bridge, which provides power via HDBaseT over a single Cat-5e or Cat-6 cable.

The OneLINK Bridge routes power, video, and control from the in-wall camera to the equipment rack over a single cable run — Cat-5e up to 230 feet (70m), or Cat-6 up to 328 feet (100m). Output options include simultaneous HDMI, USB 3.0 (up to 1080p/60), IP streaming, and HD-SDI, making this system compatible with a wide range of conferencing codecs, recording systems, and IP video distribution platforms. A configurable audio matrix with AEC supports soft-client conferencing without a separate external DSP. RS-232 and IP control integration works with Crestron, AMX, Extron, Q-SYS, and other commercial room control systems.

Key Features

• Clear Glass Enclosure - Protects the PTZ camera from physical damage in high-traffic spaces while keeping the camera lens fully accessible; ADA compliant.
• Single-Cable HDBaseT - Power, video, and control over one Cat-5e cable (up to 230 ft) or Cat-6 (up to 328 ft).
• OneLINK Bridge Integration - Simultaneous HDMI, USB 3.0, IP streaming, and HD-SDI outputs from a single camera endpoint.
• 1080p/60 Uncompressed USB - High-definition video at 60 fps for sharp conferencing and recording.
• Configurable Audio Matrix with AEC - Built-in acoustic echo cancellation for soft-client conferencing.
• ADA Compliant - Suitable for government, public, and commercial facilities requiring accessibility compliance.
• RS-232 and IP Control - Integrates with Crestron, AMX, Extron, Q-SYS, and other third-party control systems.
• Web UI and Telnet Control - Remote configuration and management via browser or Telnet interface.

Typical Applications

• Boardroom
• Conference room
• Government space
• Commercial meeting space
• All-hands room

Technical Specifications

Frequently Asked Questions

Why choose a clear glass enclosure over an open mount?
The clear glass housing protects the PTZ camera from accidental contact in high-traffic areas while maintaining full camera visibility. It is also ADA compliant, which is important in government and public-access facilities.

What cable type is required?
A single Cat-5e cable supports cable runs up to 230 feet; Cat-6 extends this to 328 feet. Power, video, and control all run over this single cable.

Is this compatible with Crestron or AMX control systems?
Yes. Bidirectional RS-232 and IP (Ethernet/Telnet) control make this system compatible with Crestron, AMX, Extron, Q-SYS, and other commercial room control platforms.

What outputs does the OneLINK Bridge provide?
Simultaneous HDMI, USB 3.0 (up to 1080p/60), IP streaming, and HD-SDI outputs support conferencing codecs, recording systems, and IP video distribution.

What is the difference between models 999-9966-280 and 999-9966-200?
Both models are RoboSHOT IW Clear Glass OneLINK Bridge Systems. The model suffix typically indicates regional power or configuration differences. Contact Creation Networks to confirm the right model for your project.

What warranty is included?
Vaddio products typically carry a 3-year limited warranty. Contact Creation Networks for details.
