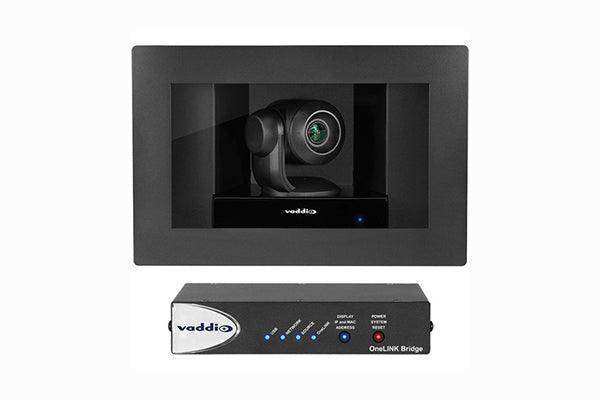

Vaddio RoboSHOT IW Clear Glass OneLINK Bridge - ADA PTZ Camera System (999-9966-200)

Product Overview

The Vaddio RoboSHOT IW Clear Glass OneLINK Bridge System (999-9966-200) is a semi-flush in-wall PTZ camera enclosed in a clear glass-fronted housing for conference rooms, boardrooms, and commercial spaces where camera protection and ADA compliance are required. The clear glass front protects the camera from accidental contact in high-traffic environments while keeping the lens fully visible. Paired with the OneLINK Bridge interface, this system delivers power, HD video, and bidirectional control over a single HDBaseT cable — Cat-5e up to 230 feet or Cat-6 up to 328 feet — with simultaneous HDMI, USB 3.0, IP streaming, and HD-SDI outputs for broad integration flexibility.

Product Description

The 999-9966-200 model of the RoboSHOT IW Clear Glass OneLINK Bridge System provides the same ADA-compliant, clear-glass-enclosed PTZ camera platform as the 999-9966-280. It is designed for commercial AV deployments in government facilities, law offices, corporate boardrooms, and conference centers where both camera protection and accessibility compliance are project requirements. The clear glass enclosure is always transparent, so room occupants can easily see the camera and its orientation — useful in spaces where camera visibility is a procedural or legal requirement.

The OneLINK Bridge provides a full multi-output interface from the rack or wall plate to the camera over a single Cat-5e or Cat-6 cable. Outputs include simultaneous HDMI, USB 3.0 (up to 1080p/60), IP streaming, and HD-SDI — supporting conferencing codecs, content capture systems, and IP video distribution in the same installation. The configurable audio matrix with AEC eliminates the need for a separate DSP for soft-client conferencing. RS-232 and IP control are compatible with Crestron, AMX, Extron, Q-SYS, and other commercial room control platforms.

Key Features

• Clear Glass Enclosure - Always-transparent housing protects the PTZ camera while maintaining full lens visibility; ADA compliant.
• Single-Cable HDBaseT - Power, video, and control over one Cat-5e cable (up to 230 ft / 70m) or Cat-6 (up to 328 ft / 100m).
• OneLINK Bridge Integration - Simultaneous HDMI, USB 3.0, IP streaming, and HD-SDI outputs for versatile room integration.
• 1080p/60 Uncompressed USB Output - Full HD video at 60 fps for conferencing and recording applications.
• Configurable Audio Matrix with AEC - Acoustic echo cancellation built in for soft-client conferencing without a separate DSP.
• ADA Compliant - Suitable for government, legal, and public-access commercial facilities.
• RS-232 and IP Control - Compatible with Crestron, AMX, Extron, Q-SYS, and other third-party control systems.
• Web UI and Telnet Control - Remote administration and configuration via browser or Telnet.

Typical Applications

• Boardroom
• Conference room
• Government space
• Commercial meeting space
• All-hands room

Technical Specifications

Frequently Asked Questions

Why use a clear glass enclosure instead of an open PTZ mount?
The clear glass housing protects the camera from accidental contact in high-traffic environments while keeping the lens fully visible. It also meets ADA compliance requirements relevant to government and public-access installations.

What cable is required?
A single Cat-5e supports up to 230 feet; Cat-6 extends to 328 feet. All power, video, and control run over this single cable.

Is this compatible with Crestron or AMX?
Yes. The system supports bidirectional RS-232 and IP (Ethernet/Telnet) control for integration with Crestron, AMX, Extron, Q-SYS, and other commercial control systems.

What outputs does the OneLINK Bridge provide?
Simultaneous HDMI, USB 3.0 (up to 1080p/60), IP streaming, and HD-SDI — covering conferencing codecs, recording, and IP video distribution in one installation.

What warranty is included?
Vaddio products typically carry a 3-year limited warranty. Contact Creation Networks for warranty details and support.
