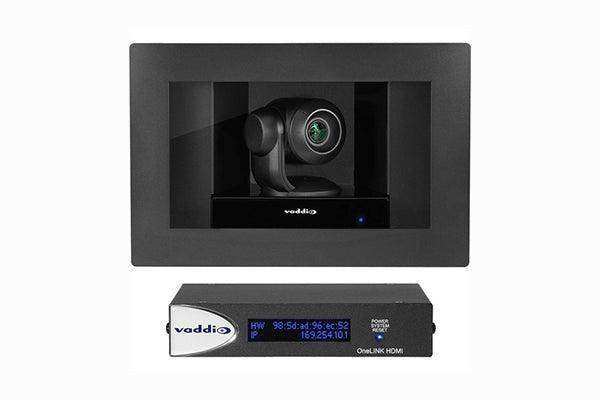

Vaddio RoboSHOT IW Clear Glass OneLINK Bridge System - Recessed In-Wall PTZ Camera (999-9966-100)

Product Overview

The Vaddio RoboSHOT IW Clear Glass OneLINK Bridge System is a fully recessed in-wall PTZ camera solution for commercial conference rooms and meeting spaces where a discreet, flush-mounted camera installation is required. The RoboSHOT IW camera is concealed behind a clear glass panel and pairs with the OneLINK Bridge receiver, delivering simultaneous HDMI, USB 3.0, and IP H.264 streaming outputs over a single HDBaseT cable. This system is suited for AV integrators building permanent, high-appearance installations in boardrooms, executive conference rooms, and government spaces.

Product Description

The RoboSHOT IW (In-Wall) camera installs recessed into a standard wall, presenting a clean glass-panel appearance rather than an exposed camera head. The clear glass front keeps the camera visible at all times while maintaining a low-profile aesthetic appropriate for executive and commercial environments. The camera delivers 10x optical zoom with a 73° horizontal field of view and 1080p HD video quality, making it effective in small to medium conference rooms.

The included OneLINK Bridge receiver extends camera power, video, and control over a single Cat-5e cable up to 230 ft (70m) or Cat-6 cable up to 328 ft (100m), with no separate power run needed at the camera location. The Bridge receiver outputs simultaneous HDMI, USB 3.0 (uncompressed, up to 1080p/60), and IP H.264 streaming for integration with soft-codec conferencing platforms including Microsoft Teams, Zoom, and Cisco Webex. An integrated audio matrix with acoustic echo cancellation (AEC) is included in the Bridge receiver for clean audio routing. Remote IP management, RS-232, Telnet, and IR remote control are supported. Browse comparable Vaddio in-wall camera systems at Creation Networks.

Key Features

• Flush In-Wall Installation - Camera installs recessed into a standard wall cavity behind a clear glass panel, providing a premium appearance without exposed hardware.
• Clear Glass Panel - Camera is visible through the glass at all times; appropriate for spaces where presence awareness is required.
• 10x Optical Zoom - 73° horizontal field of view (wide end) for small to medium conference room coverage.
• 1080p HD Video - Full HD 1080p output for clear, high-quality video conferencing and recording.
• OneLINK Bridge Receiver Included - Provides simultaneous HDMI, USB 3.0 (uncompressed, up to 1080p/60), and IP H.264 streaming outputs from a single receiver unit.
• Single-Cable HDBaseT Extension - Power, video, and control over one Cat-5e cable (up to 230 ft / 70m) or Cat-6 (up to 328 ft / 100m).
• Audio Matrix with AEC - Configurable audio routing with acoustic echo cancellation built into the OneLINK Bridge receiver for soft-codec conferencing integration.
• Remote IP Management - Built-in web server, Telnet, RS-232, and IR remote; integrates with Crestron, Extron, and AMX control systems.

Typical Applications

• Boardroom
• Executive conference rooms
• Government meeting spaces
• Commercial meeting spaces
• Conference rooms (small to medium)
• Multi-purpose rooms

Technical Specifications

Frequently Asked Questions

What is the difference between the Clear Glass and Smart Glass versions?
The Clear Glass version (999-9966-100) has a permanently transparent glass panel — the camera is visible at all times. The Smart Glass version uses electrochromic glass that turns opaque when the camera is powered off and becomes transparent when it powers on, providing a cleaner aesthetic in privacy-sensitive environments.

Does the system include USB 3.0 output for soft-codec conferencing?
Yes. The OneLINK Bridge receiver outputs simultaneous HDMI, USB 3.0 (uncompressed up to 1080p/60), and IP H.264 streaming. The USB 3.0 output allows the camera to work as a standard USB device with Microsoft Teams, Zoom, Cisco Webex, and similar platforms.

What rough opening or wall preparation is required for installation?
The RoboSHOT IW requires a standard single-gang or appropriate in-wall rough opening. Refer to the Vaddio installation guide (available at legrandav.com) for exact rough-in dimensions and mounting hardware requirements.

Is this camera compatible with third-party AV control systems?
Yes. RS-232, Telnet, and a built-in web server allow integration with Crestron, Extron, AMX, and other commercial control platforms.

What HDBaseT cable infrastructure is needed?
A single Cat-5e (up to 230 ft / 70m) or Cat-6 (up to 328 ft / 100m) cable runs from the camera location to the OneLINK Bridge receiver. No separate power cabling is required at the camera end.

What is the warranty?
Vaddio products carry a standard 3-year warranty. Contact Creation Networks for support and warranty registration.
