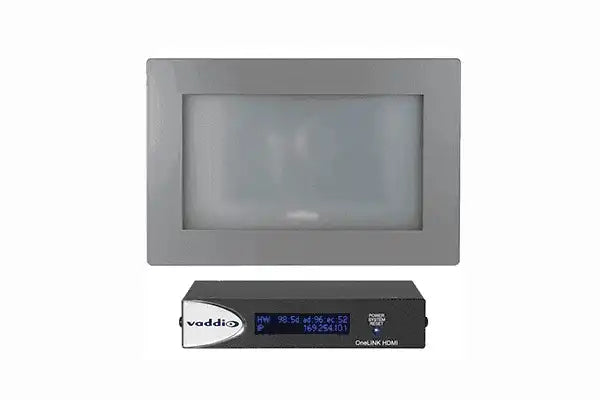

The Vaddio RoboSHOT In-Wall Smart Glass OneLINK Bridge System (Primed, 999-9965-280) is a semi-flush in-wall PTZ camera system for boardrooms, executive conference rooms, and government meeting spaces where architectural aesthetics are a priority. The primed finish lets installers paint the wall plate to match any room color, while the smart glass panel is frosted-opaque when the camera is off and fully clear when powered on. Combined with the OneLINK Bridge interface, this in-wall PTZ camera delivers power, HD video, and bidirectional control over a single Cat-5e or Cat-6 cable, reducing cable infrastructure and simplifying commercial AV installation.
Product Description

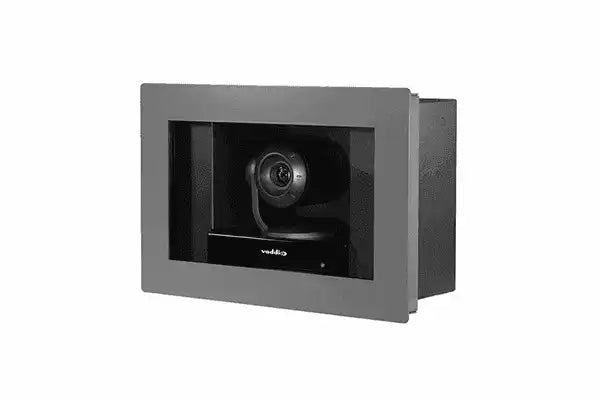

This in-wall PTZ camera system pairs the RoboSHOT HDBaseT camera body — housed in a semi-flush wall enclosure with a smart glass panel — with the Vaddio OneLINK Bridge interface. The OneLINK Bridge delivers simultaneous HDMI, USB 3.0, IP streaming, and HD-SDI outputs, supporting conferencing codecs, recording systems, and IP distribution from a single camera endpoint. Up to 1080p/60 resolution is available over uncompressed USB, and the configurable audio matrix with AEC handles soft-client conferencing without external DSP hardware.
The primed (paintable) finish suits high-end corporate and government installations where the camera must blend into the architecture. A single Cat-5e cable carries power, video, and control up to 230 feet (70m); Cat-6 extends this to 328 feet (100m). Bidirectional RS-232 and IP control make it compatible with Crestron, AMX, Extron, Q-SYS, and virtually any commercial control system. The system is ADA compliant. For the black-finish version, see related Vaddio in-wall PTZ systems at Creation Networks.
Key Features
- Smart Glass Panel - Frosted-opaque when camera is off, transparent when on — a clean, design-forward visual status indicator.
- Primed Finish - Paintable wall plate for custom color-matching in design-sensitive commercial spaces.
- Single-Cable HDBaseT - Power, video, and control over one Cat-5e (up to 230 ft) or Cat-6 (up to 328 ft) cable.
- OneLINK Bridge Integration - Simultaneous HDMI, USB 3.0, IP streaming, and HD-SDI outputs from a single camera system.
- 1080p/60 Uncompressed USB Output - Full HD video at 60 fps for low-latency conferencing and recording.
- Configurable Audio Matrix with AEC - Built-in acoustic echo cancellation for soft-client conferencing without external DSP.
- ADA Compliant - Meets accessibility requirements for commercial and government deployments.
- RS-232 and IP Control - Compatible with Crestron, AMX, Extron, Q-SYS, and other third-party room control platforms.
Typical Applications
- Boardroom
- Conference room
- Government space
- Commercial meeting space
- Multi-purpose room
Technical Specifications
| Specification | Detail |
|---|---|
| Camera | RoboSHOT In-Wall Smart Glass (HDBaseT) |
| Interface | OneLINK Bridge |
| Resolution | Up to 1080p/60 |
| Video Outputs | HDMI, USB 3.0, IP Streaming, HD-SDI (simultaneous) |
| HDBaseT Cabling | Cat-5e up to 230 ft (70m); Cat-6 up to 328 ft (100m) |
| Audio | Configurable audio matrix with AEC |
| Finish | Primed (paintable) |
| Smart Glass | Opaque when off, transparent when on |
| ADA Compliant | Yes |
| Control | Ethernet (IP), RS-232, Telnet, Web UI |
| Part Number | 999-9965-280 |
Frequently Asked Questions
What cable is required for installation?
A single Cat-5e cable supports up to 230 feet; Cat-6 extends to 328 feet. The single cable carries power, video, and bidirectional control.
Can this camera be integrated with Crestron or AMX?
Yes. The system supports bidirectional RS-232 and IP (Ethernet/Telnet) control, compatible with Crestron, AMX, Extron, Q-SYS, and most commercial control systems.
What does the primed finish mean?
The primed finish means the wall plate is ready to paint. AV installers can match the bezel to any wall color for design-sensitive commercial spaces.
What video outputs are available from the OneLINK Bridge?
Simultaneous HDMI, USB 3.0, IP streaming, and HD-SDI outputs — suitable for conferencing codecs, content recording, and IP video distribution.
How does this differ from the OneLINK HDMI version?
The OneLINK Bridge (this product) provides USB 3.0, IP streaming, HD-SDI, and HDMI simultaneously, plus a configurable audio matrix with AEC. The OneLINK HDMI version delivers HDMI output only and is suited to simpler installations.
Is this system ADA compliant?
Yes. The RoboSHOT In-Wall Smart Glass system is ADA compliant for commercial and government installations.
What warranty does this product carry?
Vaddio products typically include a 3-year limited warranty. Contact Creation Networks for warranty details and support options.
