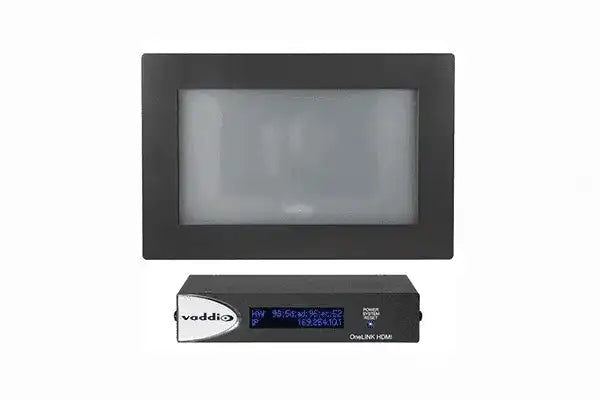

Vaddio RoboSHOT In-Wall Smart Glass OneLINK Bridge System - Recessed PTZ Camera (Black)
Vaddio RoboSHOT In-Wall Smart Glass OneLINK Bridge System - Recessed PTZ Camera (Black) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Vaddio RoboSHOT In-Wall Smart Glass OneLINK Bridge System - Recesse...
Product Overview
The Vaddio RoboSHOT In-Wall Smart Glass OneLINK Bridge System is a semi-flush-mounted recessed PTZ camera system designed for corporate boardrooms, executive conference rooms, law offices, and government spaces where interior aesthetics and privacy transparency are priorities. The camera's electrochromic smart glass cover transitions from frosted opaque when off to clear when active, providing unambiguous visual confirmation of recording status without additional indicator lights or signage. Paired with the included OneLINK Bridge A/V Interface Receiver, the system delivers simultaneous USB 3.0, HDMI 1.4b, and 3 Gb/s HD-SDI outputs over a single Cat5e cable run up to 328 feet.
Product Description
The RoboSHOT IW Smart Glass camera supports HD 1080p at 60 fps and is engineered for drywall or stud-wall installation in high-traffic environments. The tempered safety glass panel protects the camera from tampering in classrooms, multipurpose rooms, and government spaces while maintaining a clean, architecturally integrated appearance. The recessed semi-flush mount meets ADA standards for accessible design, making the camera appropriate for a broad range of commercial AV system installations where flush-mounted hardware is required.
The camera features wide dynamic range, backlight compensation, and automatic or manual adjustment of color, shading, and image parameters for consistent image quality across varying room lighting conditions. It supports PoE+ power for IP streaming configurations and can also connect to HDBaseT video switches for extended cable runs. Control protocols include modified VISCA via RS-232, Telnet, and a browser-based web interface for remote firmware updates and network management.
The OneLINK Bridge receiver outputs simultaneous uncompressed USB 3.0, HDMI, and 3G-SDI, with two balanced audio inputs and two balanced outputs via 3-pin phoenix connectors. The system integrates with Zoom, Microsoft Teams, Cisco Webex, Skype for Business, and Google Meet as a USB conferencing camera without additional drivers.
Key Features
- Electrochromic Smart Glass Privacy Indicator - Glass panel shifts from frosted to clear when the camera is active, giving occupants visible confirmation of recording status at a room scale.
- ADA-Compliant Recessed Installation - Semi-flush mounting meets ADA standards for accessible design; no protrusions into the room's traffic path.
- Tempered Safety Glass Panel - Protects the camera from tampering in high-traffic areas including classrooms, government spaces, and multipurpose rooms.
- 1080p60 Video - Full HD video at up to 60 fps with wide dynamic range and backlight compensation for consistent performance in variable lighting.
- PoE+ Powered - Camera powered over the network connection via PoE+ (802.3at), simplifying installation without separate power wiring to the wall.
- OneLINK Bridge Integration - Simultaneous USB 3.0, HDMI 1.4b, and 3G-SDI outputs from a single Cat5e cable run up to 328 ft from camera to rack.
- Two Balanced Audio I/O - 3-pin phoenix connectors for professional audio routing of room microphones and speakers.
- Multi-Protocol Control - RS-232 (modified VISCA), Telnet, browser-based web interface, and IR remote; compatible with Vaddio ProductionVIEW and PCC Premier controllers.
- Soft Codec USB Integration - USB 3.0 output connects directly to Zoom, Teams, Webex, and other BYOD conferencing platforms.
Typical Applications
- Corporate boardroom and executive conference room
- Law office and legal conference facility
- Government meeting space
- Multi-purpose room and training room
- All-hands room with design-conscious AV integration
- Conference room requiring ADA-compliant hardware
Technical Specifications
| Camera – RoboSHOT IW Smart Glass | |
|---|---|
| Video Output | 1080p at 60 fps (1920×1080) |
| Glass Type | Electrochromic tempered safety glass (frosted off → clear on) |
| Min Illumination | 0.4 lx (F1.6, AGC on, 1/30s); 0.1 lx high sensitivity mode |
| Wide Dynamic Range | Yes |
| Backlight Compensation | Yes |
| White Balance | Auto, manual, one-push |
| Control | RS-232 (modified VISCA), Telnet, web interface, IR remote |
| Power | PoE+ (802.3at) or HDBaseT |
| Mounting | Recessed semi-flush, drywall/stud-wall installation |
| ADA Compliance | Yes (recess-mounted) |
| Certifications | CE, FCC |
| Warranty | 2-year limited |
| OneLINK Bridge A/V Interface Receiver | |
|---|---|
| Compatible Cameras | RoboSHOT 12E / 30E HDBT, RoboSHOT 20 / 40 UHD, RoboSHOT IW, DocCAM 20 HDBT |
| Video Outputs | 1x HDMI (1.4b), 1x BNC (3G-SDI) |
| USB Output | 1x USB-B 3.0 / 3.2 Gen 1 |
| Audio I/O | 2x balanced mic/line in; 2x balanced line/speaker out (3-pin phoenix) |
| Network | 1x RJ45 Ethernet; 1x RJ45 RS-232; 1x RJ45 OneLINK camera interface |
| Max Camera Cable | 328 ft / 100 m (Cat5e) |
| Power | 48 VDC at 1.36 A |
| Dimensions | 8.4 × 6 × 1.7" / 21.3 × 15.2 × 4.4 cm |
| Weight | 3.3 lb / 1.5 kg |
| Certifications | CE, FCC, TAA, UL |
| Operating Conditions | 32–72°F / 0–40°C at 15–80% RH |
| Warranty | 2-year limited |
Frequently Asked Questions
What makes the smart glass useful in corporate or legal settings?
Unlike a small LED indicator, the electrochromic glass provides a room-scale visual signal: frosted when off, clear when recording. This is particularly valuable in sensitive legal, executive, and government meeting environments where participants need to confirm camera status without approaching the camera.
How is the camera installed?
The RoboSHOT IW is designed for drywall or stud-wall recessed installation using included fastening and mounting hardware. The semi-flush mount integrates cleanly with standard finished walls without protrusions.
Does this system support USB-based conferencing platforms?
Yes. The OneLINK Bridge receiver outputs USB 3.0 compatible with Zoom, Microsoft Teams, Cisco Webex, Skype for Business, and Google Meet without additional drivers.
What camera control options are available?
Control is available via RS-232 (modified VISCA), Telnet, browser-based web interface, and the included IR remote. The system is also compatible with Vaddio ProductionVIEW, PCC Premier Precision Controller, and AV Bridge MATRIX PRO.
Can the camera be powered from a PoE network switch?
Yes. The camera supports PoE+ (802.3at) for IP streaming configurations. It can also connect to an HDBaseT video switch when used with an OneLINK extension.
What is the maximum cable run from camera to receiver?
The OneLINK Bridge supports up to 328 ft (100 m) of Cat5e cable between camera and receiver.
What is the warranty on this system?
Both the RoboSHOT IW camera and the OneLINK Bridge receiver carry a 2-year limited manufacturer warranty from Vaddio (Legrand AV).
