Vaddio RoboSHOT 40 UHD - 4K OneLINK Bridge Express PTZ System (White)
Vaddio RoboSHOT 40 UHD - 4K OneLINK Bridge Express PTZ System (White) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.

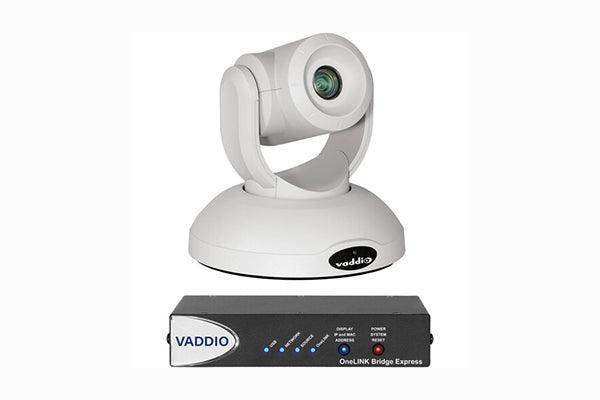

Vaddio RoboSHOT 40 UHD - 4K OneLINK Bridge Express PTZ System (White)
Product Overview
The Vaddio RoboSHOT 40 UHD OneLINK Bridge Express System in white (999-9952-270W) delivers broadcast-quality 4K UHD video for live production, corporate broadcast, house of worship, and large-venue AV applications. It pairs the RoboSHOT 40 UHD 4K PTZ camera with the OneLINK Bridge Express interface, extending power, video, and control over a single Cat cable up to 328 ft. The white finish makes it a natural fit for light-colored ceiling installations and rooms where camera visibility is a design consideration. The RoboSHOT 40 UHD captures native 2160p/30 (3840x2160) from a back-illuminated 1/2.5" Exmor R CMOS sensor, with 20x optical zoom, 30x lossless in 4K, and 40x zoom in HD.
Product Description
The RoboSHOT 40 UHD simultaneously outputs HDMI, HDBaseT, 3G-SDI/BNC, and IP streaming — all outputs are active at all times without requiring selection, enabling simultaneous feed to a display, recording system, and streaming encoder. Genlock input enables synchronization across multiple cameras in a multi-camera broadcast production. Vaddio's silent motors and Tri-Synchronous Motion algorithms deliver smooth, jitter-free pan and tilt at up to 120°/sec across a 320° pan range and 120° tilt range. The OneLINK Bridge Express adds USB 3.0 output for UC platform integration and a configurable audio matrix with AEC for clean conferencing audio. The system carries CE, FCC, and TAA certifications, making it eligible for U.S. government procurement. For the full Vaddio product line including cameras, mounts, and cables, visit creationnetworks.net/collections/vaddio.
Key Features
- 4K UHD 2160p/30 Native Output - Back-illuminated 8.51 MP 1/2.5" Exmor R CMOS sensor, native 3840x2160 at 30p in white finish.
- 20x Optical / 30x Lossless 4K Zoom - 30x lossless in UHD 4K, 40x in full HD; 70.2° wide to 2.05° telephoto FOV.
- Simultaneous HDMI, 3G-SDI, HDBaseT, and IP Outputs - All four outputs active simultaneously; no output switching required.
- Genlock Support - External sync input for multi-camera production synchronization.
- Tri-Synchronous Motion Technology - Silent motors, 320° pan / 120° tilt range at 0.35 to 120°/sec with no jitter.
- Single-Cable HDBaseT Extension via OneLINK Bridge Express - Power, video, and control over one Cat 5e (230 ft) or Cat 6 (328 ft) cable.
- USB 3.0 Output - UVC-compatible for direct connection to Teams, Zoom, Webex, and other UC platforms.
- Configurable Audio Matrix with AEC - Balanced analog I/O on the Bridge Express for clean room audio integration.
- 16 PTZ Presets - Programmable via IR remote, RS-232, Telnet, or web interface.
- TAA Compliant - CE, FCC, and TAA certified; eligible for U.S. government procurement.
- White Finish - Low-profile white camera body for architectural blending in light-colored ceiling installations.
- Web-Based Administration - Browser-based control for camera setup, streaming config, and diagnostics.
Typical Applications
- Broadcast studio and corporate broadcast
- House of worship live production
- Large auditorium and all-hands room
- Multi-camera live event production
- Conference room and boardroom
- Distance learning and training room
Technical Specifications
| Specification | Value |
|---|---|
| Model Number | 999-9952-270W (White) |
| Image Sensor | 1/2.5" Back-Illuminated Exmor R CMOS |
| Effective Resolution | 8.51 Megapixel (3840 x 2160) |
| Max Video Output (Camera) | 3840x2160 at 30p; 1920x1080p at 60p (via HDMI/HDBaseT/SDI/IP) |
| Optical Zoom | 20x optical; 30x lossless in UHD 4K; 40x in HD |
| Horizontal FOV | 70.2° (wide) to 2.05° (tele) |
| Maximum Aperture | f/2.0 |
| SNR | 50 dB |
| Minimum Illumination | 100 Lux |
| Pan Range / Speed | 320° (-160° to 160°) at 0.35 to 120°/sec |
| Tilt Range / Speed | 120° (-30° to 90°) at 0.35 to 120°/sec |
| PTZ Presets | 16 |
| Camera Outputs | 1x HDMI, 1x RJ45 (HDBaseT), 1x BNC (3G-SDI) |
| Bridge Express Outputs | HDMI (up to 1080p60), USB 3.0 Type-B (up to 1080p60), IP H.264 streaming |
| Audio (Bridge) | Balanced analog mic/line I/O, configurable AEC matrix |
| Genlock | Yes — external sync input for multi-camera production |
| Power | PoE++ 802.3bt (camera); included 48V and 12V adapters (bridge) |
| Max Cable Run (Bridge) | 230 ft (70m) Cat 5e; 328 ft (100m) Cat 6 |
| Control | RS-232 (RJ45), HDBaseT, IR Remote, Telnet, Web Browser |
| Certifications | CE, FCC, TAA |
| Camera Dimensions (WxHxD) | 8 x 7.9 x 5.5" / 20.3 x 20.1 x 14.0 cm |
| Camera Weight | 6 lb / 2.7 kg |
| Operating Temperature | 32 to 104°F (0 to 40°C), 20-80% RH |
| Warranty | 3-year limited manufacturer warranty |
Frequently Asked Questions
What is the maximum zoom of the RoboSHOT 40 UHD?
20x optical zoom; 30x lossless in UHD 4K (3840x2160); 40x in full HD (1920x1080).
Does the RoboSHOT 40 UHD support simultaneous 4K and HD outputs?
The camera provides HDMI, HDBaseT, 3G-SDI, and IP streaming simultaneously. The OneLINK Bridge Express converts the HDBaseT signal and adds USB 3.0 output, supporting up to 1080p60 over USB while the camera still outputs 4K over HDMI and SDI.
What is genlock and why does it matter?
Genlock synchronizes multiple cameras to a common reference signal, eliminating frame-rate conflicts in multi-camera production environments such as broadcast studios, houses of worship, and live events.
What cable infrastructure is required?
A single Cat 5e cable (up to 230 ft) or Cat 6 cable (up to 328 ft) runs from camera to the OneLINK Bridge Express, carrying power, video, and control.
Is this compatible with Zoom, Teams, or Cisco Webex?
Yes. The USB 3.0 output on the OneLINK Bridge Express presents as a UVC device compatible with any USB-based UC platform.
Is the RoboSHOT 40 UHD TAA compliant?
Yes. CE, FCC, and TAA certified, making it eligible for U.S. government and federal procurement.
What is included in the system?
RoboSHOT 40 UHD camera (white), Thin Profile Wall Mount with mounting hardware, Vaddio IR Remote Commander, OneLINK Bridge Express Interface, 48V power supply, 12V power supply, EZCamera RS-232 Control Adapter, 6 ft USB 3.0 cable (Type-A to B), 4x 3-position phoenix connectors, and Quick-Start Guides.
