Vaddio 999-99230-000 RoboSHOT 30E HDBT IP Camera System (Black)

Vaddio SKU: 999-99230-000
No reviews
Price:
$4,205.70 $4,673.00

Description

 

Data Sheet

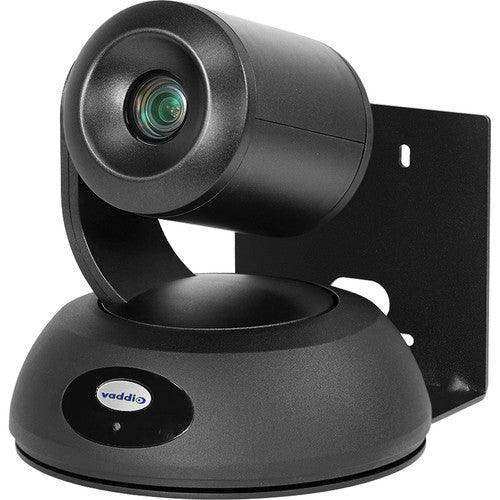

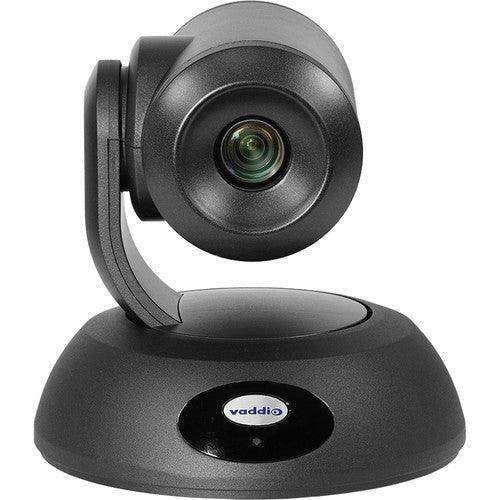

Capture full motion video in conference rooms, training rooms, and classrooms with the black RoboSHOT 30E HDBT IP Camera System from Vaddio. Designed with 30x total zoom and a 1/2.5" CMOS sensor, the camera delivers high-definition 1080p/60 video resolution. It features image signal processing and a wide dynamic range for enhanced lighting in dimly lit conditions. For smooth and natural motion, the camera features tri-synchronous motion technology allowing all three axes of the camera to move simultaneously. This camera can be controlled via integration-ready Telnet, serial RS-232 control, or an included IR remote control.

The RoboSHOT 12E provides a web-based user interface allowing configuration, management, and control from anywhere in the world over the IP network making this camera ideal for remote management, network operating centers, and overall IT control. Simply enter the camera's streaming URL into any standards-based H.264, RTSP format media player. This camera also allows you to simultaneously stream live events over YouTube, Livestream, and Facebook with the HDBaseT, HDMI, and IP video outputs. To simplify cabling and extend installation distance, you can connect it directly to HDBaseT-compatible devices or pair it with Vaddio OneLINK receivers.

 Simultaneous HDBT, HDMI, and IP (H.264) streaming outputs Full administrative control via web interface; manage remotely while monitoring the stream separately Aspect Ratio HDMI: 16:9 (all resolutions)
IP (H.264) streaming: 16:9, 3:2, and 4:3
  • Back-light compensation
  • Auto/manual gain
White Balance Auto, ATW, indoor, outdoor, one-push, manual
  • Wide dynamic range
  • Spotlight compensation mode
  • Noise reduction
  • 16 presets with custom home
  • Invertible
  • Silent BLDC direct-drive motors
  • Fast and Quiet Full HD PTZ Camera
  • 1/2.5" CMOS Image Sensor
  • 70.2° Wide Horizontal Field of View
  • 30x Total Zoom

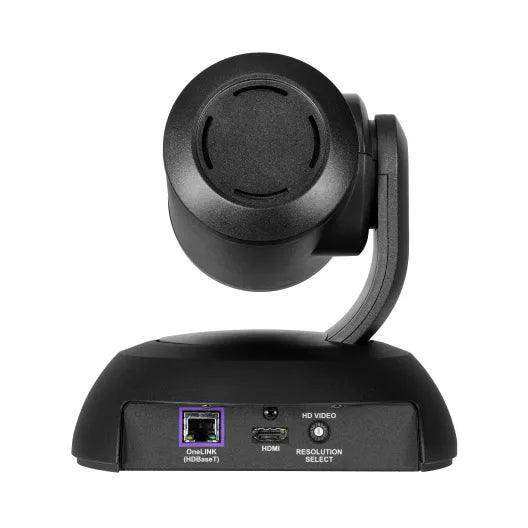

  • HDMI, HDBT, and RJ45 Connections
  • Telnet or Serial RS-232 Control
  • User-Friendly IR Remote Control Included

Vaddio RoboSHOT 30E Specs

 Imaging
Sensor Type 1/2.5"-Type CMOS Sensor
Sensor Resolution Effective: 8.51 Megapixel
Built-In ND Filter None
Focus Control Autofocus
Manual Focus
Exposure Control
Shutter Type Electronic Rolling Shutter
Shutter Speed 1/10000 to 1 Second
Gain 0 to 33 dB
Signal-to-Noise Ratio 50 dB
Minimum Illumination 1.6 Lux
Flip / Mirror Support Image Flip
White Balance Presets: ATW, Auto, Indoors, Manual, One Push, Outdoors
Lens
Focal Length 4.4 to 88.4mm
Optical Zoom Ratio 20x
Max Digital Zoom 1.5x
Field of View Horizontal: 70.2 to 3.1°
Maximum Aperture f/2 to 3.8
Minimum Focus Distance Wide: 3.1" / 8.0 cm
Telephoto: 31.5" / 80.0 cm
Video Capture
External Recording Modes HDMI / RJ45
1920 x 1080p at 25/29.97/30.00/50/59.94/60.00 fps
1920 x 1080i at 50/59.94/60.00 fps
1280 x 720 at 50/59.94/60.00 fps
Broadcast Output NTSC/PAL
IP Streaming H.264, RTMP, RTSP
1920 x 1080 to 352 x 240
Control
Presets 16
Move Speed Pan: 0.35 to 120°/sec
Tilt: 0.35 to 120°/sec
Movement Range Pan: 320° (-160 to 160°)
Tilt: 120° (-30 to 90°)
Supported Control Protocols IP
IR
RS-232
Interface
Video I/O 1 x RJ45 (HDBaseT) Output
1 x HDMI Output
Other I/O 1 x RJ45 Control Input (Shared with Power Input, Video Output)
Power
PoE Support PoE+ 802.3at
Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
Storage Temperature 32 to 104°F / 0 to 40°C
Operating Humidity 20 to 80%
Storage Humidity 20 to 80%
General
Certifications CE, FCC, TAA
*as per Manufacturer
Dimensions (W x H x D) 7.05 x 6.94 x 6.75" / 17.91 x 17.63 x 17.14 cm
Weight 4.85 lb / 2.2 kg
Packaging Info
Package Weight 10.345 lb
Box Dimensions (LxWxH) 13.5 x 12.2 x 12.1"
