Vaddio RoboSHOT 30E QDVI PTZ Camera System (Black) - 999-99160-000

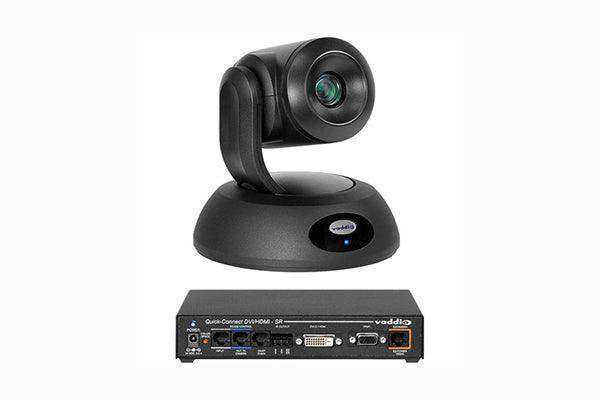

Vaddio RoboSHOT 30E QDVI System (Black) — 999-99160-000
The RoboSHOT 30E QDVI System pairs the RoboSHOT 30E Elite Series PTZ camera with the Quick-Connect DVI interface for high-resolution AV distribution over structured cabling. Power, video, and control travel over two Cat-5 cables up to 100 ft, delivering simultaneous DVI-D, HDMI, and HD YPbPr component outputs at the interface.
Description
The RoboSHOT 30E Elite Series camera delivers crisp 1080p/60 video from a 1/2.5-type Exmor R CMOS sensor. Thirty-times optical zoom spans from a 70.2° horizontal field of view at wide angle to 2.5° at full telephoto — ideal for large auditoriums, lecture halls, and broadcast studios where the camera is mounted far from the displays or recorders it feeds.
The Quick-Connect DVI interface extends the camera over two Cat-5 cables up to 100 ft (30.5 m), delivering simultaneous HDMI, DVI-D, and HD YPbPr component outputs. Both drop-frame and non-drop-frame HD video formats are supported. This system is well suited for AV distribution systems built around DVI or component switching infrastructure.
Key Features
- 30x optical zoom, 1/2.5-type Exmor R CMOS sensor
- 70.2° HFOV (wide) to 2.5° HFOV (tele); 1080p/60 HD video
- Power + video + control over two Cat-5 cables up to 100 ft (30.5 m)
- Simultaneous DVI-D, HDMI, and HD YPbPr component outputs
- Supports drop-frame and non-drop-frame HD video formats
- 99 preset positions, remote IP management via web interface
- Finish: black camera with Quick-Connect DVI interface
Typical Applications
AV systems built on DVI or component switching infrastructure: university auditoriums, government chambers, broadcast studios, and corporate training centers that distribute camera video to multiple displays or recorders via DVI or HD component switching.
Technical Specifications
| Model Number | 999-99160-000 |
| Color | Black |
| Image Sensor | 1/2.5-type Exmor R CMOS |
| Max Resolution | 1080p/60 |
| Optical Zoom | 30x |
| Horizontal FOV | 70.2° (wide) to 2.5° (tele) |
| Interface | Quick-Connect DVI |
| Extension Distance | Up to 100 ft (30.5 m) over two Cat-5 cables |
| Video Outputs | DVI-D, HDMI, HD YPbPr Component |
| Frame Formats | Drop-frame and non-drop-frame HD |
| Preset Positions | 99 |
| Control | Web UI, RS-232, IP |
Frequently Asked Questions
What is the difference between the QDVI and QUSB systems?
The QDVI provides DVI-D, HDMI, and HD YPbPr for AV distribution to displays and recorders. The QUSB adds a USB 2.0 UVC output for soft-client conferencing. Both run over two Cat-5 cables up to 100 ft.
Where can I purchase this product?
Available at creationnetworks.net.
