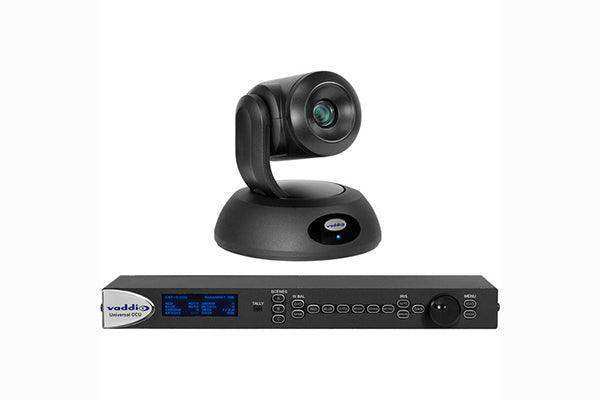

Vaddio RoboSHOT 30E QCCU PTZ Camera System (Black) - 999-99170-000
Vaddio RoboSHOT 30E QCCU System (Black) — 999-99170-000
The RoboSHOT 30E QCCU System pairs the RoboSHOT 30E Elite Series PTZ camera with the Quick-Connect CCU interface for integration with broadcast camera control units and production switchers. Power, video, and RS-422 camera control travel over two Cat-5 cables up to 100 ft, delivering full HD 1080p/60 for broadcast and live production environments.
Description
The RoboSHOT 30E Elite Series camera delivers crisp 1080p/60 video from a 1/2.5-type Exmor R CMOS sensor. Thirty-times optical zoom spans from a 70.2° horizontal field of view at wide angle to 2.5° at full telephoto — making it a natural choice for large auditoriums, theaters, and broadcast studios where the camera is mounted far from talent.
The Quick-Connect CCU interface provides the RS-422 tally and camera control signals expected by traditional broadcast production gear. It distributes power, HD component video (YPbPr), and HDMI output over two Cat-5 cables up to 100 ft (30.5 m) from the camera. This architecture fits existing CCU-based production workflows without additional control system programming.
Key Features
- 30x optical zoom, 1/2.5-type Exmor R CMOS sensor
- 70.2° HFOV (wide) to 2.5° HFOV (tele); 1080p/60 HD video
- Power + video + RS-422 control over two Cat-5 cables up to 100 ft (30.5 m)
- HDMI and HD YPbPr component video outputs
- RS-422 tally and CCU camera control for broadcast production switchers
- 99 preset positions, remote IP management via web interface
- Finish: black camera with Quick-Connect CCU interface
Typical Applications
Broadcast studios, live production environments, university sports complexes, courtrooms, and government chambers where RS-422 tally and CCU-based camera control are required. Compatible with production switchers from Grass Valley, Ross Video, and similar broadcast manufacturers.
Technical Specifications
| Model Number | 999-99170-000 |
| Color | Black |
| Image Sensor | 1/2.5-type Exmor R CMOS |
| Max Resolution | 1080p/60 |
| Optical Zoom | 30x |
| Horizontal FOV | 70.2° (wide) to 2.5° (tele) |
| Interface | Quick-Connect CCU |
| Extension Distance | Up to 100 ft (30.5 m) over two Cat-5 cables |
| Video Outputs | HDMI, HD YPbPr Component |
| Camera Control | RS-422 tally and CCU control |
| Preset Positions | 99 |
| Control | Web UI, RS-422, IP |
Frequently Asked Questions
What is the QCCU interface used for?
The Quick-Connect CCU provides RS-422 tally signals and camera control compatible with traditional broadcast production switchers and camera control units. It is used in live production environments where the camera must integrate with a broadcast CCU.
How does the QCCU differ from QDVI or QMini?
QCCU provides RS-422 tally and CCU integration for broadcast gear. QDVI provides DVI-D and HD YPbPr for AV distribution. QMini provides USB 2.0 UVC for soft-client conferencing. All run over two Cat-5 cables up to 100 ft.
Where can I purchase this product?
Available at creationnetworks.net.
