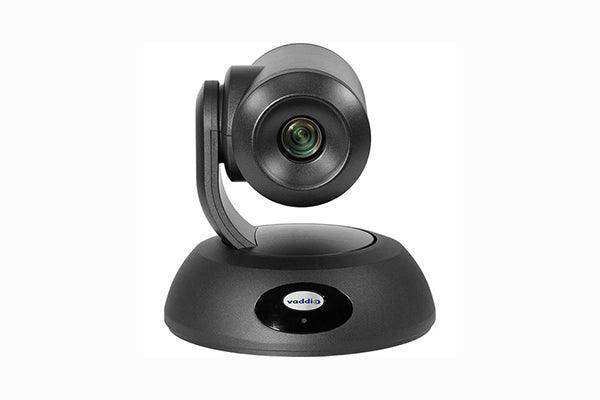

Vaddio RoboSHOT 30E HDBT PTZ Camera (Black) - 30x HDBaseT Conference Camera

Product Overview

The Vaddio RoboSHOT 30E HDBT (Black) is a professional PTZ camera for large meeting rooms, auditoriums, lecture halls, and houses of worship where long focal-range capture is essential. It delivers 30x optical zoom with simultaneous HDBaseT, HDMI, and IP H.264 streaming outputs, giving AV integrators maximum flexibility in signal distribution. The 1/2.5-type Sony Exmor R CMOS sensor and 70.2° horizontal field of view produce sharp, broadcast-quality HD video across a wide coverage area. As a standalone HDBaseT camera, the RoboSHOT 30E HDBT (Black) is designed for use with Vaddio OneLINK extension systems, AV Bridge encoders, and third-party HDBaseT-compatible AV infrastructure.

Product Description

The RoboSHOT 30E HDBT is Vaddio's top-tier PTZ camera for large-room AV integration. The 30x optical zoom provides the reach needed to cover a full auditorium stage, a large boardroom table, or the front of a lecture hall from a rear or side wall mount — distances where lower-zoom cameras produce inadequate framing. The 70.2° HFOV ensures wide coverage when zoomed out, giving operators a practical range from full-room overview to tight close-up without repositioning.

Three simultaneous output types — HDBaseT, HDMI, and IP H.264 — allow the camera to feed a local display or codec over HDMI while simultaneously streaming to soft clients, capture systems, or remote viewers over IP. This multi-output capability reduces system complexity in live production, lecture capture, and hybrid meeting environments where both local and remote audiences must be served from a single camera source.

The HDBaseT output connects to Vaddio OneLINK systems for single-cable camera extension, routing power, video, and control over a single Cat-5e or Cat-6 run to the AV rack. This simplifies permanent room installations and reduces conduit requirements compared to running separate signal and power cables. Remote IP management via embedded web server gives AV technicians full control over camera settings, presets, and firmware from any networked device.

The RoboSHOT 30E HDBT is available in black for installations where a dark-finish camera matches the room’s ceiling or mounting surface. For white-finish installations, see the RoboSHOT 30E HDBT in white. For complete systems including OneLINK extension, see the OneLINK Bridge and OneLINK HDMI system bundles available at Creation Networks.

Key Features

• 30x Optical Zoom - Long-range zoom for auditoriums, large conference rooms, and lecture halls where extended subject-to-camera distances are the norm.
• 70.2° Horizontal Field of View - Wide coverage enables full-room overview shots and telephoto close-ups from the same camera position.
• 1/2.5-Type Sony Exmor R CMOS Sensor - Backlit CMOS sensor delivers sharp, low-noise HD video in typical commercial AV lighting conditions.
• Simultaneous HDBaseT, HDMI, and IP H.264 Streaming - Three concurrent outputs support local display, codec connection, and network streaming without additional signal hardware.
• HDBaseT Output - Pairs with Vaddio OneLINK systems for single-cable power, video, and control extension over Cat-5e/6.
• Remote IP Management - Embedded web server provides full camera control and preset management from any networked device.
• Compatible with OneLINK Extension Systems - Works with Vaddio OneLINK Bridge and OneLINK HDMI receivers for clean, permanent room AV installations.
• Black Finish - Suitable for dark-colored ceiling and wall mounting applications where camera aesthetics are a consideration.

Typical Applications

• Auditoriums and large lecture halls
• Houses of worship with IMAG or live streaming requirements
• Large corporate boardrooms and executive conference rooms
• Government chambers and council meeting rooms
• Broadcast studios and live production environments
• Distance learning facilities requiring long-range camera capture

Technical Specifications

Frequently Asked Questions

What extension system does the RoboSHOT 30E HDBT require?
The 999-99630-000 is a standalone camera. It connects via HDBaseT to a Vaddio OneLINK receiver or compatible HDBaseT extender. For complete system bundles, see the RoboSHOT 30E HDBT OneLINK HDMI or OneLINK Bridge systems.

How does the 30E differ from the 12E HDBT?
The 30E provides 30x optical zoom for large rooms and long-range applications; the 12E (12x zoom) is optimized for standard conference rooms and medium-sized spaces. Both share the same HDBaseT connectivity and sensor type.

Can this camera be used with Zoom, Teams, or Webex?
Yes, when paired with a Vaddio OneLINK Bridge receiver, which provides USB 3.0 output for direct PC connection to soft clients. The OneLINK HDMI outputs HDMI and IP H.264 for hardware codecs and streaming platforms.

What network management is available?
The embedded web server provides pan, tilt, zoom, focus, preset configuration, IP settings, and firmware updates from any browser on the same network.

What warranty does this product carry?
Vaddio commercial AV products carry a standard limited warranty. Contact Creation Networks for warranty terms and service options.
