Vaddio RoboSHOT 20 UHD OneLINK HDMI PTZ Camera System (White) - 999-9950-100W
Vaddio RoboSHOT 20 UHD OneLINK HDMI PTZ Camera System (White) - 999-9950-100W is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Vaddio RoboSHOT 20 UHD OneLINK HDMI PTZ Camera System (White) - 999...
Vaddio RoboSHOT 20 UHD OneLINK HDMI System (White) — 999-9950-100W

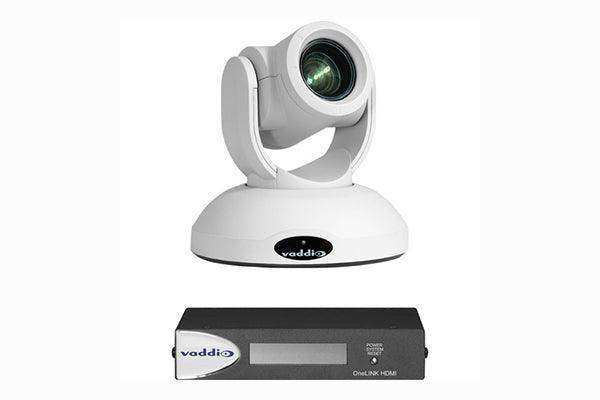

The RoboSHOT 20 UHD OneLINK HDMI System combines Vaddio's 4K broadcast PTZ camera with the OneLINK HDMI Receiver for single-cable installation. Power, video, and control travel over one Cat-5e or Cat-6 cable, and the receiver delivers HDMI output and IP streaming at the AV rack. The white finish blends into standard commercial ceilings and drop-tile environments.
Description
The RoboSHOT 20 UHD produces native 2160p/30 (3840×2160) video from a 9.03-megapixel back-illuminated 1/2.3-type sensor. Twenty-times optical zoom spans from 74° HFOV at wide angle to 4.8° at full telephoto — covering everything from a nearby presenter to a distant auditorium stage from one fixed ceiling mount.
The OneLINK HDMI Receiver extends power, video, and RS-232 control over a single Cat-5e cable up to 230 ft (70 m) or Cat-6 up to 328 ft (100 m). HDMI output feeds displays, video matrices, or hardware codecs. IP H.264 streaming supports recording or remote viewing.
Key Features
- 4K UHD 2160p/30 from a 9.03 MP back-illuminated 1/2.3-type CMOS sensor
- 20x optical zoom — 74° HFOV (wide) to 4.8° HFOV (tele)
- Precise pan (0.35°–120°/sec) and tilt (0.35°–100°/sec)
- Single-cable run: power + video + control over Cat-5e to 230 ft or Cat-6 to 328 ft
- HDMI and IP H.264 streaming outputs at the receiver
- 99 preset positions, web-based management interface
- Finish: white camera with white wall mount
Typical Applications
Large conference rooms and boardrooms with white ceiling-mounted cameras, feeding hardware video codecs, video matrix switchers, or displays. Also used in corporate broadcast studios, lecture halls, courtrooms, and legislative chambers.
Technical Specifications
| Model Number | 999-9950-100W |
| Color | White |
| Image Sensor | 9.03 MP, 1/2.3-type back-illuminated CMOS |
| Max Resolution | 2160p/30 (3840×2160 UHD) |
| Optical Zoom | 20x |
| Horizontal FOV | 74° (wide) to 4.8° (tele) |
| Pan Speed | 0.35°–120°/sec |
| Tilt Speed | 0.35°–100°/sec |
| Extension | OneLINK HDMI (HDBaseT) |
| Max Distance | 230 ft / 70 m (Cat-5e) · 328 ft / 100 m (Cat-6) |
| Video Outputs | HDMI, IP H.264 Streaming |
| Preset Positions | 99 |
| Control | Web UI, IR Remote, RS-232, IP |
| In the Box | RoboSHOT 20 UHD camera (white), OneLINK HDMI Receiver, 12V + 48V power supplies, Thin Profile Wall Mount (white), IR Remote Commander, EZCamera RS-232 Control Adapter |
Frequently Asked Questions
What is the difference between the OneLINK HDMI and OneLINK Bridge systems?
OneLINK HDMI provides HDMI and IP streaming. The OneLINK Bridge adds USB 3.0 and AEC audio matrix for direct soft-client conferencing. Choose OneLINK HDMI for hardware codec installs; choose OneLINK Bridge for Zoom/Teams/Webex.
Where can I purchase this product?
Available at creationnetworks.net.
