Vaddio RoboSHOT 20 UHD OneLINK HDMI PTZ Camera System (Black) - 999-9950-100B
Vaddio RoboSHOT 20 UHD OneLINK HDMI PTZ Camera System (Black) - 999-9950-100B is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Vaddio RoboSHOT 20 UHD OneLINK HDMI PTZ Camera System (Black) - 999...
Vaddio RoboSHOT 20 UHD OneLINK HDMI System (Black) — 999-9950-100B

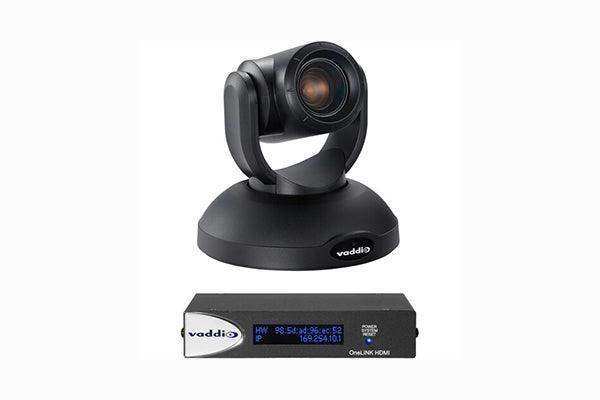

The RoboSHOT 20 UHD OneLINK HDMI System combines Vaddio's 4K broadcast PTZ camera with the OneLINK HDMI Receiver for clean single-cable installation. Power, video, and control run over one Cat-5e or Cat-6 cable, and the receiver surfaces HDMI output and IP streaming at the AV rack — suitable for rooms feeding hardware codecs, video matrices, or large displays.
Description
The RoboSHOT 20 UHD produces native 2160p/30 (3840×2160) video from a 9.03-megapixel back-illuminated 1/2.3-type sensor. Its 20x optical zoom spans from a 74° horizontal field of view at wide angle down to 4.8° at full telephoto — covering distances from a nearby boardroom table to a distant auditorium stage from one fixed ceiling mount.
The OneLINK HDMI Receiver extends power, video, and RS-232 control over a single Cat-5e cable up to 230 ft (70 m) or Cat-6 up to 328 ft (100 m). HDMI output at the receiver feeds displays, video matrices, or hardware codecs. IP H.264 streaming supports recording or remote viewing. This system is a natural choice when the downstream device handles audio bridging internally, such as a Cisco, Poly, or Crestron codec.
Key Features
- 4K UHD 2160p/30 from a 9.03 MP back-illuminated 1/2.3-type CMOS sensor
- 20x optical zoom — 74° HFOV (wide) to 4.8° HFOV (tele)
- Precise pan (0.35°–120°/sec) and tilt (0.35°–100°/sec)
- Single-cable run: power + video + control over Cat-5e to 230 ft or Cat-6 to 328 ft
- HDMI and IP H.264 streaming outputs at the receiver
- Web-based management interface for remote administration
- 99 preset positions, IR remote control included
- Finish: black camera with black wall mount
Typical Applications
Large conference rooms and boardrooms feeding hardware video codecs (Cisco, Poly, LifeSize), video matrix switchers, or display systems. Also suits corporate broadcast studios, lecture halls, courtrooms, and city council chambers where HDMI output at the rack is the primary requirement.
Technical Specifications
| Model Number | 999-9950-100B |
| Color | Black |
| Image Sensor | 9.03 MP, 1/2.3-type back-illuminated CMOS |
| Max Resolution | 2160p/30 (3840×2160 UHD) |
| Optical Zoom | 20x |
| Horizontal FOV | 74° (wide) to 4.8° (tele) |
| Pan Speed | 0.35°–120°/sec |
| Tilt Speed | 0.35°–100°/sec |
| Extension | OneLINK HDMI (HDBaseT) |
| Max Distance | 230 ft / 70 m (Cat-5e) · 328 ft / 100 m (Cat-6) |
| Video Outputs | HDMI, IP H.264 Streaming |
| Preset Positions | 99 |
| Control | Web UI, IR Remote, RS-232, IP |
| In the Box | RoboSHOT 20 UHD camera (black), OneLINK HDMI Receiver, 12V + 48V power supplies, Thin Profile Wall Mount (black), IR Remote Commander, EZCamera RS-232 Control Adapter |
Frequently Asked Questions
What is the difference between the OneLINK HDMI and OneLINK Bridge systems?
The OneLINK HDMI provides HDMI and IP streaming at the receiver. The OneLINK Bridge adds USB 3.0 and a configurable audio matrix with AEC for direct soft-client conferencing. Choose OneLINK HDMI when feeding a hardware codec; choose OneLINK Bridge for Zoom/Teams/Webex.
Is this compatible with 4K displays?
Yes. The HDMI output carries up to 2160p/30.
Where can I purchase this product?
Available at creationnetworks.net.
