Vaddio RoboSHOT 20 UHD OneLINK HDMI - 4K PTZ Camera System (Black)

Product Overview

The Vaddio RoboSHOT 20 UHD OneLINK HDMI System (Black) is a 4K UHD PTZ conference camera system for medium to large commercial AV deployments including lecture halls, corporate broadcast facilities, and houses of worship. The system pairs the RoboSHOT 20 Ultra HD camera with the OneLINK HDMI interface for clean, single-cable camera extension over Cat-5e or Cat-6 up to 328 ft. Simultaneous HD-SDI, HDMI, HDBaseT, and H.264 IP streaming outputs accommodate virtually any downstream recording, display, or conferencing system.

Product Description

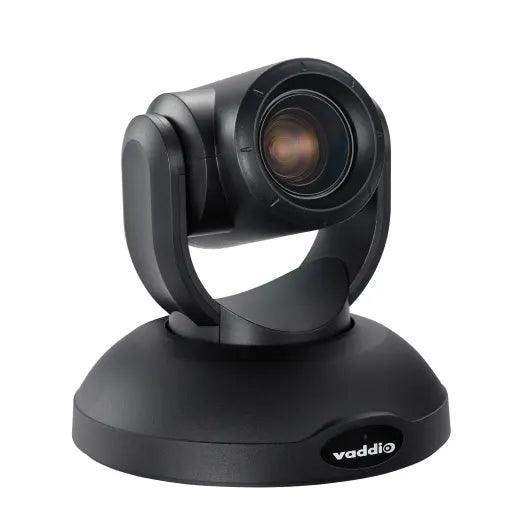

The RoboSHOT 20 UHD captures native 3840 x 2160 (2160p/30) video from a 9.03-megapixel back-illuminated 1/2.3-type Exmor R CMOS sensor. Back-illumination maximizes light capture for superior low-light performance—important for large rooms with uneven or dim lighting conditions. Total zoom range is 20x, combining a 12x optical lens with seamless 1.67x digital extension, giving integrators a 74° wide-angle field of view at the wide end for full-room coverage in one shot.

Pan and tilt performance reaches ±160° pan and +90°/–30° tilt at variable speeds from 0.35° to 120°/sec. Vaddio’s Tri-Synchronous Motion technology coordinates all three axes simultaneously, eliminating the sequential axis lag seen on lesser PTZ cameras and enabling fluid presenter tracking and scene transitions. This 4K PTZ camera for large conference rooms and lecture halls is designed for environments where camera movement is visible and smooth operation is required.

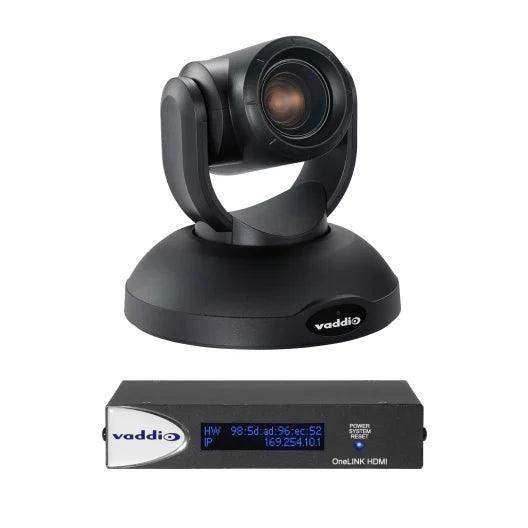

The included OneLINK HDMI Interface extends camera power, HD video, and RS-232 control over a single Cat-5e or Cat-6 cable from the camera head to the equipment rack—eliminating multi-cable runs through walls and ceilings. At the equipment end, the OneLINK HDMI provides HDMI and USB outputs for soft-client conferencing, alongside the HDBaseT extension signal. Full remote administration is available via web browser, with Telnet and RS-232 integration for Crestron, AMX, and similar control platforms.

Key Features

• 4K UHD Imaging - Back-illuminated 1/2.3-type Exmor R CMOS sensor delivers native 3840 × 2160 (2160p/30) without scaling or cropping.
• 20x Total Zoom - 12x optical zoom with seamless 1.67x digital extension; 74° HFOV wide to 4.8° tele.
• Simultaneous Multi-Output - Active outputs include 3 Gb/s HD-SDI, HDMI, HDBaseT, and H.264 IP streaming simultaneously.
• Single-Cable OneLINK HDMI Extension - Cat-5e up to 230 ft. (70m) or Cat-6 up to 328 ft. (100m) carries power, video, and control.
• Tri-Synchronous Motion - Coordinated pan, tilt, and zoom movement at 0.35°–120°/sec for smooth presenter tracking.
• Wide Pan and Tilt Range - ±160° pan, +90°/–30° tilt for comprehensive room coverage from a fixed ceiling or wall mount.
• Enterprise Web Interface - Browser-based administration with Telnet and RS-232 for third-party control system integration.
• TAA Compliant - Eligible for GSA schedules and U.S. federal government procurement.
• 2-Year Limited Warranty - Vaddio commercial-grade warranty through Legrand AV.
• Complete System Bundle - Includes RoboSHOT 20 UHD camera, Thin Profile Wall Mount, IR remote, OneLINK HDMI Interface, 48V power supply, and EZCamera RS-232 adapter.

Typical Applications

• Conference rooms
• Lecture halls
• Houses of worship
• Broadcast studios
• All-hands rooms
• Training rooms
• Government spaces

Technical Specifications

Frequently Asked Questions

What is included in the 999-9950-100 system bundle?
The system includes the RoboSHOT 20 UHD camera (black), a Thin Profile Wall Mount with hardware, an IR Remote Commander, the OneLINK HDMI Interface, a 48V power supply with AC cord set, Quick-Start Guides, and an EZCamera RS-232 Control Adapter.

What is the maximum cable distance between camera and OneLINK HDMI Interface?
The OneLINK HDMI supports cable runs up to 230 ft. (70m) over Cat-5e, or up to 328 ft. (100m) over Cat-6.

Does the RoboSHOT 20 UHD support soft-client video conferencing?
Yes. The OneLINK HDMI Interface provides HDMI and USB outputs compatible with soft-client conferencing platforms. Simultaneous outputs allow the camera to feed both a local AV display and a software conferencing client at the same time.

Can this camera be integrated with Crestron, AMX, or Q-SYS control systems?
Yes. The RoboSHOT 20 UHD supports Telnet (IP) and RS-232 serial control, both compatible with major commercial AV control systems.

Is the RoboSHOT 20 UHD TAA compliant for government procurement?
Yes. The RoboSHOT 20 UHD is TAA compliant, making it eligible for GSA schedules and U.S. federal government procurement programs.

Is a white version available?
Yes. The white version of the RoboSHOT 20 UHD OneLINK HDMI System is available at creationnetworks.net.

What is the warranty on this product?
The RoboSHOT 20 UHD includes a 2-year limited warranty from Vaddio/Legrand AV. Contact Creation Networks for warranty support.
