Vaddio RoboSHOT 20 UHD OneLINK Bridge System (White) - 4K Conference PTZ Camera

Product Overview

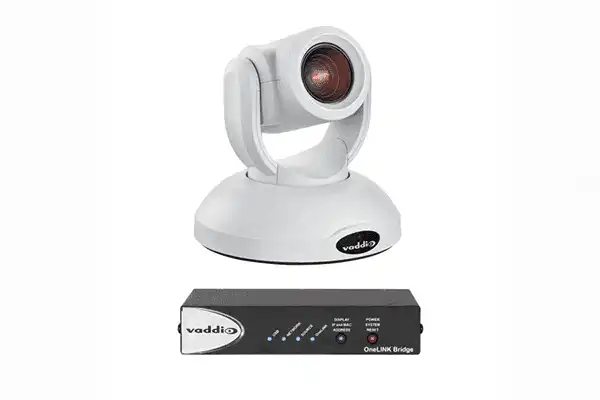

The Vaddio RoboSHOT 20 UHD OneLINK Bridge System (SKU: 999-9950-200W, White) is a professional 4K PTZ conference room camera system designed for medium to large spaces including corporate conference rooms, lecture halls, and houses of worship. The camera delivers native 4K (3840x2160) video at 30fps from a 1/2.3-type back-illuminated CMOS sensor with 9.03 total megapixels and 20x total zoom (12x optical, 1.67x digital transition). The OneLINK Bridge extends power, HDMI, Ethernet, and RS-232 over a single Cat-5e or Cat-6 cable, and provides USB 3.0 output for direct integration with Zoom, Teams, and other conferencing platforms.

Product Description

The RoboSHOT 20 UHD offers enterprise-class 4K PTZ performance for conference room and lecture hall deployments where installation simplicity and image quality are both priorities. Its 1/2.3-type Exmor R backside-illuminated CMOS sensor produces native UHD 4K at 30fps with a 74-degree wide horizontal field of view at the widest zoom setting—providing good room coverage without requiring extreme camera positioning. Minimum illumination of 3.0 lux (F1.8) ensures usable video in typical conference room lighting conditions.

The 20x total zoom range—12x optical transitioning smoothly to 1.67x digital—gives the camera enough reach for medium to large conference rooms and lecture halls without the cost premium of higher-zoom broadcast cameras. Silent BLDC direct-drive motors with Tri-Synchronous Motion deliver smooth, quiet pan-tilt-zoom operation, which is important in conference environments where mechanical PTZ noise would be noticeable to participants. The camera supports 16 preset positions plus a custom home position, enabling integrators to configure fixed scene recalls for common meeting configurations.

The OneLINK Bridge handles all HDBaseT extension, carrying HDMI, Ethernet, RS-232, and 48VDC power over a single Cat-5e cable (up to 230 ft) or Cat-6 cable (up to 328 ft) to the bridge unit. The bridge provides simultaneous HDMI, USB 3.0, IP streaming (RTSP H.264), and HD-SDI outputs, giving integrators flexibility in signal distribution without additional splitters or converters. The USB 3.0 output presents the camera as a USB UVC device for plug-and-play compatibility with all major UC platforms.

Key Features

• Native 4K Resolution - 1/2.3-type back-illuminated CMOS sensor delivers native 3840x2160 at 30fps for crisp, high-definition conference room video without scaling artifacts.
• 74-Degree Wide Field of View - Wide end FOV provides broad room coverage at short to moderate distances, reducing the need for extreme camera placement or wide-angle adapters.
• 20x Total Zoom - 12x optical with seamless 1.67x digital transition provides enough reach for medium to large conference rooms and lecture halls.
• Silent BLDC Motors with Tri-Sync Motion - Quiet direct-drive motors and Tri-Synchronous Motion algorithms produce smooth, inaudible PTZ movement in conference environments.
• OneLINK Bridge HDBaseT Extension - Single Cat-5e (230 ft) or Cat-6 (328 ft) cable carries power, HDMI, Ethernet, and RS-232 control, eliminating multi-cable camera runs.
• Simultaneous Multi-Format Outputs - Concurrent HDMI, USB 3.0, HD-SDI, and RTSP IP streaming for flexible signal distribution without additional splitter hardware.
• USB 3.0 UC Integration - Presents as a USB UVC device for plug-and-play compatibility with Zoom, Microsoft Teams, Cisco Webex, and other UC platforms.
• 16 Preset Positions - Store up to 16 camera positions plus a custom home for rapid scene recall in recurring meeting configurations.

Typical Applications

• Conference room (medium to large)
• Boardroom
• Lecture hall / training room
• House of worship
• All-hands room / multi-purpose room
• Government space / hearing room
• Commercial meeting space

Technical Specifications

Frequently Asked Questions

What room sizes is the RoboSHOT 20 UHD appropriate for?
The 20x zoom and 74-degree wide FOV make this camera well suited for medium to large conference rooms, lecture halls, and multipurpose spaces. For very large venues requiring 40x zoom and 4K genlock, see the RoboSHOT 40 UHD system at creationnetworks.net.

Is this camera compatible with Zoom, Microsoft Teams, or Cisco Webex?
Yes. The OneLINK Bridge provides a USB 3.0 output that presents as a standard USB UVC device, enabling plug-and-play compatibility with all major UC platforms on Windows and macOS without additional drivers.

What cabling does the OneLINK Bridge require?
A single Cat-5e cable (up to 230 ft/70m) or Cat-6 cable (up to 328 ft/100m) carries power, HDMI, Ethernet, and RS-232 control between the camera and the OneLINK Bridge. No separate power run to the camera location is needed.

Does this camera have HD-SDI output?
Yes. The OneLINK Bridge provides simultaneous HD-SDI (3G-SDI), HDMI, USB 3.0, and RTSP IP streaming outputs, making it compatible with SDI-based AV signal distribution infrastructure.

Is the camera invertible for ceiling mount?
Yes. The RoboSHOT 20 UHD supports inverted mounting for ceiling installation. The included Thin Profile Wall Mount and optional ceiling mounts are available at creationnetworks.net.

What is the warranty on this product?
Vaddio products carry a standard 2-year warranty. Contact Creation Networks for warranty service at creationnetworks.net.

Is there a black version of this camera?
Yes. The RoboSHOT 20 UHD is available in a silver/black finish as part of a comparable system. See all Vaddio camera options at creationnetworks.net/collections/vaddio.
