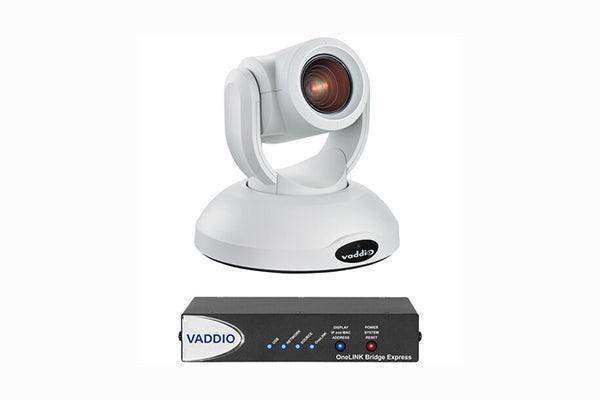

Vaddio RoboSHOT 20 UHD OneLINK Bridge Express PTZ Camera System (White) - 999-9950-270W

Vaddio RoboSHOT 20 UHD OneLINK Bridge Express System (White) — 999-9950-270W

The RoboSHOT 20 UHD OneLINK Bridge Express System pairs Vaddio's 4K broadcast PTZ camera with the OneLINK Bridge Express for single-cable installation. Power, video, and control travel over one Cat-5e or Cat-6 cable, and the Bridge Express delivers HDMI, USB 3.0, and IP streaming at the AV rack — ideal for conferencing rooms that need 4K quality and UCC integration without SDI output.

Description

The RoboSHOT 20 UHD delivers native 2160p/30 (3840×2160) video from a 9.03-megapixel back-illuminated 1/2.3-type sensor, producing image quality comparable to larger 3-chip cameras in a compact PTZ chassis. Its 20x optical zoom spans from a 74° horizontal field of view at wide angle down to 4.8° at full telephoto — reaching across a large lecture hall or boardroom from a single ceiling mount.

The OneLINK Bridge Express extends the camera over a single Cat-5e cable up to 230 ft (70 m) or Cat-6 up to 328 ft (100 m). At the head-end it delivers simultaneous HDMI, USB 3.0, and IP H.264 streaming. A configurable audio matrix with acoustic echo cancellation (AEC) handles room audio bridging for Zoom, Teams, and Webex. The USB 3.0 output presents the camera as a plug-and-play UVC device — no drivers needed.

Key Features

• 4K UHD 2160p/30 from a 9.03 MP back-illuminated 1/2.3-type CMOS sensor
• 20x optical zoom — 74° HFOV (wide) to 4.8° HFOV (tele)
• Precise pan (0.35°–120°/sec) and tilt (0.35°–100°/sec)
• Single-cable run: power + video + control over Cat-5e to 230 ft or Cat-6 to 328 ft
• Simultaneous HDMI, USB 3.0, and IP H.264 streaming outputs
• Configurable audio matrix with AEC for soft-client conferencing
• Up to 1080p/60 uncompressed over USB 3.0
• 99 preset positions, web-based management interface
• Finish: white camera with white wall mount

Typical Applications

Executive boardrooms, large conference rooms, training rooms, lecture halls, and house-of-worship installations where 4K quality and single-cable cabling are required and SDI distribution is not needed at the AV rack.

Technical Specifications

Frequently Asked Questions

What is the difference between Bridge Express and the full OneLINK Bridge?
The Bridge Express provides HDMI, USB 3.0, and IP streaming at the head-end. The full OneLINK Bridge adds a 3G-SDI output for broadcast distribution. Choose Bridge Express for conference room soft-codec installations; choose the full Bridge when SDI output to a switcher or recorder is required.

Is the USB output plug-and-play?
Yes. The USB 3.0 output presents the camera as a standard UVC device. Zoom, Teams, Webex, and most UCC platforms recognize it without additional drivers.

Where can I purchase this product?
Available at creationnetworks.net.
