Vaddio RoboSHOT 12E QCCU PTZ Camera System (Black) - 999-99070-000

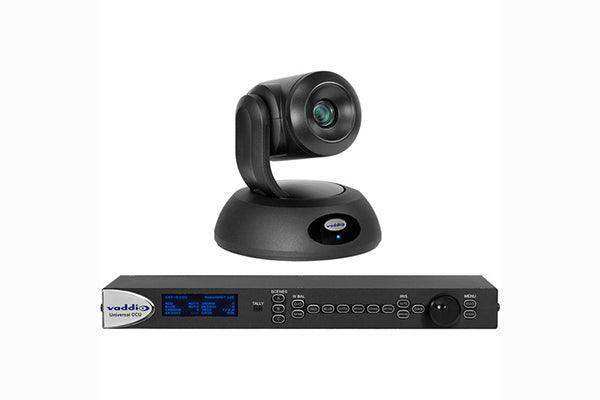

Vaddio RoboSHOT 12E QCCU System (Black) — 999-99070-000
The RoboSHOT 12E QCCU System pairs the RoboSHOT 12E Elite Series PTZ camera with the Quick-Connect CCU interface for broadcast camera control unit integration. Power, video, and RS-422 camera control travel over two Cat-5 cables up to 100 ft, delivering 1080p/60 HD video and CCU-compatible control signals for live production environments.
Description
The RoboSHOT 12E Elite Series camera delivers crisp 1080p/60 video from a 1/2.5-type Exmor R CMOS sensor. Twelve-times optical zoom spans from a 70.2° horizontal field of view at wide angle — suited for conference rooms and mid-size venues where a wide starting FOV is more useful than extreme reach. The wide-angle capability makes it effective in tight rooms where a 30x camera would over-zoom.
The Quick-Connect CCU interface provides RS-422 tally and camera control signals for traditional broadcast production gear. It distributes power, HD YPbPr component video, and HDMI output over two Cat-5 cables up to 100 ft (30.5 m), fitting existing CCU-based production workflows without additional control system programming.
Key Features
- 12x optical zoom, 1/2.5-type Exmor R CMOS sensor; 1080p/60 HD video
- 70.2° HFOV (wide)
- Power + video + RS-422 over two Cat-5 cables up to 100 ft (30.5 m)
- HDMI and HD YPbPr component video outputs
- RS-422 tally and CCU camera control
- 99 preset positions, web-based IP management
- Finish: black camera with Quick-Connect CCU interface
Technical Specifications
| Model Number | 999-99070-000 |
| Color | Black |
| Image Sensor | 1/2.5-type Exmor R CMOS |
| Max Resolution | 1080p/60 |
| Optical Zoom | 12x |
| Horizontal FOV | 70.2° (wide) |
| Interface | Quick-Connect CCU |
| Extension Distance | Up to 100 ft (30.5 m) over two Cat-5 cables |
| Video Outputs | HDMI, HD YPbPr Component |
| Camera Control | RS-422 tally and CCU control |
| Preset Positions | 99 |
