Vaddio RoboSHOT 12E HDBT OneLINK Bridge System for Cisco SX Codecs ...
Vaddio RoboSHOT 12E HDBT OneLINK Bridge System for Cisco SX Codecs — 999-96750-400

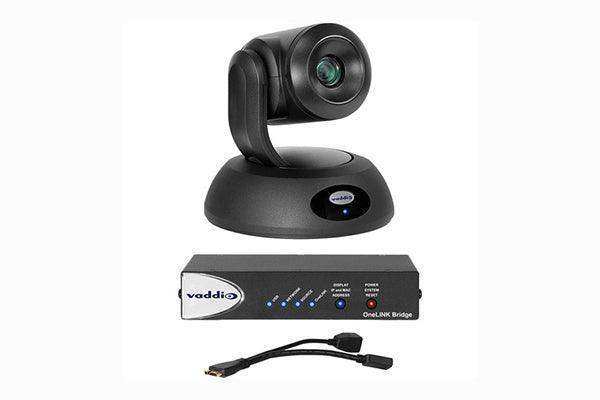

This bundled system combines the RoboSHOT 12E HDBT camera, OneLINK Bridge receiver, and Cisco SX codec cables into a pre-engineered integration kit for Cisco conferencing environments. Power, video, and control run over a single Cat-5e or Cat-6 cable, and the OneLINK Bridge bridges audio and video directly to the Cisco SX codec.
Description
The RoboSHOT 12E HDBT Elite Series camera delivers 1080p/60 HD video from a 1/2.5-type Exmor R CMOS sensor with 12x optical zoom and a 70.2° horizontal field of view. HDBaseT extends power, video, and control over a single Cat-5e cable up to 230 ft (70 m) or Cat-6 up to 328 ft (100 m).
The OneLINK Bridge provides simultaneous HDMI, USB 3.0, IP H.264 streaming, and 3G-SDI outputs at the head-end, along with a configurable audio matrix with AEC. Cisco SX codec cabling is included in this bundle, enabling direct connection to Cisco SX10, SX20, SX80, and compatible codecs without separate interface cables.
Key Features
- 12x optical zoom, 1/2.5-type Exmor R CMOS sensor; 1080p/60 HD video
- 70.2° HFOV (wide)
- Single-cable HDBaseT run: Cat-5e to 230 ft or Cat-6 to 328 ft
- Simultaneous HDMI, USB 3.0, IP H.264 streaming, and 3G-SDI outputs
- Configurable audio matrix with AEC
- Cisco SX codec cables included for direct integration
Typical Applications
Enterprise conference rooms, executive boardrooms, and training centers standardized on Cisco collaboration infrastructure (SX10, SX20, SX80, or compatible codecs) requiring a ceiling-mounted PTZ camera with clean single-cable installation.
Technical Specifications
| Model Number | 999-96750-400 |
| Image Sensor | 1/2.5-type Exmor R CMOS |
| Max Resolution | 1080p/60 |
| Optical Zoom | 12x |
| Horizontal FOV | 70.2° (wide) |
| Extension | OneLINK Bridge (HDBaseT) |
| Max Distance | 230 ft / 70 m (Cat-5e) · 328 ft / 100 m (Cat-6) |
| Video Outputs | HDMI, USB 3.0, IP H.264 Streaming, 3G-SDI |
| Audio | Configurable matrix with AEC |
| Codec Compatibility | Cisco SX10, SX20, SX80 and compatible |
